Description

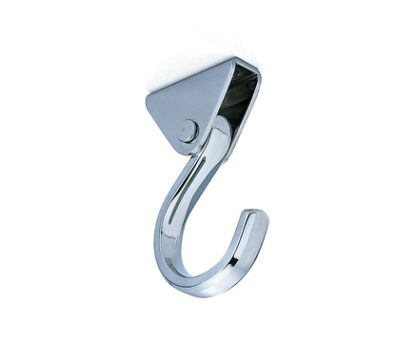

Movable weather-resistant heavy-duty hook, made of stainless steel (V2A), finish: matt and polished, XL-JSF40TT, size: 55.5 mm (2.2″)
Application:
Stainless steel hooks for wall, ceiling, bathroom, outdoor area, swimming pool and much more.
The XL-JSF40TT heavy-duty hook can rotate 180° in both directions.
The high-quality XL-JSF40TT heavy-duty hooks can be mounted on a wall as well as under the ceiling or under a shelf.
The high-quality XL-JSF40TT heavy-duty hooks are ideal for, among other things:
- Hobby room
- Garage
- Wall
- Ceiling
- bathroom
- outdoor area
- Swimming pool
Material:
- The XL-JSF40TT heavy-duty hooks are made of stainless steel (V2A)
Surface:
- Matt and polished
- The surface is partly high-gloss and partly satin-finished matt, creating unique optical and haptic effects
Assembly:
- The fastening is done using the screws included in the scope of delivery (pan head screw, self-tapping 4 x 20 mm)
- The fastening screws are also made of stainless steel
- The XL-JSF40TT stainless steel hook has two mounting holes with a diameter of ⌀4.2 mm (11/64″)
- The distance between the mounting holes is 25 mm (63/64″)
Features:
- Weight: 70 g
- Load capacity: 490 N (50 kp)
- Size: 55.5 mm (2.2″)
- Practical
- Material thickness: 10 mm (25/64″) x 6 mm (15/64″)
- matt and polished
- weatherproof
- Stainless (corrosion-free)
- high brand quality of Sugatsune / LAMP®
For further dimensions and details see technical drawing .
The dimensions:
- Heavy Duty Hook Size: ⌀55.5mm (2-3/16″)
- Depth: 43 mm (1-11/16″)
- Mounting Bracket Size: 38 mm (1-1/2″)
- Mounting plate diameter: ⌀43 mm (1-11/16″)
Included in delivery:
- One piece of heavy-duty hook XL-JSF40TT made of stainless steel, matt and polished
- Two pieces pan head screw, self-tapping 4 x 20 mm made of stainless steel
Watch product video:
Manufacturer’s reference number:
- Article ID: 110-020-011
- Item number: XL-JSF40TT
- EAN number: 4510932001229
Manufacturer: Sugatsune / LAMP® (Japan)
