High-quality rectangular handle shell for quick click mounting in sheet metal housing made of robust plastic, surface: black, 90 mm (3.6″) HH-JW90-BL. Device handle HH-JW90-BL for metal cabinets, sheet metal housings, by Sugatsune / LAMP® (Japan)

Description

High-quality housing handle shell made of robust plastic, surface: black, HH-JW90-BL

Application:

Device handle HH-JW90-BL for metal cabinets, sheet metal housing.



Thanks to clip mounting, the high-quality HH-JW90-BL housing handle shells can be fastened quickly and securely to surfaces made of sheet metal without tools.

The HH-JW90-BL device handle is ideal for:

• Electrical appliances
• Machines
• Industrial plants
• Metal cabinets
• Sheet metal housing

Material:

• The high-quality housing handle shells HH-JW90-BL are made of ABS and polycarbonate (plastic)

Surface:

• Black

Assembly:

• The housing handle shell HH-JW90-BL is designed for quick mounting in sheet metal
• For mounting, a cut-out in the front with a width (W3) of 46 mm (1-13/16″) must be made
• For the height of the section see the table below

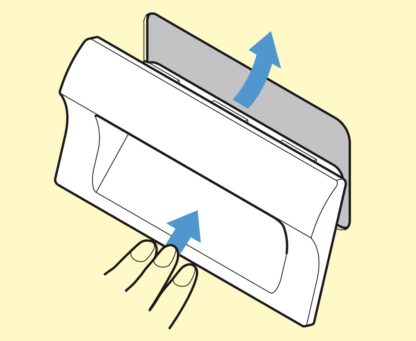

• The device handle HH-JW90-BL is then pressed into the prepared cut-out in the sheet metal and with a “click” it is securely fastened (for further details see
  assembly drawing
  )



Features:

• Weight: 21 g
• Size: 90mm (3.6″)
• Quick tool-free assembly
• Elaborately processed
• Ergonomic
• Stable
• Solid
• Robust
• Black
• High brand quality of Sugatsune / LAMP®

The dimensions:

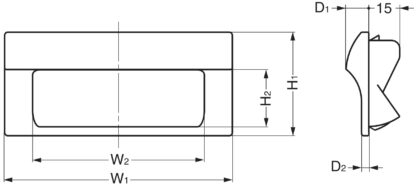

For further dimensions and details see technical drawing .

• Shell Width (W1): 90 mm (3-35/64″)
• Height (H1): 44 mm (1-47/64″)
• Width of grip area (W2): 63 mm (2-31/64″)
• Height of grip area (H2): 22.9 mm (29/32″)
• Grip Area Depth: 19/32″ (15 mm)



Included in delivery:

• 1 piece housing handle shell HH-JW90-BL made of robust plastic, black

Manufacturer’s reference number:

• Article ID: 100-024-583
• Item number: HH-JW90-BL
• EAN number: 4510932043090

Manufacturer: Sugatsune / LAMP® (Japan)
