Description
High-quality grip shell made of robust plastic, surface: black, HH-JS110-BL
Application:
Furniture handle HH-JS110-BL for sheet metal, wood, drawer, metal cabinet, wooden cabinet, office furniture, bedroom furniture.
The high-quality handle shells HH-JS110-BL are ideal for:
- Living room furniture
- Kitchen furniture
- Sheet metal
- Wood
- Drawer
- Metal cabinet
- Wooden cabinet
- Office furniture
- Bedroom
Material:
- The high-quality handle shells HH-JS110-BL are made of ABS and polycarbonate (plastic)
- Spacer: made of steel
Surface:
- Black

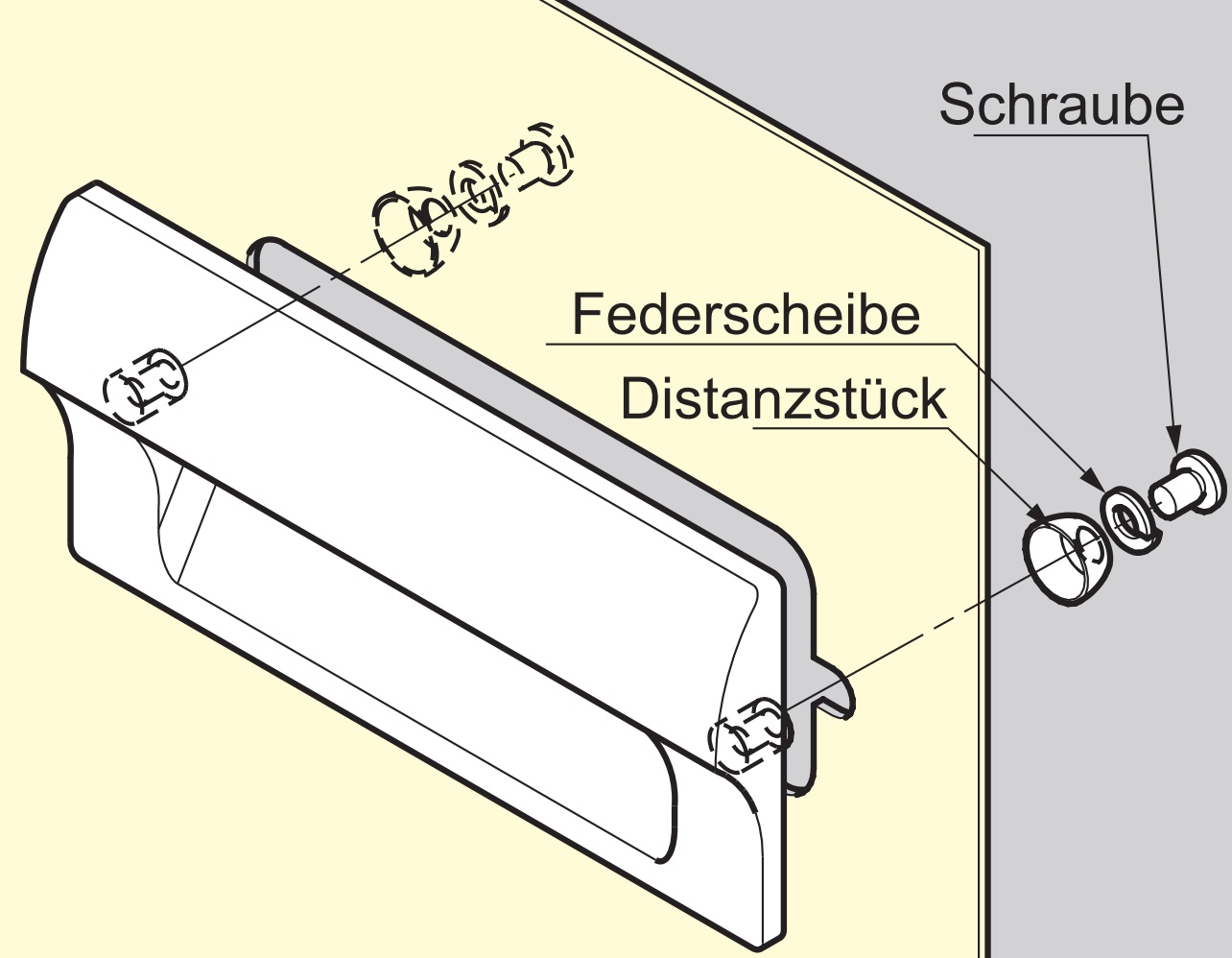

Assembly:
- The fastening is done using the screws included in the scope of delivery (lens countersunk screw M4 x 10 mm)
- For mounting, a cut-out in the front measuring 90 mm (3-35/64″) x 36 mm (1-27/64″) must be made
- The depth of the cut-out is 12 mm (15/32″) (only relevant for mounting in wood)
- In addition, two holes with a diameter of Φ6.5 mm must be made for the screws spaced 96 mm (3-25/32″)
- When mounted in sheet metal, the two spacers included in the scope of delivery must be used
- When mounting in wood, the mounting holes must be made according to the drawing (for further details see
mounting drawing
)
Features:
- Weight: 38 g
- Size: 110mm (4.4″)
- Elaborately processed
- Ergonomic
- Stable
- Solid
- Robust
- Black
- High brand quality of Sugatsune / LAMP®
Dimensions:

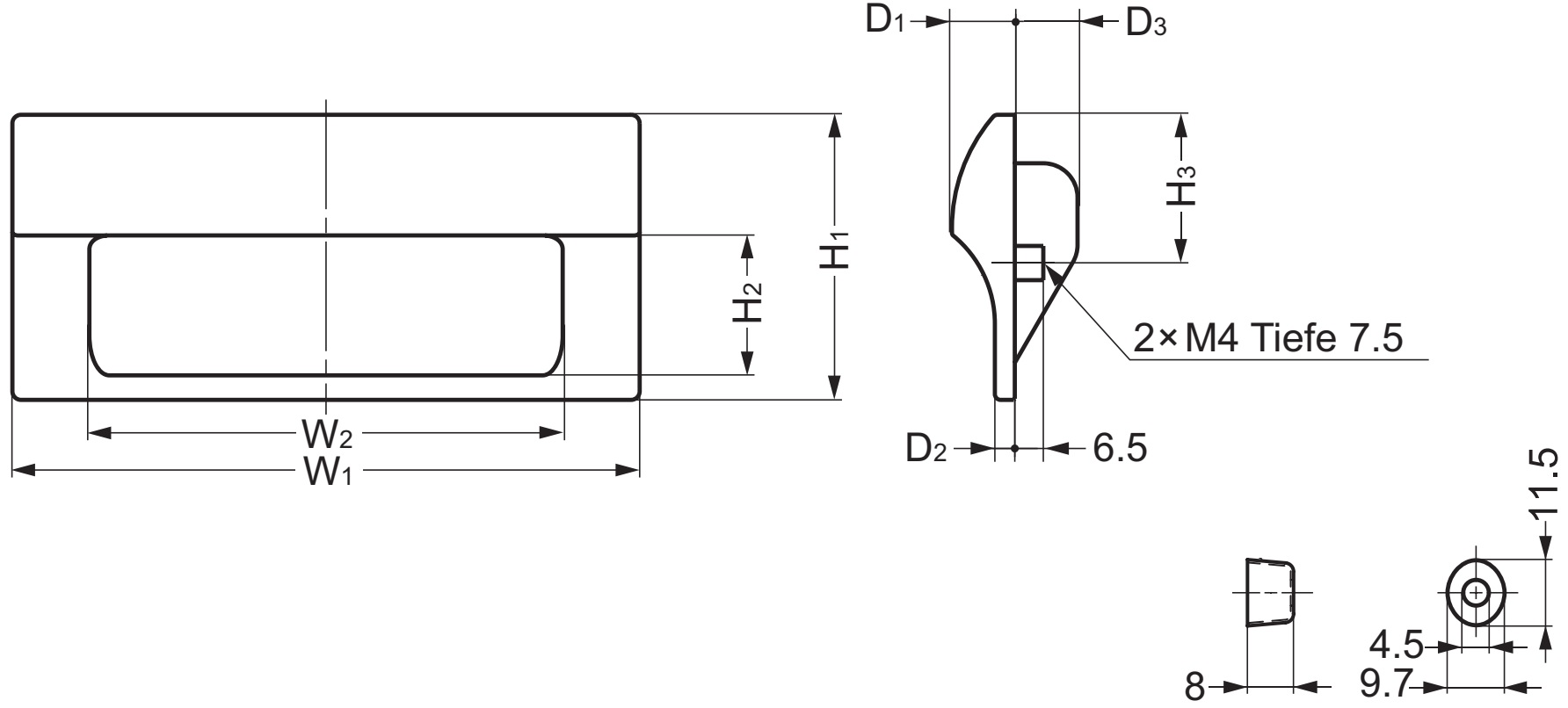

For further dimensions and details see technical drawing .
- Width of grip shell (L): 110 mm (4-21/64″)
- Height: 50mm (1-31/32″)
- Grip Area Depth: 11 mm (7/16″)

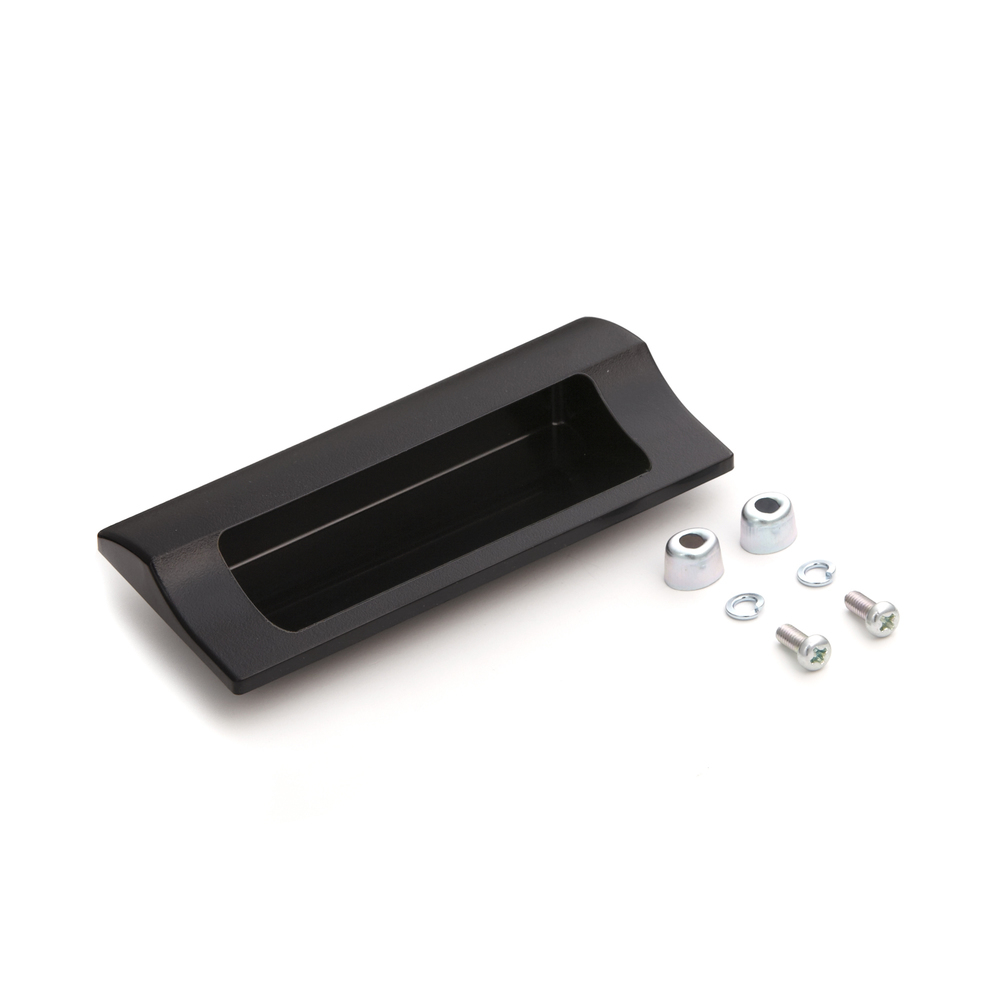

Included in delivery:
- 1 piece grip shell HH-JS110-BL made of robust plastic, black
- 2 pieces countersunk screw M4 x 10 mm made of steel
- 2 pieces spacer for sheet metal, 8 mm high
- 2 pieces spring disc
Manufacturer’s reference number:
- Article ID: 100-024-577
- Item number: HH-JS110-BL
- EAN number: 4510932043038
Manufacturer: Sugatsune / LAMP® (Japan)
