Description

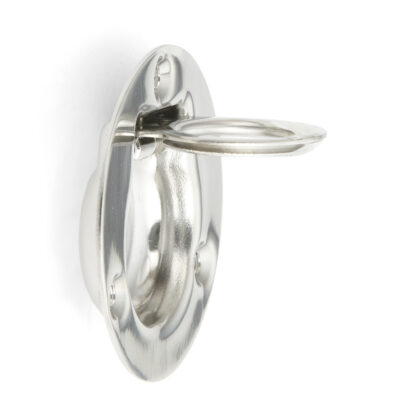

Ring-shaped stainless steel folding handle made of stainless steel V2A (SUS304) 980640
Application:
Rotatable ring-shaped stainless steel folding handle made of stainless steel V2A, mirror polished, for inspection flap, inspection door, damp environment, ship, caravan.
The foldable handles are perfect for applications where you want the handle to remain hidden.
They can be mounted both vertically and horizontally
The ring-shaped stainless steel folding handles 980640 are closed by the built-in spring when not in use.
When folded, the ring handles are flush with the surface.
Ring-shaped stainless steel folding handles 980640 have a simple and elegant design and can be used in many ways.
The high quality 980640 Ring Stainless Steel Folding Handles are ideal for:
- inspection flap
- inspection door
- maintenance door
- humid environment
- Ship
- Caravan
- cruise ship
- yacht
- Boat
- outdoor area
- bathroom
- Swimming pool
- Sauna
- Medical
- laboratory equipment
- outdoor furniture
- restaurant interior
- stainless steel kitchen
Material:
The rustproof 980640 folding ring handles are made from solid high quality SUS304 stainless steel.
Foldable ring handle made of SUS316 stainless steel is also ideal for use in swimming pools, shipbuilding, etc.
Surface:
- Polished to a shine
Assembly:
- The ring-shaped stainless steel folding handles 980640 are for flush mounting
- It is attached using the included screws (3.5 × 22 mm)
- The fastening screws are also made of stainless steel

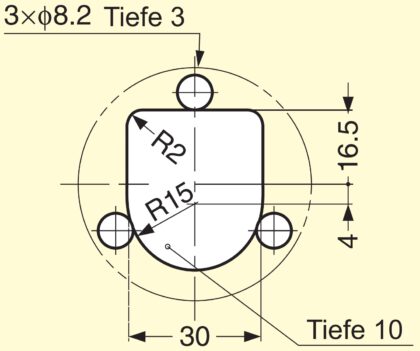

- A cut-out with a depth of at least 10.5 mm ( 13/32 ″) mm must be made on the door for installation (see installation drawing for further details)

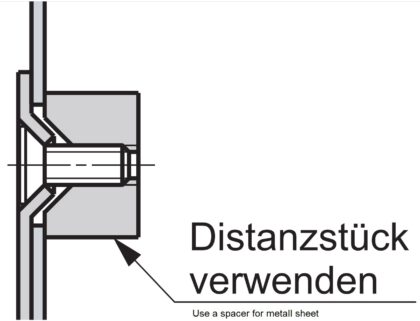

- The ring-shaped stainless steel folding handles 980640 can also be installed in the sheet metal using a spacer and two M3 self-tapping screws. These are not included
Features:
- Weight: 23g
- Load capacity (load capacity): 196 N (20 kp)
- Size: 50mm (2″)
- Shape: round
- Unique design
- Made of stainless steel
- stainless
- Corrosion resistant
- High quality
- Material thickness: 1 mm
Dimensions:

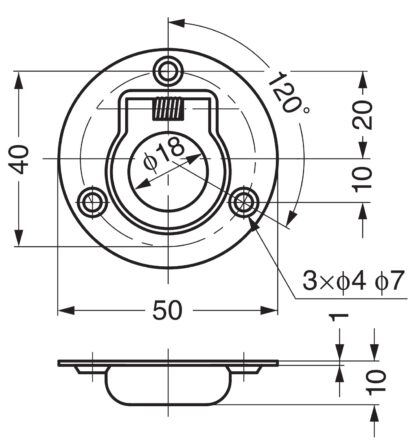

For further dimensions and details see technical drawing .
- Stainless Steel Ring Folding Handle Size: 50mm (1-31/32″)
- Grip area size: 10 mm (13/32″)
Included in delivery:
- 1 ring-shaped stainless steel folding handle 980640 made of stainless steel SUS304 (V2A)
- 2 mounting screws 3.5 × 22 mm made of stainless steel
Manufacturer’s reference number:
- Article number: 100-011-740
- Article designation: 980640
- EAN number: 4510932011013
Manufacturer: SUGATSUNE / LAMP® (Japan)
