Description

Robust, high-quality heavy-duty furniture strap, incl. screws, made of solid stainless steel (similar to V2A, SUS304), surface: black, satin matte, F136-50-BK, size: 120 mm (4-23/32″)

Application:

Heavy-duty hinge for heavy door, heavy flap and much more.

The F136-50-BK heavy-duty furniture belt is intended for applications where high strength and robust storage are required.

The cast stainless steel body provides a very stable base for long-lasting connections.

The stainless steel rotary axis ensures clean, backlash-free running even with frequent opening and closing.

Due to the large contact surfaces, the load is better distributed between the door and frame, which reduces tearing and warping.

The designed head seats guide the screw heads flush and improve appearance and touch safety.

This makes the F136-50-BK heavy-duty hinge particularly suitable for demanding constructions in furniture and interior fittings, including high-quality interior fittings of ships and yachts (e.g. for heavy doors, flaps and service hatches in the interior).

The high-quality F136-50-BK heavy-duty furniture belts are ideal for, among other things:

• Technical enclosures
• Lid
• Hatches
• Covers
• heavy door
• heavy flap

Material:

• The F136-50-BK heavy-duty furniture belts are made of solid stainless steel (similar to V2A, SUS304)
• SUSXM7 stainless steel rotary axis
• Brass washer
• Stainless steel SCS13 (similar to AISI 304 / V2A) offers very good corrosion resistance, hygienic surface and high durability for furniture fittings and interior fittings – even with moisture, cleaning agents and changing temperatures
• This high-quality stainless steel provides a high degree of robustness and dimensional stability for furniture fittings and ship interiors, so that fittings function reliably even with frequent use, loads and vibrations

Surface:

• Black, satin matt
• Black finishes exude a timeless elegance and can help make a room look more luxurious and stylish.
• While interior styles can change, black always remains a safe choice that can be easily adapted to new trends.
• Black finishes can be used in different rooms, be it the kitchen, living room, or office.
• Black can have a calming and grounding effect, which contributes to a relaxed atmosphere.

Assembly:

• The fastening is done using the six screws included in the scope of delivery (pan head screw 6×20 mm, black lacquered)
• The fastening screws are also made of stainless steel

Features:

• Weight: 260 g
• Size: 120 mm (4-23/32″)
• Available in 2 surface colours: sandblasted black and sandblasted natural (raw)
• Easy installation, stable
• Opening angle: 180
• Heavy-duty design with large contact surface
• Material thickness: 5.5 mm (7/32″)
• Suitable for corrosion-stressed interior applications and robust constructions
• with head seat or countersink for pan head screws
• Black, satin matt
• Weather-resistant, rust-free or corrosion-resistant
• High brand quality from Kojima (Japan)

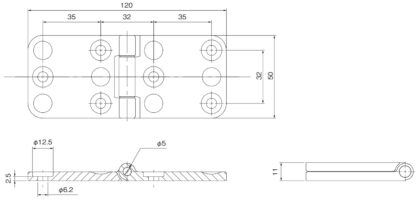

For more dimensions and details , see technical drawing.

The dimensions:

• Heavy Duty Hinge Length: 120mm (4-23/32″)
• Width: 50 mm (1-31/32″)
• Height: 11 mm (7/16″)
• Mounting hole diameter: ⌀6.2 mm (1/4″)
• Outer Diameter of Mounting Hole (Countersink): ⌀12.5 mm (31/64″)
• Mounting hole diameter: ⌀5 mm (13/64″)



Included in delivery:

• 1 piece Heavy-duty furniture hinge F136-50-BK made of solid stainless steel, black, satin matte, 120 mm (4-23/32″)
• 6 pan head screws 6×20 mm, black lacquered made of stainless steel

Manufacturer’s reference number:

• Article ID: F136-50-BK
• GTIN number (EAN, UPC): 0618455525452

Manufacturer: Kojima (Japan)
