Description

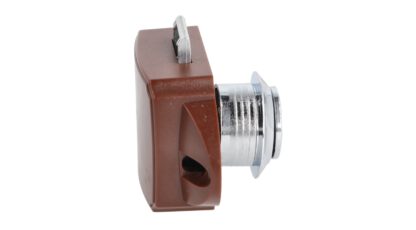

Practical push-button closure with soft-close damper 14.03.047-0, made of robust ABS (plastic), surface: chrome-plated, version: round
Application:
Compact push button for caravan, yacht, caravan, boat, cabinet door, drawer and much more.
The round design offers ergonomic handling, reduces the risk of injury due to sharp edges and blends harmoniously into different furnishing styles. The push-button lock 14.03.047-0 is a furniture handle with a locking function and, when recessed, ensures that the furniture doors or cabinet doors do not open unintentionally during the journey or flight. In addition, the furniture fronts look minimalist thanks to the retractable furniture handle. There are no annoying door handles and the risk of injury is minimized.
When closed, the push button is recessed and thus protects against collisions. The push button 14.03.047-0 is suitable for door thicknesses between 13 mm (33/64″) and 18 mm (45/64″). To open the furniture door, the handle of the push-button lock 14.03.047-0 must be pressed and thus released. The push button 14.03.047-0 serves as a practical handle with a length of 14 mm (35/64″) when opened.
The special feature of the push-button fastener 14.03.047-0 is that the counterpart (strike plate) has two spring-loaded buffers. When closing, these buffers ensure that the door closes smoothly and does not make any noise while driving. These features make the Snap Fastener 14.03.047-0 ideal for private ships, airplanes, motorhomes and caravans. The high-quality snap fasteners 14.03.047-0 are ideal for, among other things:
- Motorhome
- Superyacht
- Camper Van
- Private aircraft
- Caravan
- Yacht
- Caravan
- Boat
- Cabinet door
- Drawer
Material:
- The snap fasteners 14.03.047-0 are made of robust ABS (plastic)
- ABS (Acrylonitrile Butadiene Styrene) is a robust, durable material that gives industrial hardware and furniture hardware high stability and impact resistance
- It is lightweight, corrosion-resistant and is ideal for use in humid environments, such as kitchens or bathrooms
- ABS also allows for versatile design through easy color and surface adjustments, making it ideal for modern appliances, machinery, and furniture
Surface:
- Chrome-plated
- Chrome-plated surfaces give rooms an elegant and modern look that looks timeless
- They are extremely easy to maintain, as chrome is resistant to corrosion and scratches and thus remains durable
- In addition, chrome-plated surfaces reflect light, making rooms appear brighter and visually larger
Assembly:
- Fastening is done using the four screws included in the scope of delivery
- For mounting, a hole with a diameter of ⌀26 mm (1-1/32″) must be drilled in the front
- The distance between the edge of the door and the bore is 0 mm (“)
- The push button 14.03.047-0 is inserted into the front and the housing is screwed on from the back using the supplied screw
- The strike plate is then attached to the carcass side using the screws supplied
- A 3 mm thick spacer for thin fronts is included and can be used if necessary
Features:
- Finish: round
- Weight: 95g
- Size: 34 mm (1-11/32″)
- Available in two surface colours: nickel-plated and chrome-plated
- Easy to assemble
- Practical
- stable
- Compact design
- Suitable for internal (enclosed) and surface-mounted (existing) furniture doors
- The snap fasteners 14.03.047-0 look solid and extremely high-quality
- chrome-plated
- ABS
- plastic
- high brand quality of UMAXO®
For more dimensions and details, see technical drawing.
The dimensions:
- Snap closure diameter: ⌀34 mm (1-11/32″)
- Diameter of the push handle: ⌀16 mm
- Lock Depth: 25 mm (63/64″)
- Button handle length: 14 mm (35/64″)
Included in delivery:
- 1 piece push-button closure 14.03.047-0 made of robust ABS, chrome-plated, version: round
- Four Piece Mounting Screw
- 1 piece housing
- 1 piece counterpart
- 1 piece spacer (3 mm)
Additional Information:
Manufacturer’s reference number:
- Article ID: 14.03.047-0
- EAN number: 5704866520669
Manufacturer: SISO Denmark
