Description

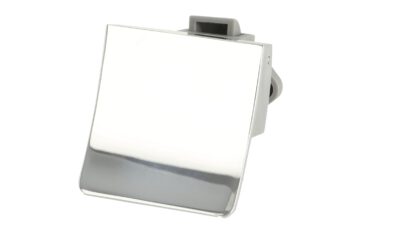

Practical snap lock 14.03.075-0, with spring damper for soft closing and self-locking lock, made of solid die-cast zinc, surface: chrome-plated, design: square
Application:
Lifting handle with self-locking lock and soft-close for caravans, yachts and much more.
The square design offers a modern, clean aesthetic as well as high stability, and facilitates precise assembly thanks to straight edges and symmetrical shapes.
The high-quality snap lock 14.03.075-0 is a furniture handle with a locking function and, when recessed, ensures that the furniture doors or cabinet doors do not open unintentionally during the journey or flight.
The lifting handle 14.03.075-0 is suitable for door thicknesses between 15 mm (19/32″) and 22 mm (55/64″).
To open the furniture door, the handle of the snap lock 14.03.075-0 must be pulled and the snap lock must be released.
The lifting handle 14.03.075-0 serves as a practical handle with a depth of 25 mm (63/64″) when open.

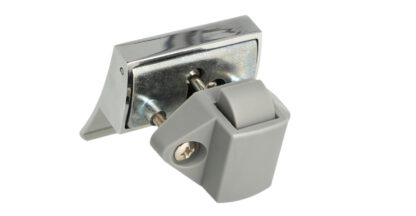

The special feature of the snap lock 14.03.075-0 is that the counterpart (strike plate) has two spring-loaded buffers. When closing, these buffers ensure that the door closes smoothly and does not make any noise while driving or flying.
These features make the 14.03.075-0 snap lock ideal for ships, private planes, motorhomes and caravans.
The high-quality snap locks 14.03.075-0 are ideal for, among other things:
- Private Jet
- Caravan
- Boat
- Motorhome
- Superyacht
- Camper Van
- Caravan
- Yacht
Material:
- The snap locks 14.03.075-0 are made of solid die-cast zinc
- Industrial and furniture fittings made of zamak offer a high-quality look and feel that is durable and valuable
- Due to their high stability and corrosion resistance, they remain reliable and rust-free even with daily use
- In addition, they are often less expensive than solid brass or stainless steel fittings without compromising on quality
Surface:
- Chrome-plated
- Chrome-plated surfaces give rooms an elegant and modern look that looks timeless
- They are extremely easy to maintain, as chrome is resistant to corrosion and scratches and thus remains durable
- In addition, chrome-plated surfaces reflect light, making rooms appear brighter and visually larger
Assembly:
- Fastening is done using the seven screws included in the scope of delivery
- For installation, a cut-out with a height of 18 mm (45/64″) and a width of 7 mm must be made in the front
- Alternatively, a hole with a diameter of 18 mm (45/64″) can simply be drilled
- The minimum distance between the edge of the door and the center of the hole is 26.5 mm (1-3/64″)
- The lifting handle 14.03.075-0 is plugged into the front and the housing is screwed on from the back using the supplied screw

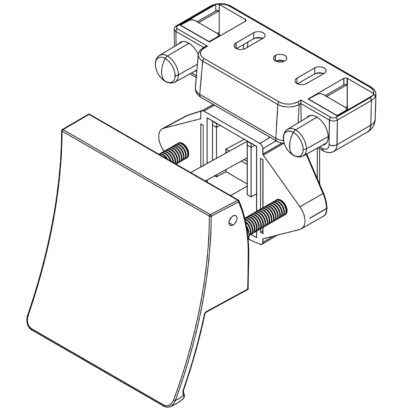

- The strike plate is then attached to the carcass side using the screws supplied (for further details, see assembly drawing)
Features:
- Design: square
- Weight: 110g
- Size: 50 mm (1-31/32″)
- Available in three surface colours: chrome-plated, black and stainless steel look
- Easy to assemble
- Practical
- stable
- Modern design
- High-quality optics
- Suitable for internal (enclosed) and surface-mounted (existing) furniture doors
- The snap locks 14.03.075-0 look solid and high-quality
- chrome-plated
- Zamak
- Zinc die casting
- high brand quality of UMAXO®

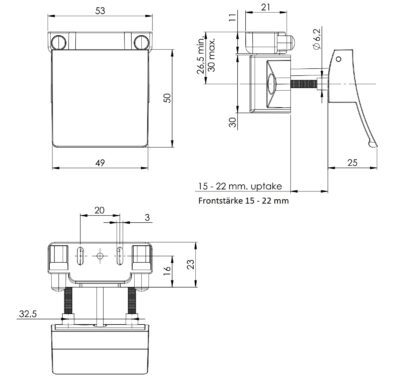

For more dimensions and details, see technical drawing.
The dimensions:
- Snap lock width: 49 mm (1-59/64″)
- Height: 50mm (1-31/32″)
- Handle depth: 25 mm (63/64″)
Included in delivery:
- 1 piece snap lock 14.03.075-0 made of solid die-cast zinc, chrome-plated, design: square
- Seven pieces of fastening screw
- 1 piece lock made of ABS, colour: grey
- 1 piece counterpart made of ABS with spring-loaded buffers, colour: grey
- 1 piece pen
Additional Information:
- Download Reach Declaration
Manufacturer’s reference number:
- Article ID: 14.03.075-0
- EAN number: 5704866518338
Manufacturer: SISO Denmark
