Roller thrust guides, partial extension, black painted, RAL 9005, 300 mm (11-13/16″), 4388614. Roller sliding guides made of steel with partial extension, for wooden drawer, tray puller, wooden drawer, kitchen furniture, office furniture, home furniture, by EMUCA

Description

Roller thrust guides made of 4388614 steel, painted black, RAL 9005, 300 mm (11-13/16″)

Application:



Steel roller slide guides, with partial extension, for wooden drawers, shelf pull-outs, wooden drawers, kitchen furniture, office furniture, home furniture.

The drawer slides 4388614 made of robust steel, with integrated self-closing and nominal length 300 mm (11-13/16″) ensure smooth, smooth running.

These drawer pull-outs have the roll-out protection, the drawer can be fixed in the open position.

The drawer is easy to remove.

The guide rails 4388614 are simple, easy to manufacture, flexible to tolerance, safe and durable.

The drawer rails with partial extension are available in three surface colours: white, black and metallic grey.

The high-quality roller thrust guides 4388614 are ideal for:

• Wooden drawer
• Tray pull-out
• Wooden drawer
• Kitchen furniture
• Office furniture
• Home furniture

Material:

The roller thrust guides 4388614 are made of robust steel.

Surface:

• Black lacquered, RAL 9005

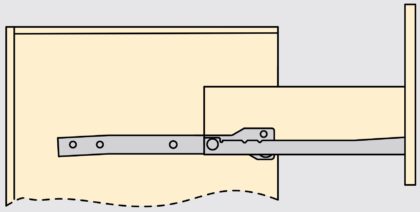

Assembly:

• The roller guides are fixed to the drawer bottom
• The body rail is attached to the body at a distance of 2 mm to the edge
• The drawer pull-outs are installed with ⌀5 mm flat-head Euro screws or with flat-head screws, diameter ⌀3.5 mm
• For installation with the Euro screws, ⌀5 mm holes in the body must be pre-drilled at a height of 18 mm to 25 mm from the floor
• Optionally, a soft-close damper can be used (not included), see below (for further details see
  mounting drawing
  )



Features:

• Load capacity (load capacity): 200 N (20.5 kp)
• Size: 300 mm (11-13/16″)
• Maximum load capacity (payload): 20 kg
• With self-closing on last 6 cm
• With anti-roll protection
• Easy removal of the drawer
• Visible leadership
• Robust
• Made of steel
• Black lacquered, RAL 9005
• High brand quality from UMAXO®

Dimensions:

For more dimensions and details
, see technical drawing.

• Nominal length of roller thrust guides: 300 mm (11-13/16″)
• Focuser length: 215 mm (8-15/32″)
• Distance between the body and the drawer: 13 mm (1/2″)



Included in delivery:

• 2 pieces of roller thrust guides 4388614 made of steel (right and left)

Watch product video:

Manufacturer’s reference number:

• Item ID: 4388614

Manufacturer: EMUCA
