Roller thrust guides, partial extension, grey metallic, RAL 9022, painted, 450 mm (17.8″). Steel guide rails with partial extension, for wooden drawer, tray drawer, wooden drawer, kitchen furniture, office furniture, home furniture, by EMUCA

$ 12,99

In stock

Description

Steel roller thrust guides E.T30C.45.AL

Application:

blank

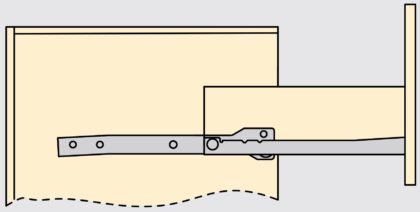

Roller thrust guides, partial extension, grey metallic, RAL 9022, painted, 450 mm, by EMUCA. Application



Steel guide rails with partial extension, for wooden drawer, tray puller, wooden drawer, kitchen furniture, office furniture, home furniture.

The drawer guides E.T30C.45.AL made of robust steel, nominal length 450 mm (17-23/32″) with integrated self-closing allow the drawers to roll.

These drawer pull-outs have the roll-out protection, the drawer can be fixed in the open position.

The drawer is easy to remove.

The guide rails E.T30C.45.AL are simple, easy to manufacture, tolerance-flexible, safe and durable.

The drawer rails with partial extension are available in three surface colours: white, black and metallic grey.

The high-quality roller guides E.T30C.45.AL are ideal for:

  • Wooden drawer
  • Tray pull-out
  • Wooden drawer
  • Kitchen furniture
  • Office furniture
  • Home furniture

Material:

The roller guides E.T30C.45.AL are made of robust steel.

Surface:

  • Grey metallic, RAL 9022, lacquered

Assembly:

  • The roller guides are fixed to the drawer bottom
  • The body rail is attached to the body at a distance of 2 mm to the edge
  • The drawer pull-outs are assembled with Φ5 mm flat head Euro screws or with flat head screws, diameter Φ3.5 mm
  • For mounting with the Euro screws, Φ5 mm holes in the body must be pre-drilled from the ground at a height of 18.25 mm (23/32″)
  • Optionally, a soft-close damper can be used (not included), see below (for further details see
    mounting drawing
    )
blank

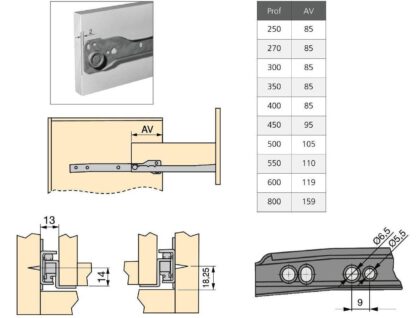

Roller thrust guides, partial extension, grey metallic, RAL 9022, painted, 450 mm, by EMUCA. assembly drawing



Features:

  • Load capacity (load capacity): 200 N (20.5 kp)
  • Size: 450 mm (17.8″)
  • Maximum load capacity (payload): 20 kg
  • With self-closing on last 6 cm
  • With anti-roll protection
  • Easy removal of the drawer
  • Visible leadership
  • Robust
  • Made of steel
  • Grey metallic, RAL 9022, lacquered
  • High brand quality from UMAXO®

Dimensions:

For further dimensions and details see technical drawing .

  • Rated length of guide rails: 450 mm (17-23/32″)
  • Focuser length: 365 mm (14-12/32″)
  • Distance between body and drawer: 16/32″ (13 mm)
blank

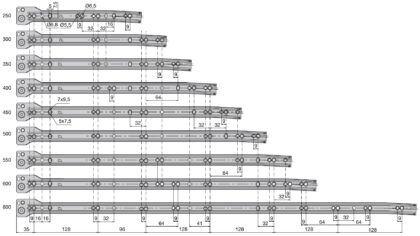

Roller thrust guides, partial extension, grey metallic, RAL 9022, painted, 450 mm, by EMUCA. Technical drawing



Included in delivery:

  • 2 pieces of steel roller thrust guides E.T30C.45.AL (right and left)

Watch product video:

Manufacturer’s reference number:

  • Item ID: 4388925

Manufacturer: EMUCA
