Roller thrust guides, partial extension, grey metallic, RAL 9022, painted, length 500 mm (19-11/16″). Steel 4389025 guide rails with partial extension, for wooden drawer, shelf pull-out, wooden drawer, kitchen furniture, office furniture, home furniture, kitchen furniture, kitchen furniture, kitchen furniture, home

Description

Roller thrust guides made of 4389025 steel, partial extension, grey metallic, RAL 9022, painted, length 500 mm (19-11/16″)

Application:



Steel guide rails, with partial extension, for wooden drawer, shelf pull-out, wooden drawer, kitchen furniture, office furniture, home furniture.

The drawer slides 4389025 made of robust steel, nominal length 500 mm (19-11/16″), with integrated self-closing allow the drawers to roll.

These drawer pull-outs have a roll-out protection so that the drawer can be fixed in the open position.

The drawer is easy to remove.

The guide rails 4389025 are simple, easy to manufacture, flexible to tolerance, safe and durable.

The drawer rails with partial extension are available in three surface colours: white, black and metallic grey.

The high-quality roller guides 4389025 are ideal for:

• Wooden drawer
• Tray pull-out
• Wooden drawer
• Kitchen furniture
• Office furniture
• Home furniture

Material:

The roller guides 4389025 are made of robust steel.

Surface:

• Grey metallic, RAL 9022, lacquered

Assembly:

• The roller guides are fixed to the drawer bottom
• The body rail is attached to the body at a distance of 2 mm to the edge
• The drawer pull-outs are installed with ⌀5 mm flat-head Euro screws or with flat-head screws, diameter ⌀3.5 mm
• For installation with the Euro screws, ⌀5 mm holes in the body must be pre-drilled from the floor at a height of 18.25 mm (23/32″)
• Optionally, a soft-close damper can be used (not included), see below (for further details see

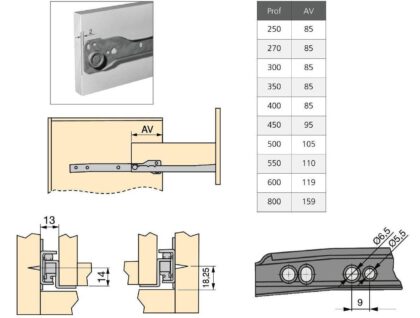

  mounting drawing
  )



Features:

• Load capacity (load capacity): 200 N (20.5 kp)
• Nominal length: 500 mm (19-11/16″)
• Partial extension length approx. 415 mm
• Maximum load capacity (payload): 20 kg
• With self-closing on last 6 cm
• With anti-roll protection
• Easy removal of the drawer
• Visible leadership
• Robust
• Made of steel
• Grey metallic, RAL 9022, lacquered
• High brand quality from UMAXO®

Dimensions:

For more dimensions and details, see technical drawing.

• Nominal length of guide rails: 500 mm (19-11/16″)
• Extension length: 415 mm (16-11/32″)
• Distance between the body and the drawer: 13 mm (1/2″)



Included in delivery:

• 2 steel roller thrust guides 4389025 (1 right and 1 left)
• This item does not include mounting screws

Watch product video:

Manufacturer’s reference number:

• Item ID: 4389025

Manufacturer: EMUCA
