Roller thrust guides, partial extension, painted white, RAL 9001, 600 mm (23-5/8″). Steel 4389212 guide rails with partial extension, for wooden drawer, shelf pull-out, wooden drawer, kitchen furniture, office furniture, home furniture, by EMUCA

Description

Roller thrust guides 4389212 made of steel, partial extension, painted white, RAL 9001, 600 mm (23-5/8″)

Application:

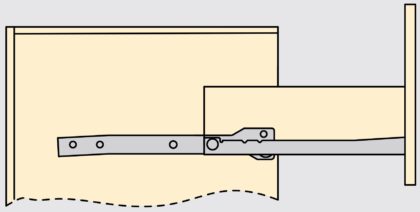

Steel guide rails, with partial extension, for wooden drawer, shelf pull-out, wooden drawer, kitchen furniture, office furniture, home furniture.

The drawer slides 4389212 made of robust steel, nominal length 600 mm (23-5/8″), with integrated self-closing allow the drawers to roll.

These drawer pull-outs have a roll-out protection, and the drawer can be fixed in the open position.

The drawer is easy to remove.

The guide rails 4389212 are simple, easy to manufacture, flexible to tolerance, safe and durable.

The drawer rails with partial extension are available in three surface colours: white, black and metallic grey.

The high-quality roller guides 4389212 are ideal for:

• Wooden drawer
• Tray pull-out
• Wooden drawer
• Kitchen furniture
• Office furniture
• Home furniture

Material:

The roller guides 4389212 are made of robust steel.

Surface:

• White lacquered, RAL 9001

Assembly:

• The roller guides are fixed to the drawer bottom
• The body rail is attached to the body at a distance of 2 mm to the edge
• The drawer pull-outs are assembled with Φ5 mm flat head Euro screws or with flat head screws, diameter Φ3.5 mm
• For mounting with the Euro screws, Φ5 mm holes in the body must be pre-drilled from the ground at a height of 18.25 mm (23/32″)
• Optionally, a soft-close damper can be used (not included), see below (for further details see

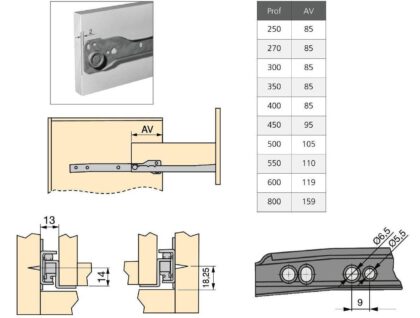

  mounting drawing
  )



Features:

• Load capacity (load capacity): 200 N (20.5 kp)
• Size: 600 mm (23-5/8″)
• Maximum load capacity (payload): 20 kg
• With self-closing on last 6 cm
• With anti-roll protection
• Easy removal of the drawer
• Visible leadership
• Robust
• Made of steel
• White lacquered, RAL 9001
• High brand quality from UMAXO®

Dimensions:

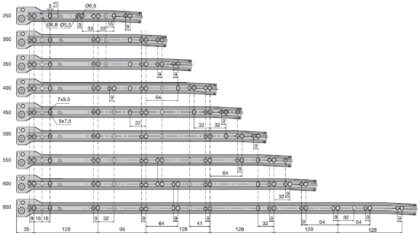

For more dimensions and details, see technical drawing.

• Nominal length of guide rails: 600 mm (23-5/8″)
• Extension length: 515 mm (20-9/32″)
• Distance between the body and the drawer: 13 mm (1/2″)



Included in delivery:

• 2 4389212 steel roller slide guides (1 piece on the right and 1 on the left)
• This item does not include mounting screws

Watch product video:

Manufacturer’s reference number:

• Item identification number: 4389212

Manufacturer: EMUCA
