Small high-quality finger grip shell, made of solid zinc alloy, surface: white bronze, 55 mm (2.2″) HH-DN-40WB. Recessed grip HH-DN-40WB for sheet metal fronts, wooden fronts, drawers, cabinets, office furniture, by Sugatsune / LAMP® (Japan)

$ 22,99

In stock

Description

High quality small grip shell made of solid zinc alloy, surface: white bronze HH-DN-40WB

Application:

Recessed grip HH-DN-40WB for sheet metal fronts, wooden fronts, drawers, cabinets, office furniture.

Small sturdy shell handle made of metal, which can also be used very well with one finger.
When used with the HH-DN-BKT bracket, the finger handle can also be installed in housings and furniture made of sheet metal.
The HH-DN-40WB recessed grip can be installed in both sheet metal and wood.
The high-quality handle shells HH-DN-40WB are ideal for:

  • Sheet metal fronts
  • Wooden fronts
  • Drawers
  • cabinets
  • Office furniture
  • Living room cabinet
  • Kitchen furniture
  • Bedroom

Material:

  • The high-quality handle shells HH-DN-40WB are made of solid zinc alloy (ZDC)
  • Inner housing: plastic (HIPS), black

Surface:

  • White bronze

Assembly:

  • The fastening is done using the screws included in the scope of delivery (flat round head screw M4 x 12 mm (for mounting on wood))
  • For mounting, a cut-out must be made in the front with the dimensions (L3 x H3) 46 mm (1-13/16″) x 36 mm (1-27/64″)
  • In addition, when mounted in the wood, two holes with a distance of 32 mm (1-17/64″) must be made for the screws
  • When mounted in sheet metal, the spacer HH-DN-BKT must be used (please order separately)
  • When mounting in wood, the mounting holes must be made according to the drawing (for further details see
    mounting drawing
    )
blank
Small high quality grip shell for fingers, made of solid zinc alloy, surface: white bronze, HH-DN-40WB, 55 mm, by Sugatsune, white bronze. assembly drawing



blank

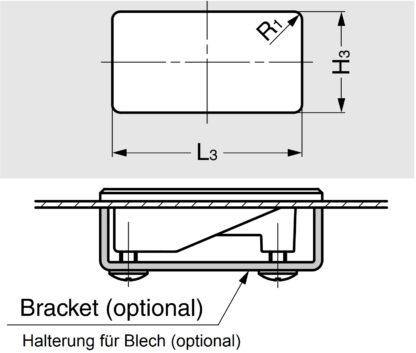

Small high quality grip shell for fingers, made of solid zinc alloy, surface: white bronze, HH-DN-40WB, 55 mm, by Sugatsune, white bronze. Mounting in sheet metal



Features:

  • Weight: 35 g
  • Size: 55mm (2.2″)
  • Elaborately processed
  • Ergonomic
  • Stable
  • Solid
  • Robust
  • White bronze
  • High brand quality of Sugatsune / LAMP®

Dimensions:

For further dimensions and details see technical drawing .

  • Grip Shell Height (L1): 55 mm (2-11/64″)
  • Width (H1): 40 mm (1-37/64″)
  • Distance between mounting holes (P1): 32 mm (1-17/64″)
  • Height of grip area (L2): 31.5 mm (1-15/64″)
  • Width of grip area (H2): 31.5 mm (1-15/64″)
blank
Small high quality grip shell for fingers, made of solid zinc alloy, surface: white bronze, HH-DN-40WB, 55 mm, by Sugatsune, white bronze. Technical drawing



Included in delivery:

  • 1 piece grip shell HH-DN-40WB made of solid zinc alloy, white bronze
  • 2 pieces flat round head screw M4 x 12 mm (for mounting on wood)

Manufacturer’s reference number:

  • Article ID: 100-014-085
  • Item number: HH-DN-40WB
  • EAN number: 4510932010078
  • Old article number: 5103-55

Manufacturer: Sugatsune / LAMP® (Japan)

SUGATSUNE, The manufacturer of the brand LAMP®
