Description

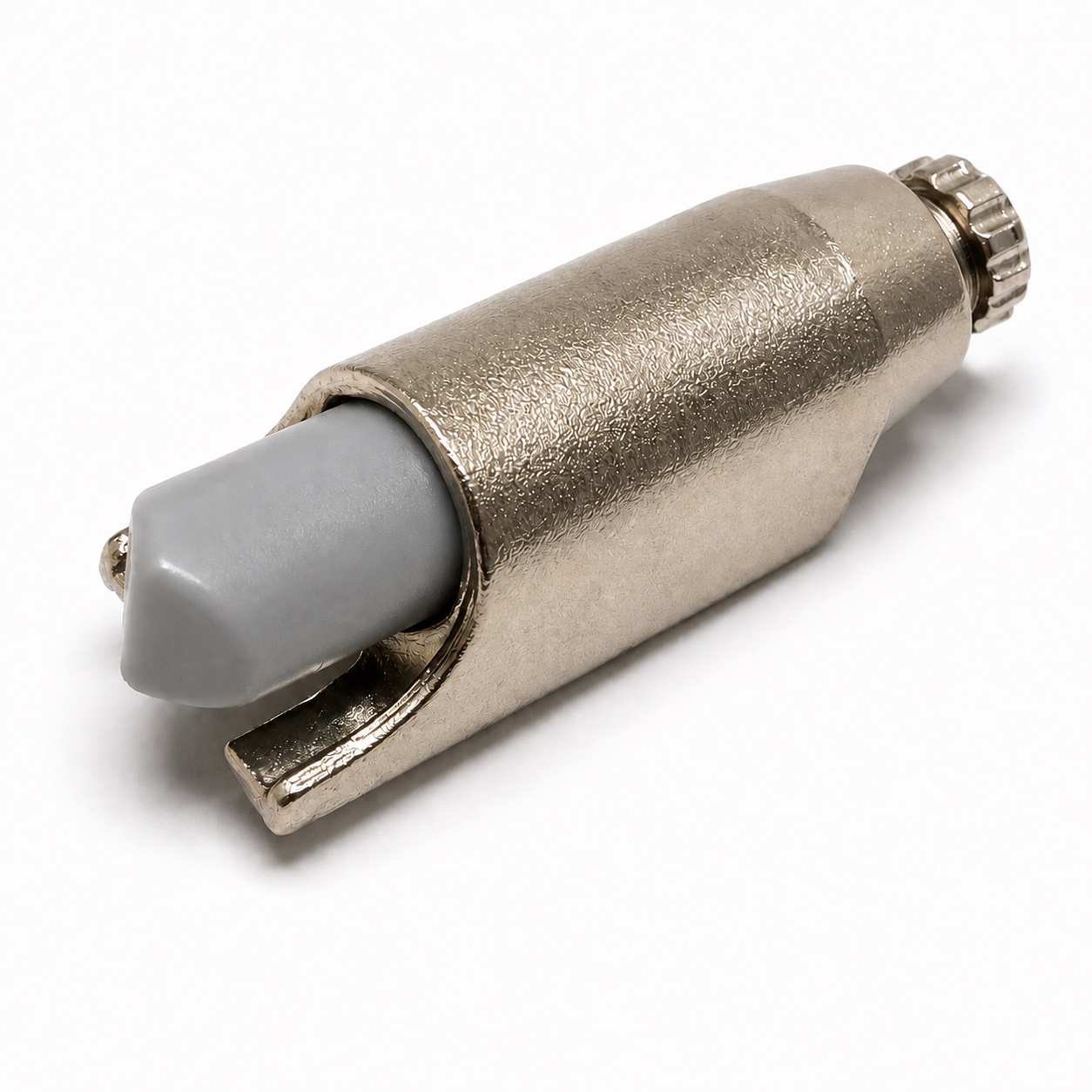

Soft-close closing damper, made of metal and robust plastic (metal and plastic), surface: nickel-plated, F069073711

Application:

Robust hinge damper for Nexis Click-on Mirro hinge, Nexis Click-on Mirro -15° hinge and much more.



The soft-close closing damper F069073711 complements the GRASS Nexis Click-on Mirro and Mirro -15° hinges with a soft-close function for mirror and glass doors.

It brakes the door in a controlled manner when closing, thus ensuring smooth and quiet closing.

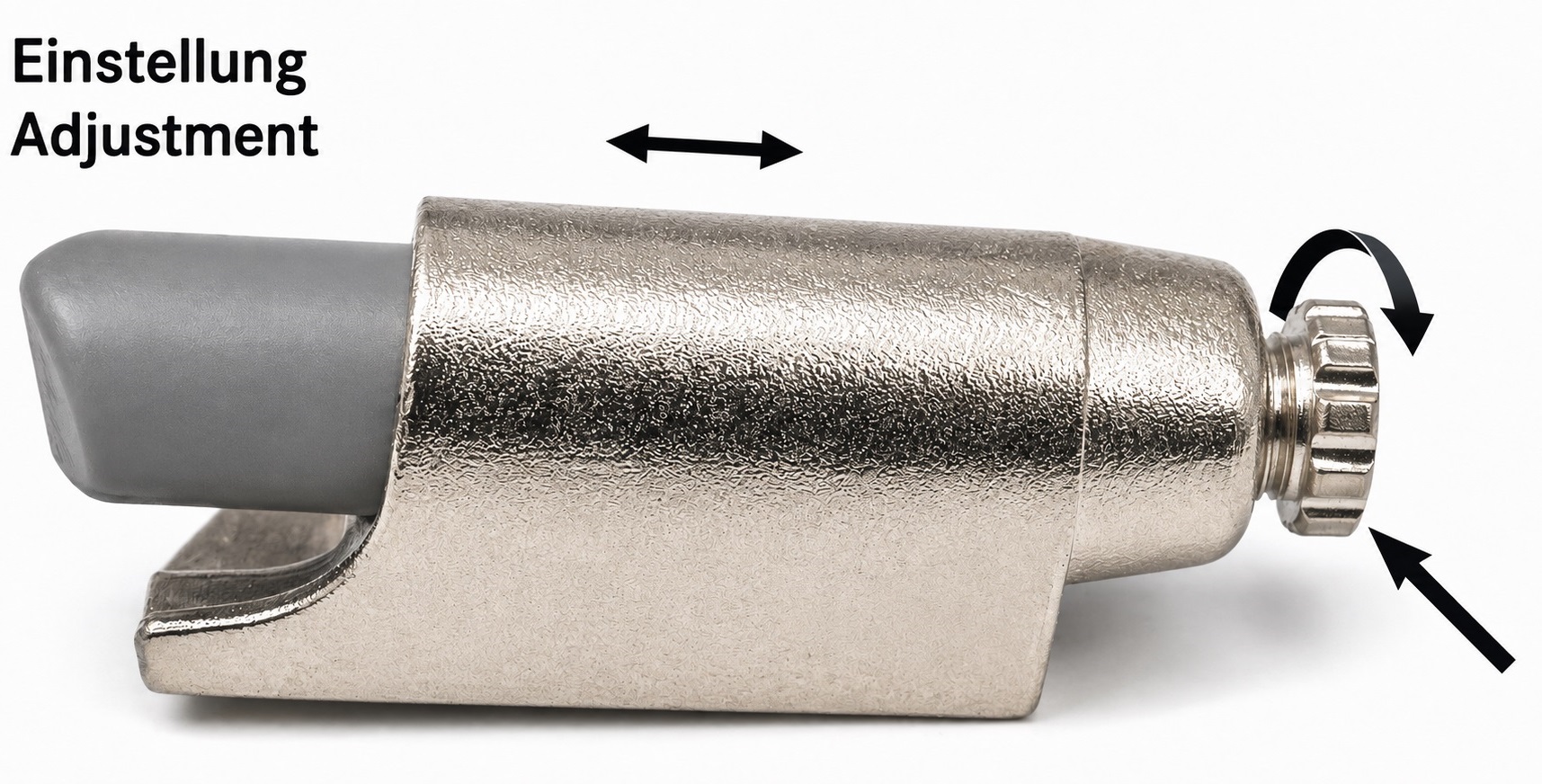

The damping performance can be individually adjusted without tools and thus adapted to different door sizes and door weights.

Thanks to the clip-on design, the shock can be mounted without tools and retrofitted if necessary.

Additional holes on the body are not required, which means that the installation effort remains particularly low.

The compact mounting directly on the hinge enables an unobtrusive soft-close solution especially for mirror and glass doors.

The high-quality soft-close damping systems F069073711 are ideal for, among other things:

• Mirror doors
• Glass doors
• Showcase doors
• Mirror cabinets
• Glass Display Cases
• Bathroom
• Home furniture
• Cabinet doors
• Nexis Click-on Mirro Hinge
• Nexis Click-on Mirro -15° Hinge

Material:

• The soft-close cushioning systems F069073711 are made of metal and robust plastic (metal and plastic)
• The combination of metal and plastic provides an optimal balance of strength and flexibility, making the fittings robust and adaptable at the same time
• In addition, this combination of materials allows for improved aesthetics and functionality, as it offers both stability and a variety of design options

Surface:

• nickel plated
• Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
• They offer an elegant, shiny look that looks modern and timeless at the same time
• They are also easy to clean, as they make dirt and fingerprints less visible and are easy to clean

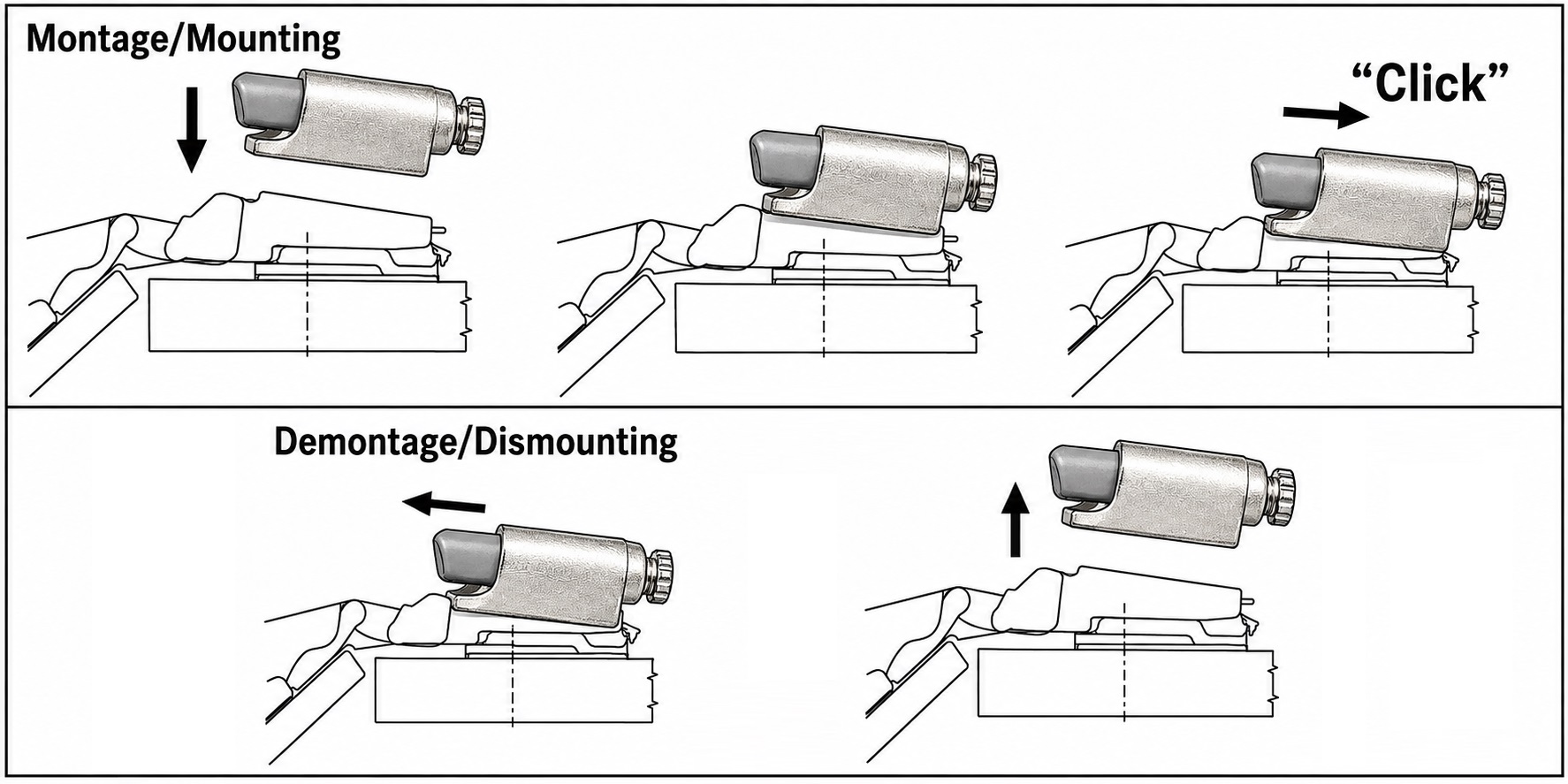

Assembly:

• First, the hook on the underside of the soft-close Mirro adapter must be inserted into the recess provided on the hinge arm
• The adapter is then pushed backwards until it clicks into place with an audible “click”
• After that, the damping power can be adjusted according to the respective door
• No tools, additional screws or holes are required to mount the shock itself (for more details, see assembly drawing)



Features:

• Weight: 42 g
• Size: 37.1 mm (1-29/64″)
• Easy installation, stable
• For GRASS Nexis Click-on Mirro hinges
• For GRASS Nexis Click-on Mirro -15° hinges
• Soft-close damping for mirror and glass doors
• Damping performance individually adjustable (tool-free)
• Tool-free assembly
• Can be retrofitted
• No additional holes on the body
• Mounting directly on the hinge arm
• Soft-close damper already integrated in the adapter
• Suitable for the 128° Mirro hinge system
• nickel plated
• robust
• High brand quality from UMAXO®

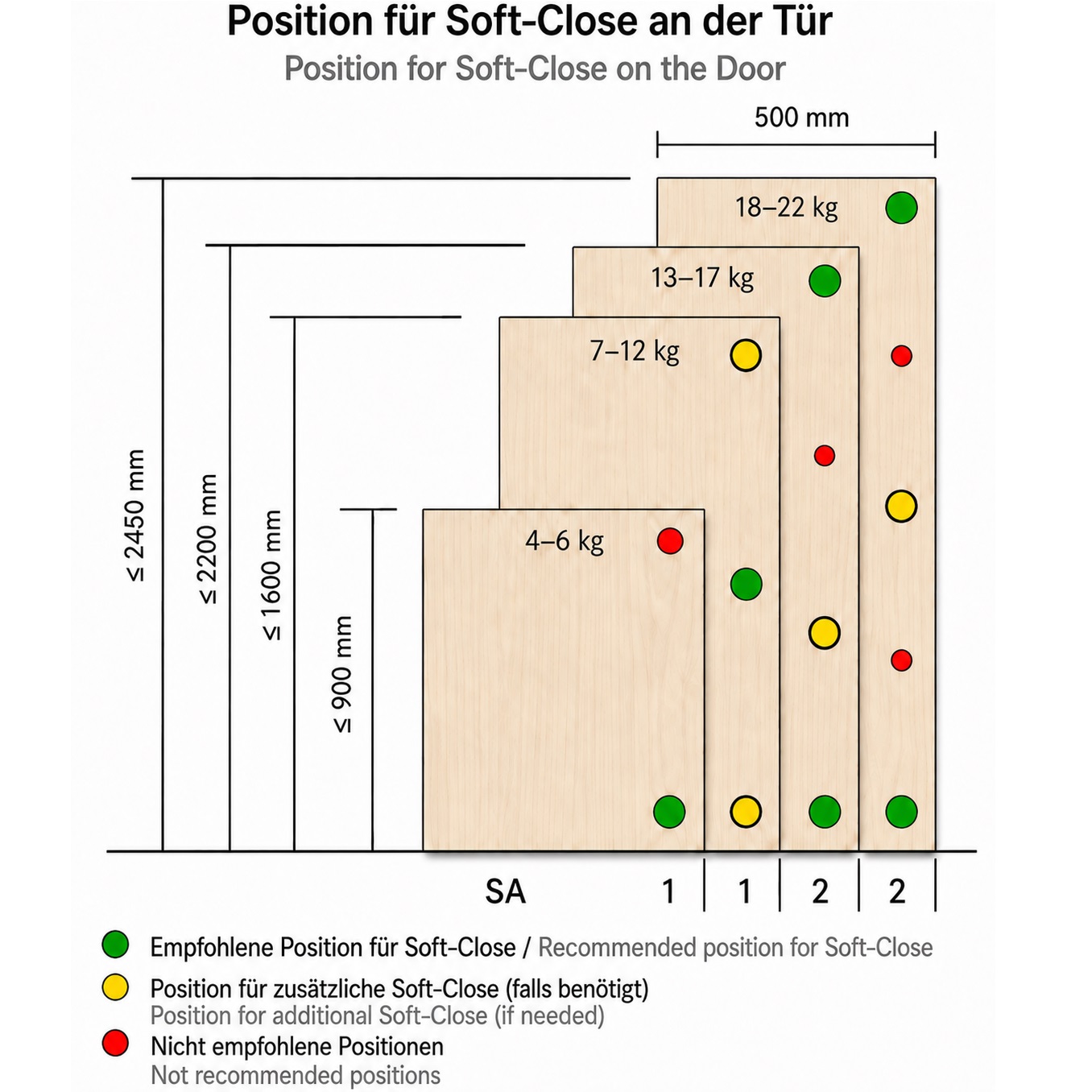

For more dimensions and details , see technical drawing.

The dimensions:

• Overall Height: 37.1 mm (1-29/64″)
• Depth: 84 mm (3-5/16″)



Included in delivery:

• 1 piece hinge damper F069073711 made of metal and robust plastic, nickel-plated
• This item does not include mounting screws

Manufacturer’s reference numbers:

• Item ID: F069073711 (alternative: 924.200.38.0215)
• GTIN number (EAN, UPC): 9003012417768

Manufacturer: GRASS
