Description
Stainless steel door handle made of stainless steel V2A (SUS304) EC-80S
Application:
High-quality solid stainless steel door handle made of stainless steel V2A (SUS304), satin matt, for humid environments, ships, food industry, medicine area.
The EC-80S stainless steel door handles are ideal for:
- Ships
- yachts
- boats
- bathroom
- public bath
- beach hotel
- Medical
- laboratory equipment
- food area
Material:
EC-80S stainless steel door handles are made of solid high quality SUS304 stainless steel.
They are corrosion resistant and rustproof.
The EC-80S stainless steel door handles made of SUS304 stainless steel are also ideal for use in swimming pools, shipbuilding (interior decoration), etc.
Surface:
- Satin matt
- The EC-80S stainless steel door handles appear solid and of high quality
Assembly:
- It is attached using the screws (M5 × 28 mm) included in the scope of delivery
- The fastening screws are also made of stainless steel
- The depth of the holes in the handle (S) is 8 mm (10/32″)
Features:
- Weight: 94g
- Size: 80mm (3-3/16″)
- Robust
- stainless
- Corrosion resistant
Dimensions:

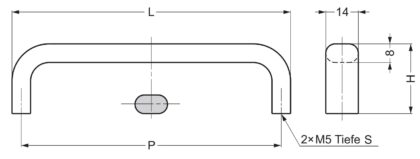

For further dimensions and details see technical drawing .
- Stainless Steel Door Handle Width (L): 80mm (3-5/32″)
- Distance between mounting holes (P): 72 mm (2-27/32″)
- Handle Height (H): 30mm (1-6/32″)
- Inner handle height: 22 mm (28/32″)
- Material thickness: 8 mm (10/32″) x 14 mm (18/32″)
Included in delivery:
- 1 piece stainless steel door handle EC-80S made of stainless steel SUS304 (V2A)
- 2 pieces mounting screws M5 × 28
Manufacturer’s reference number:
- Article number: 100-017-232
- Item name: EC-80S
- EAN number: 4510932006880
Manufacturer: SUGATSUNE / LAMP® (Japan)
