Description
Compact stainless steel handle shell made of stainless steel V2A (SUS304 or 1.4301) YK-70
Application:
High-quality stainless steel handle shell made of stainless steel V2A (SUS304), satin matt, for doors, sliding doors, bathrooms, ships, damp environments.
The YK-70 stainless steel handle shells have an opening and can be used to e.g. B. to open a door or sliding door with a finger.
Ideally suited for flush installation in sliding doors of furniture, bathrooms, cubicles and other applications – even in moisture-intensive environments.
The minimum door thickness is 30 mm (1-3/16″)
The high quality YK-70 stainless steel handle shells are ideal for:
- door
- sliding door
- bathroom
- Ships
- humid environments
- cruise ships
- yachts
- public bath
- beach hotel
Material:
The YK-70 stainless steel handle shells are made of high quality SUS304 stainless steel.
They are corrosion resistant and rustproof.
The YK-70 stainless steel pull handles made of SUS304 stainless steel are also ideal for use in swimming pools, shipbuilding (interior decoration), etc.
Surface:
- Satin matt
- The YK-70 stainless steel handle shells appear high-quality and robust
Assembly:
- Fastening is done using the screws included in the scope of delivery (4 x 20 mm)
- The fastening screws are also made of stainless steel (for further details see assembly drawing )
Features:
- Weight: 37g
- Size: 70mm (2.8″)
- Compact
- High quality
- Robust
- stainless
- Corrosion resistant
Dimensions:

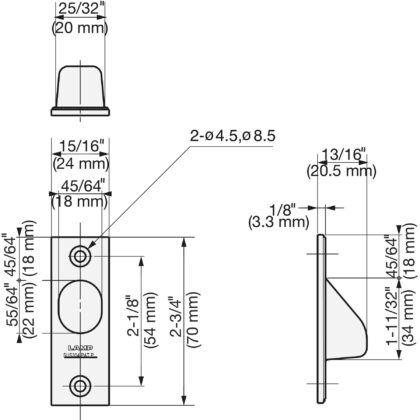

For more dimensions and details, see technical drawing.
- Length of stainless steel handle shell: 70 mm (2-3/4″)
- Width: 24 mm (15/16″)
- Length of the grip area: 22 mm (3/4″)
- Grip area width: 18 mm (23/32″)
- Distance between mounting holes: 54 mm (2-1/8″)
- Depth: 20.5 mm (13/16″)
Included in delivery:
- 1 piece stainless steel handle shell YK-70 made of stainless steel SUS304 (V2A or 1.4301)
- Two pieces of fastening screws 4 x 20 mm made of stainless steel
Manufacturer’s reference number:
- Article number: 100-010-390
- Item name: YK-70
- EAN number: 4510932009805
Manufacturer: SUGATSUNE / LAMP® (Japan)
