Description
High-quality corrosion-resistant pot hinge, support: fully supported (present), made of solid stainless steel (stainless steel), surface: natural (unprocessed), 9289590, design: mounting plate with 0 mm distance
Application:
Corrosion-resistant stainless steel furniture hinge for outdoor furniture and much more.

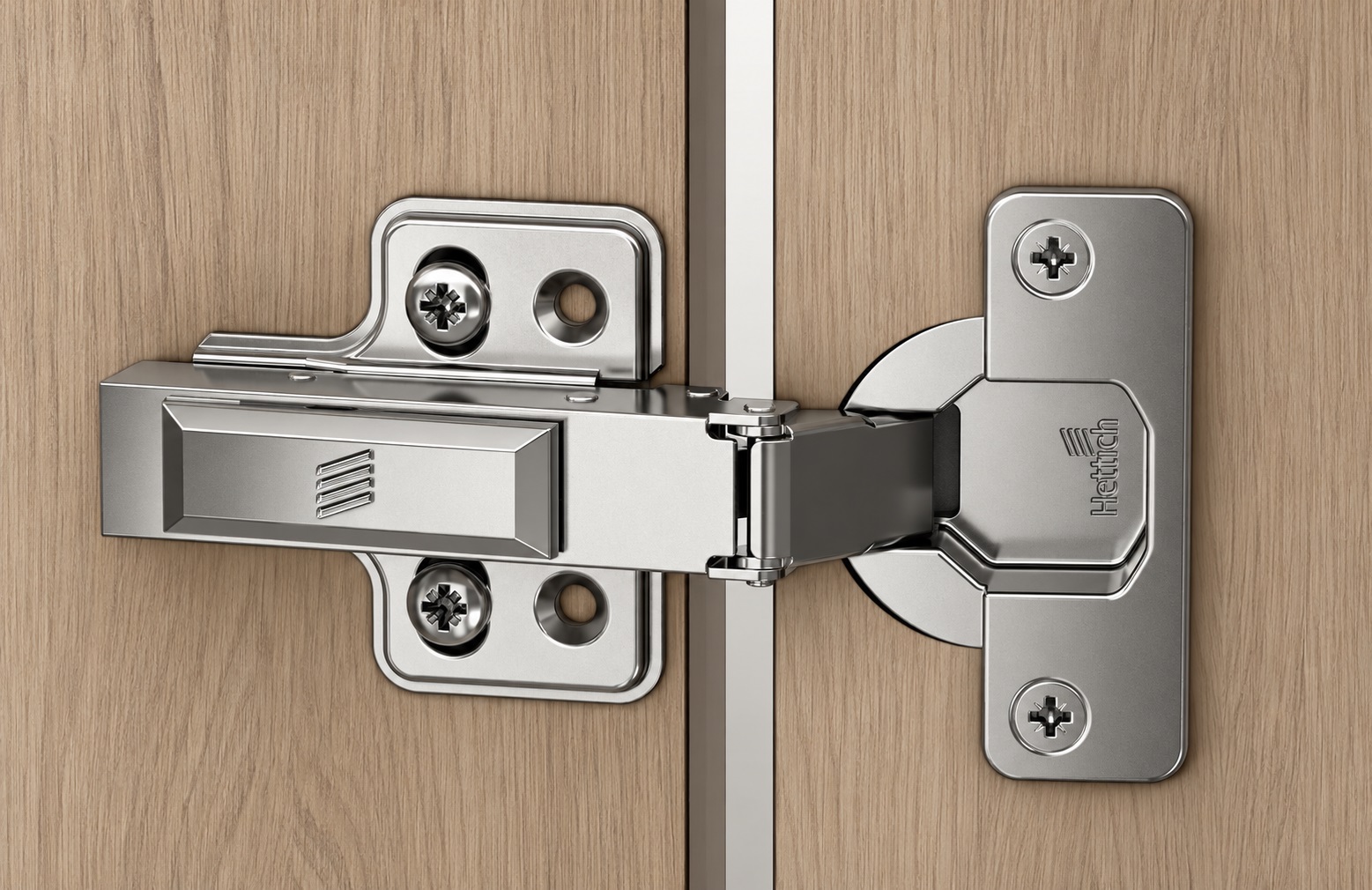

The Hettich Veosys 105° is a corrosion-resistant stainless steel pot hinge for existing interior and exterior furniture doors.
The integrated damping brakes the door when closing and ensures a quiet, controlled closing process even at low and high outside temperatures.
A self-tightening angle of 35° supports the independent closing of the door and increases ease of use.
Thanks to clip-on technology, the hinge arm can be quickly clipped onto the supplied Veosys mounting plate (height: 0 mm) without tools.
Support and depth are adjustable directly on the hinge, while height adjustment is done via the mounting plate, allowing the door to be precisely aligned.
The combination of stainless steel, tested corrosion resistance and 105° opening angle is particularly suitable for durable furniture constructions in kitchens, bathrooms, outdoor, wellness, laboratory and contract areas.
Design: Mounting plate with 0 mm distance. Mounting plate with distance 0 mm, for normal or larger quantities.
The high-quality furniture hinges 9289590 are ideal for, among other things:
- Bathroom
- Laboratory furniture
- Hospital Facilities
- Furniture doors
- Cabinet doors
- Kitchen cabinets
- Gym Furniture
- Wellness furniture
- Garden kitchens
- Outdoor furniture
Material:
- The furniture hinges 9289590 are made of solid stainless steel (stainless steel)
- Stainless steel is characterized by high corrosion resistance, durability and mechanical stability
- In addition, it offers increased heat and oxidation resistance compared to conventional steel, making it particularly suitable for demanding furniture fittings and industrial components.
Surface:
- Natural (unprocessed)
- The material surface remains visible and is not covered by an additional coating
Assembly:
- Fastening is done with 4x stainless steel screws ⌀3.5 x 16 mm with countersunk head (not included)

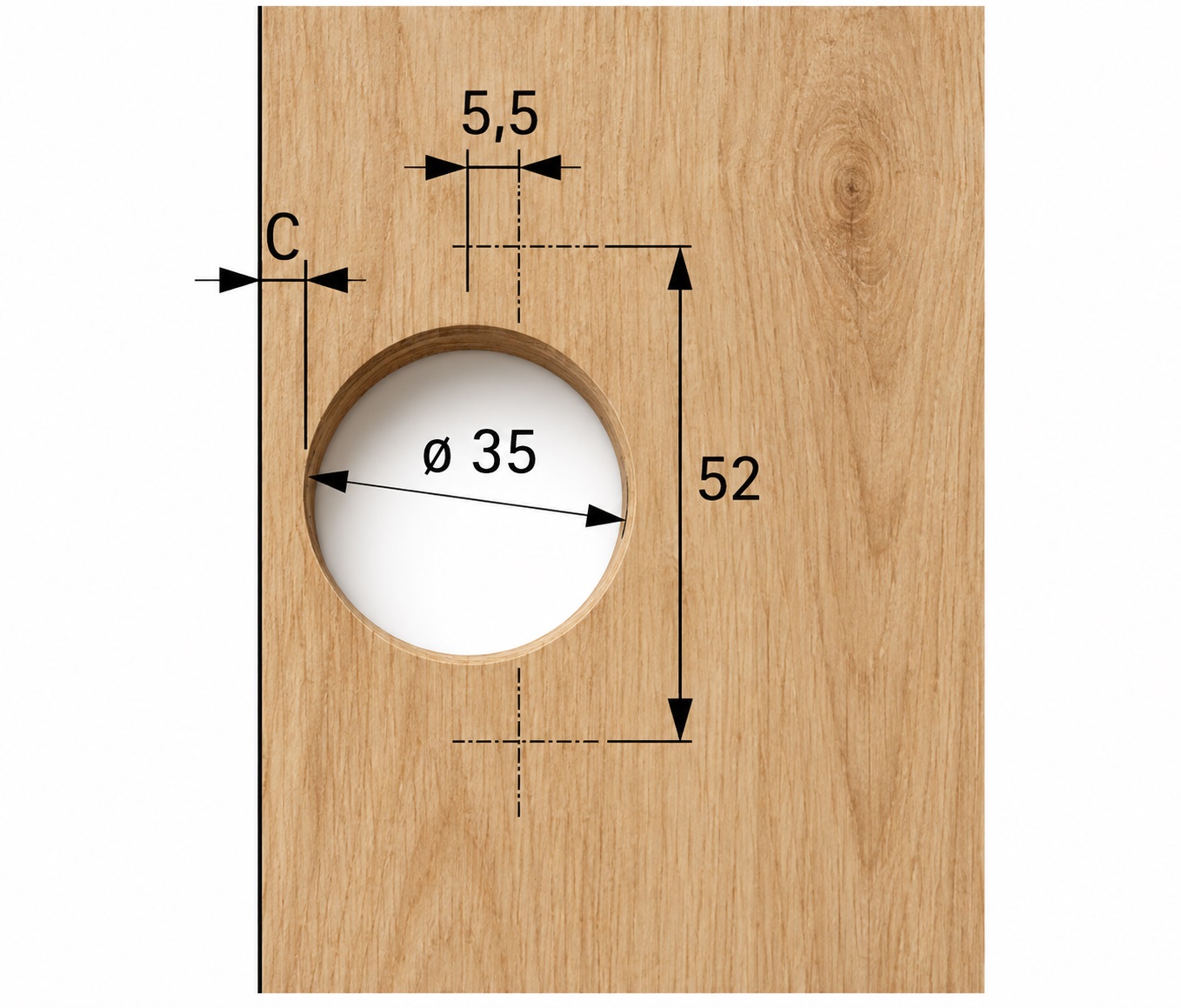

- The hinge has 2 mounting holes on the hinge cup. First, a cup hole with a depth of ⌀35 mm and 11.5 mm must be made in the furniture door; then the two attachment points are prepared according to the drilling pattern TH 52 x 5.5 mm.
- The cup hinge is attached to the door with two countersunk screws ⌀3.5 x 16 mm.

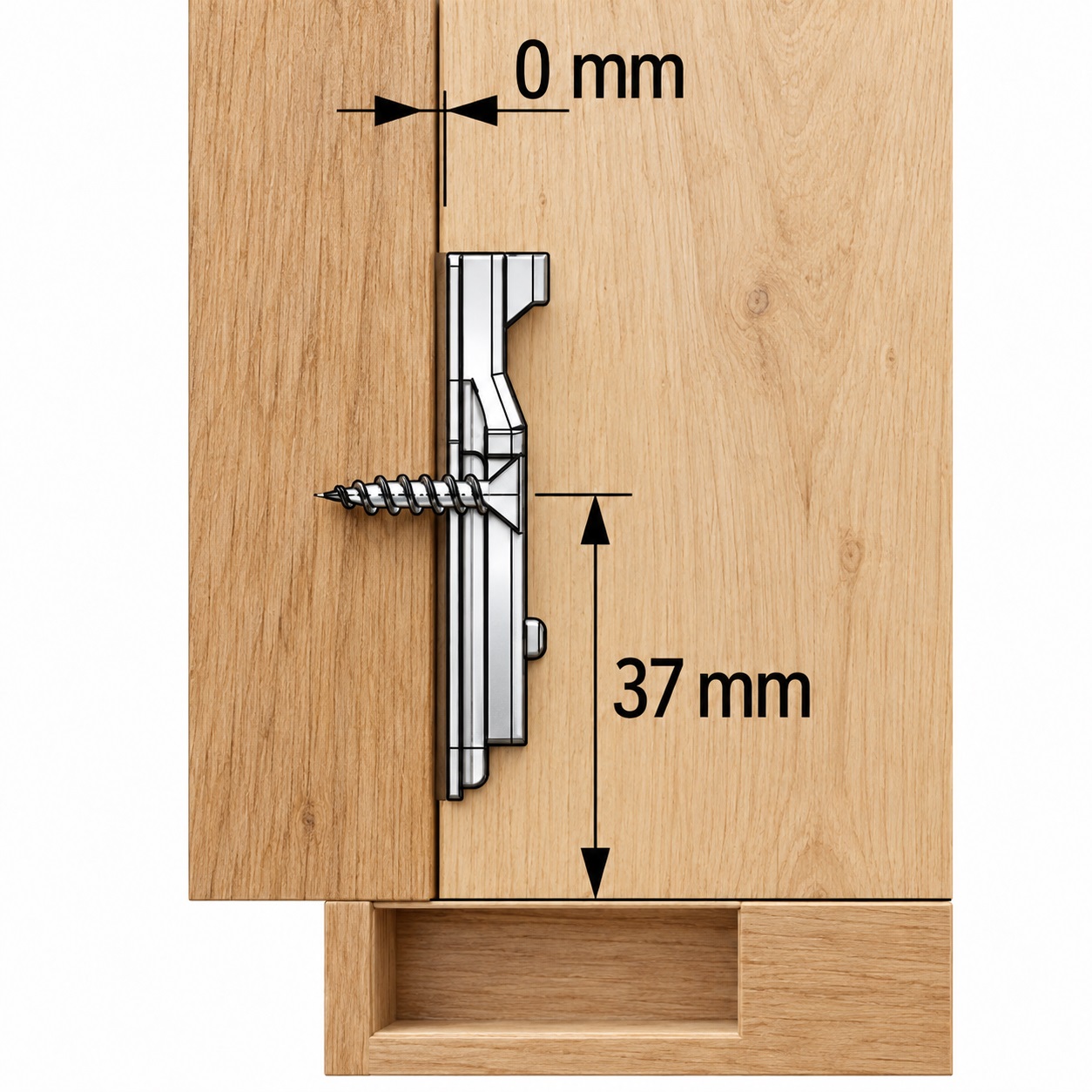

- Then the supplied Veosys mounting plate (height: 0 mm) is mounted on the furniture body.
- The hinge arm is placed on the mounting plate and snapped into place using the clip-on technique.
- The door support and depth are then adjusted using the adjustment screws on the hinge and the height via the mounting plate. (for more details, see assembly drawing)
Features:
- Design: Mounting plate with 0 mm distance
- Weight: 94.7 g
- Size: 114.9 mm (4-17/32″)

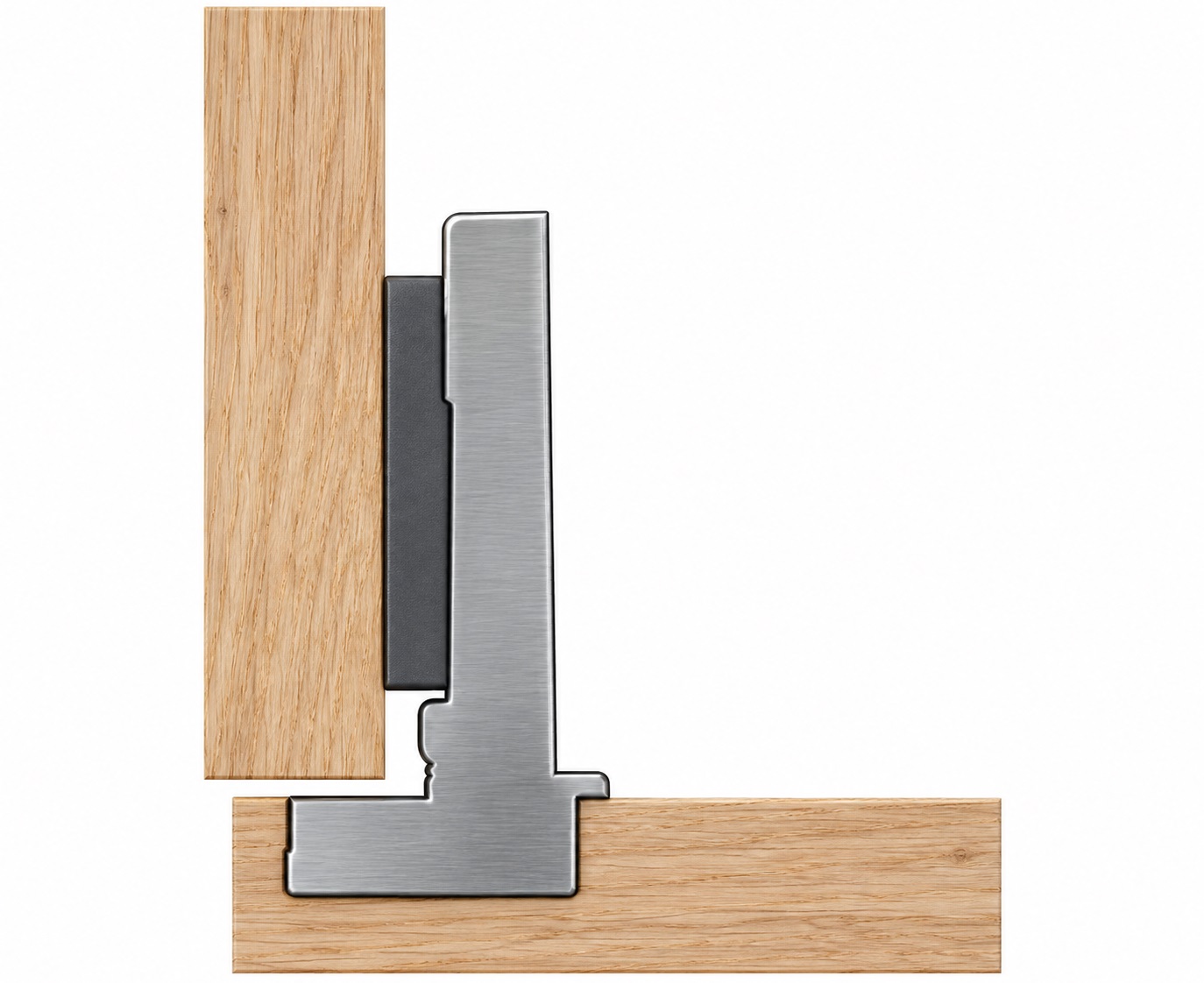

- Edition: fully surfaced (present)
- Easy installation, stable
- For existing furniture doors
- Beam angle 105°
- Hinged pot with ⌀35 mm
- Pot depth 11.5 mm
- For door thicknesses from 14 to 22 mm
- Drilling pattern TH 52 x 5.5 mm
- With integrated damping
- With automatic closing system
- Auto tightening angle 35°
- With clip-on technology
- Support adjustment ±2.5 mm
- Depth adjustment +2 mm / -1.5 mm
- Height adjustment via the mounting plate
- Corrosion resistant, 120 hours NSS tested
- Quality classification EN 15570, Level 2
- For indoor and outdoor applications
- For timber frame doors with a profile width of 50 mm or more
- For aluminium frame doors with a profile width of 50 mm or more
- Matching Veosys mounting plate included
- Opening angle can be reduced to 90° with optional limiter
- Natural (unprocessed)
- Weather-resistant, rust-free or corrosion-resistant
- High brand quality from Hettich
For more dimensions and details , see technical drawing.
The dimensions:
- Overall Length: 114.9 mm (4-17/32″)
- Overall Width: 62.6 mm (2-15/32″)
- Overall Height: 25 mm (63/64″)
- Mounting plate height: 0 mm
- Pot diameter: ⌀35 mm (1-3/8″)
- Pot depth: 11.5 mm (29/64″)
- Drilling pattern: 52 x 5.5 mm (2-3/64″ x 7/32″)
- Pot spacing: 3 – 7 mm (approx. 1/8″ – 9/32″)
- Door thickness: 14 – 22 mm (approx. 35/64″ – 55/64″)
- Minimum profile width for wooden and aluminium frame doors: 50 mm (1-31/32″)
- Beam angle: 105°
- Support adjustment: ±2.5 mm (approx. ±3/32″)
- Depth adjustment: +2 mm / -1.5 mm (approx. +5/64″ / -1/16″)

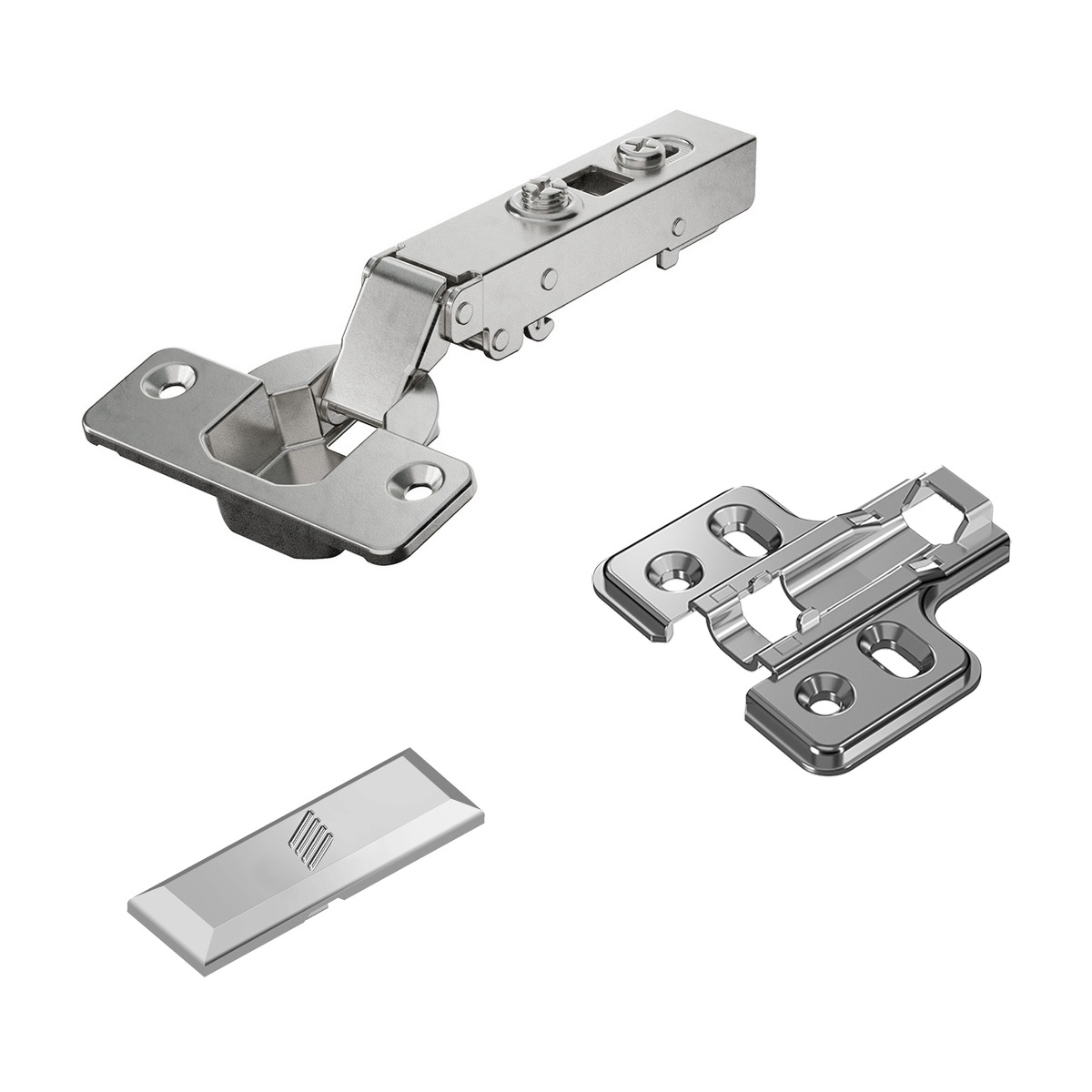

Included in delivery:
- 1 piece stainless steel furniture hinge 9289590 made of solid stainless steel, natural (unprocessed), version: mounting plate with 0 mm distance
- 1 piece cross-shaped mounting plate, made of stainless steel, height: 0 mm
- 1 piece cover cap for hinge arm 9289610, made of stainless steel
- This item does not include mounting screws
Additional Information:
Manufacturer’s reference numbers:
- Article ID: 9289590 and 9289598
- GTIN number (EAN, UPC): 4023149257445 and 4023149257476
Manufacturer: Hettich
