Description

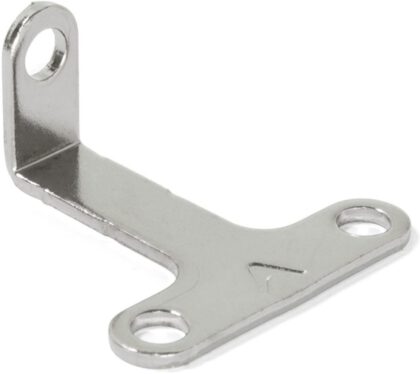

10 pieces 90 degree angle connector, T-shaped, made of robust steel, surface: nickel-plated 8030907
Application:
Mounting bracket E.FB.32 for shelf, bookshelf, table, cabinet and much more.
The sturdy steel angle connector can be used to fasten surfaces of all kinds at right angles.
The T-shaped angle mount contains two mounting holes on one side and one mounting hole on the angle side.
The high-quality E.FB.32 angle connectors are ideal for:
- Shelf
- Bookcase
- Table
- Cupboard
Material:
- The high-quality E.FB.32 angle connectors are made of robust steel
Surface:
- nickel plated
Assembly:
- To screw
- Dual-hole mounting on one side of the mounting bracket for better grip
- The distances between the mounting holes of the metal bracket are 32 mm (1-17/64″)
- The distance between the corner of the angle connector and the mounting hole on the side of the angle is 37 mm (1-29/64″)
Features:
- Weight: 13 g
- Size: 43 mm (1.7″)
- With three mounting holes
- T-shaped
- Rectangular
- Stable
- Solid
- Robust
- nickel plated
- High brand quality from UMAXO®
Dimensions:

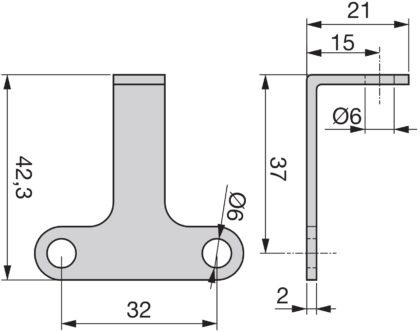

For further dimensions and details see technical drawing .
- Angle connector size: 43 mm (1-11/16″) x 42.3 mm (1-43/64″)
- Height: 21 mm (53/64″)
- Material thickness: 2 mm (5/64″)
- Diameter of mounting holes: Φ6 mm (15/64″)
Included in delivery:
- 10 pieces angle connector E.FB.32 made of robust steel, nickel-plated
Manufacturer’s reference number:
- Item identification number: 8030907
- EAN number: 8432393119847
Manufacturer: EMUCA
