Description

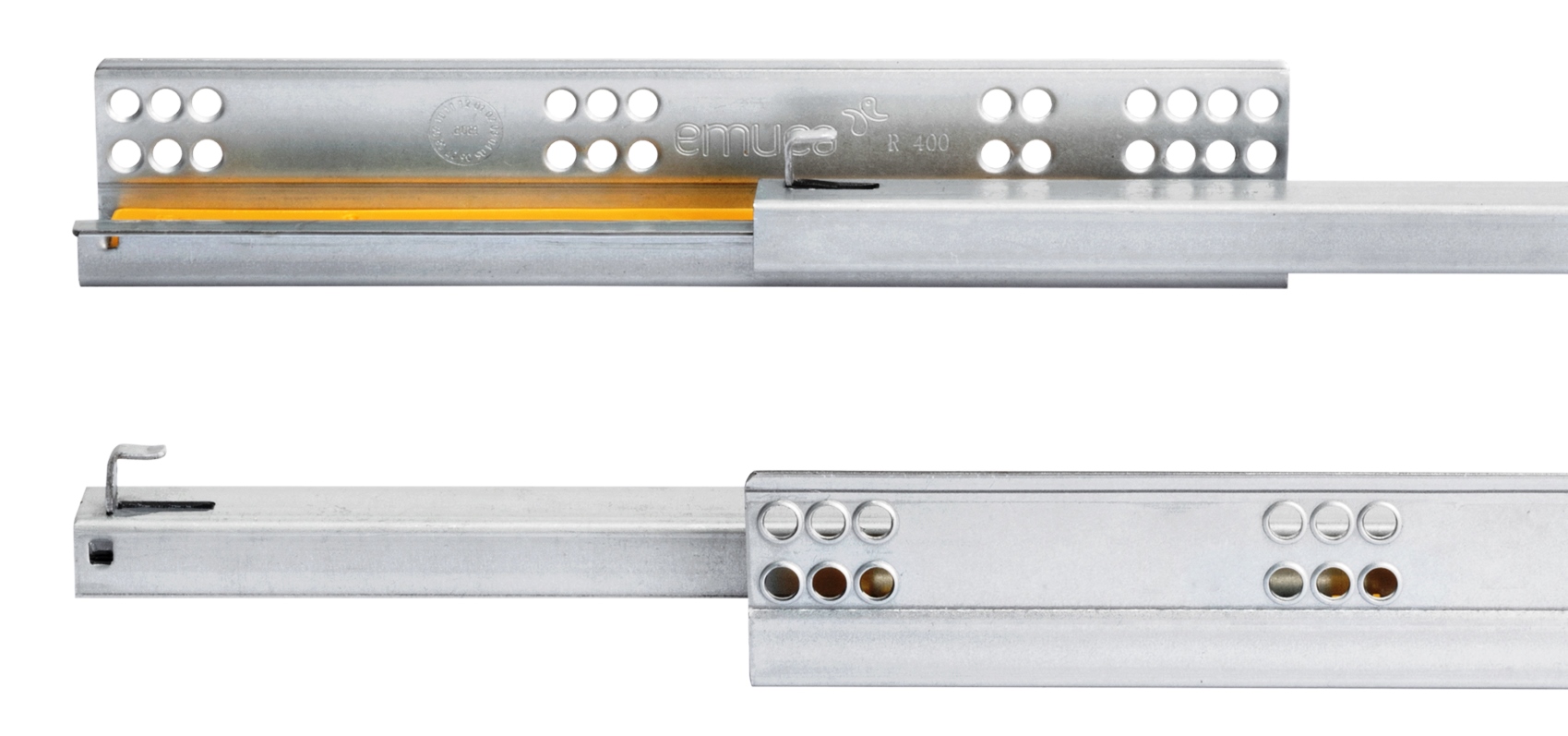

High-quality underfloor pull-outs, made of robust steel, surface: galvanized, 3019405, size: 450 mm (17-23/32″), version: partial extension with soft-close, load capacity: 25 kg (56 lbs)
Application:
High-quality underfloor pull-outs for wooden drawers, wooden drawers, wooden shelves and much more.
The concealed underfloor runners 3019405 are perfect for most drawers in the living room and kitchen.
The integrated wheels ensure smooth running and very smooth.
An integrated lock prevents the pull-out from being unhooked unintentionally.
The load capacity of the underfloor runners 3019405 is 25 kg (56 lbs).
The vertical adjustment of +5.0 mm makes it easier to adjust fronts exactly.
Made of galvanized steel, the underfloor pull-outs are robust and durable.
These guide rails offer partial extension, self-closing and soft close for comfortable and quiet closing.
The high-quality underfloor runners 3019405 are ideal for, among other things:
- Kitchen furniture
- Bathroom
- Home furniture
- Office containers
- Sideboards
- Chests of drawers
- Closets
- Workshop cabinets
- Storage cabinets
- Wooden drawer
- Wooden drawer
- Wooden shelf
Material:
- The underfloor runners 3019405 are made of robust steel
- Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings
Surface:
- Galvanized
- The galvanized surface protects against rust and corrosion
Assembly:
- Fastening is done with chipboard screws ⌀3.5 x 16 mm, pan head (not included)
- In the rear wall of the drawer, 2 holes with a diameter of ⌀6.5 mm (1/4″) and a depth of 10 mm (25/64″) must be made
- The hole should be 7 mm (9/32″) from the side wall and 11 mm (7/16″) from the bottom of the drawer
- Under the drawer side walls, 2 holes with a diameter of ⌀6.5 mm (1/4″) must also be made (for more details, see assembly drawing)
Features:
- Design: Partial pull-out with soft-close
- Weight: 1145 g
- Load capacity (load capacity): 25 kg (56 lbs)
- Size: 450 mm (17-23/32″)
- Available in 8 nominal lengths: 250 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mm, 550 mm and 600 mm
- Available in 3 versions: Soft-Close with self-closing full extension, Soft-Close with self-closing partial extension and Push-to-open partial extension
- Easy installation, stable
- Drawer depth: 440 mm (17-21/64″)
- Maximum side thickness: 16 mm (5/8″)
- Height adjustment: + 5.0 mm (11/64″)
- Galvanized
- steel, robust
- High brand quality from UMAXO®
For more dimensions and details , see technical drawing.
The dimensions:
- Length of the underfloor runners: 450 mm (17-23/32″)
Included in delivery:
- 1 pair of underfloor runners 3019405 made of robust steel, galvanized, version: partial extension with soft-close
- This item does not include mounting screws
Manufacturer’s reference number:
- Article ID: 3019405
- EAN number: 8432393127057
Manufacturer: EMUCA
