2 pieces heavy duty furniture hinges J95 for extra heavy doors up to 25 kg! Incl. Mounting plates. heavy duty pot hinge, furniture hinge with pot size 40 mm by LAMP® / Japan (surface mounted)

£ 62,99£ 71,99

Description

Two pieces heavy duty furniture hinges for extra heavy doors up to 25 kg, incl. Click mounting plates (surface mounted)

Two pieces heavy duty pot hinges (furniture hinge) with pot size 40mm from LAMP® (Sugatsune) / Japan

Heavy duty furniture hinges are perfect for heavy doors, such as large cabinet doors in homes or retail stores.

Some application examples:

  • Door for walk-in closets
  • Door for storage rooms
  • Extra wide doors

Maximum door weight and door width:

  • up to 25 kg (door width: up to 80 cm) with two furniture hinges
  • up to 40 kg (door width: up to 90 cm) with three Furniture hinges

Advantages compared to “conventional” furniture straps:

  • heavy doors can be installed with only two heavy-duty furniture hinges, for which approx. 7 conventional furniture hinges are needed
  • easier installation, as a smaller number of furniture straps is required
  • Easier adjustment or adjustment of the door due to smaller number of furniture hinges

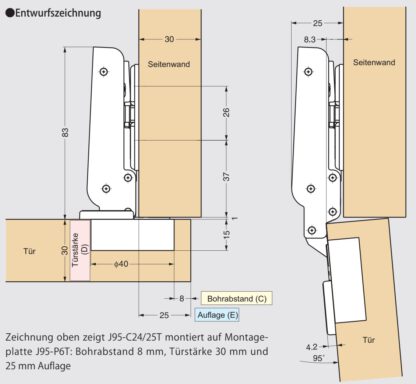

Features:

  • Opening angle: 95
  • Door height / door size: up to 2,400 mm
  • Depth adjustment: +1.5 mm / -2.5 mm
  • Height adjustment: ±3 mm
  • Support adjustment: -4 mm
  • Quick assembly thanks to click technology
  • Support: 25 mm (overlying)
  • Pot size: 40 mm
  • Cup hole depth: 15 mm

The scope of delivery includes:

  • 2 x heavy duty furniture straps
  • 2 x clip mounting plates
  • 12 x raised countersunk head fixing screws, size 5 x 18 mm

Watch video

Manufacturer: SUGATSUNE / Lamp (Japan)

Additional information

Farbe

Black-Nickel, Nickel

Automatic

With guard locking (not for push-to-open), Without guard locking (for push-to-open)
