Description
2 pieces compact space-saving magnetic snap latch, made of metal and robust plastic (metal and plastic), surface: brown, ML-30SBR, size: 25 mm (63/64″)
Application:

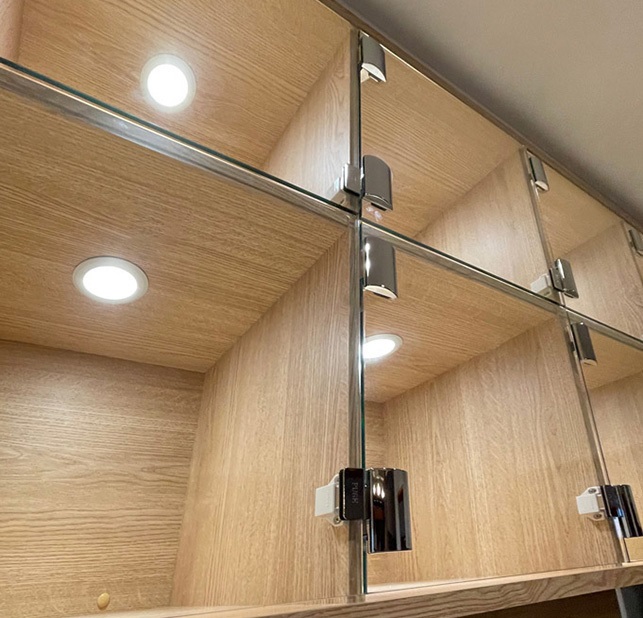

Space-saving push-to-open door opener for furniture doors, cabinet doors and much more.
The ML-30SBR magnetic snap latch enables the convenient opening and closing of handle-free furniture doors at the touch of a button.
The ML-30SBR push-to-open door opener has a plunger extension of 8.5 mm (21/64″).
Thanks to its compact plastic housing, the ML-30SBR magnetic flycatcher can be inconspicuously screwed to the carcass side.
The counter plate of the ML-30SBR magnetic snap latch has 4 pointed pins at the corners, which mortise into the wood surface. This allows the counter plate to be securely attached with just one screw.
The high-quality magnetic snap latches 140-050-055 are ideal for, among other things:
- Cabinet flaps
- Kitchen cabinet doors
- Bathroom furniture doors
- Furniture doors
- Doors
Material:
- The magnetic snap latches 140-050-055 are made of metal and robust plastic (metal and plastic)
- The combination of metal and plastic provides an optimal balance of strength and flexibility, making the fittings robust and adaptable at the same time
- In addition, this combination of materials allows for improved aesthetics and functionality, as it offers both stability and a variety of design options
Surface:
- Brown
- Brown gives a feeling of warmth and comfort, which creates a cozy and inviting atmosphere, ideal for living and dining areas
- Brown pairs well with wood, and is a versatile, neutral color that pairs well with other colors and materials, exuding timeless elegance
Assembly:
- The fastening is done using the three screws included in the scope of delivery (wood screws 3.1 x 13 mm (2 pieces of round head wood screw and 1 piece of countersunk wood screw))
- The ML-30SBR magnetic snap latch has 2 mounting holes
- The distance between the mounting holes is 32 mm (1-17/64″)
- The latch is screwed onto the side of the body
- The minimum distance between the door and the furniture body is 4 mm (for more details, see assembly drawing)
Features:
- Weight: 22.5 g
- Load capacity (load capacity): 11.8 N (1.3 kp)
- Size: 25 mm (63/64″)

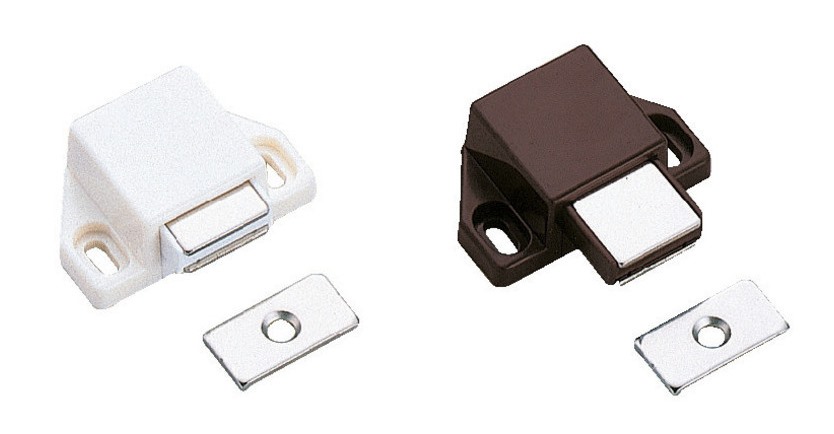

- Available in two colours: white and brown
- Easy installation, practical, stable
- Extension distance of plunger: 8.5 mm (21/64″)
- Minimum door gap: 4 mm
- brown
- robust
- high brand quality of Sugatsune / LAMP®
For more dimensions and details, see technical drawing.
The dimensions:
- Width of the magnetic snappy: 43 mm (1-11/16″)
- Depth of the magnetic snap catcher: 25 mm (63/64″)
- Height: 16 mm (5/8″)
- Mounting plate width: 23 mm (29/32″)
- Mounting plate depth: 12 mm (15/32″)
Included in delivery:

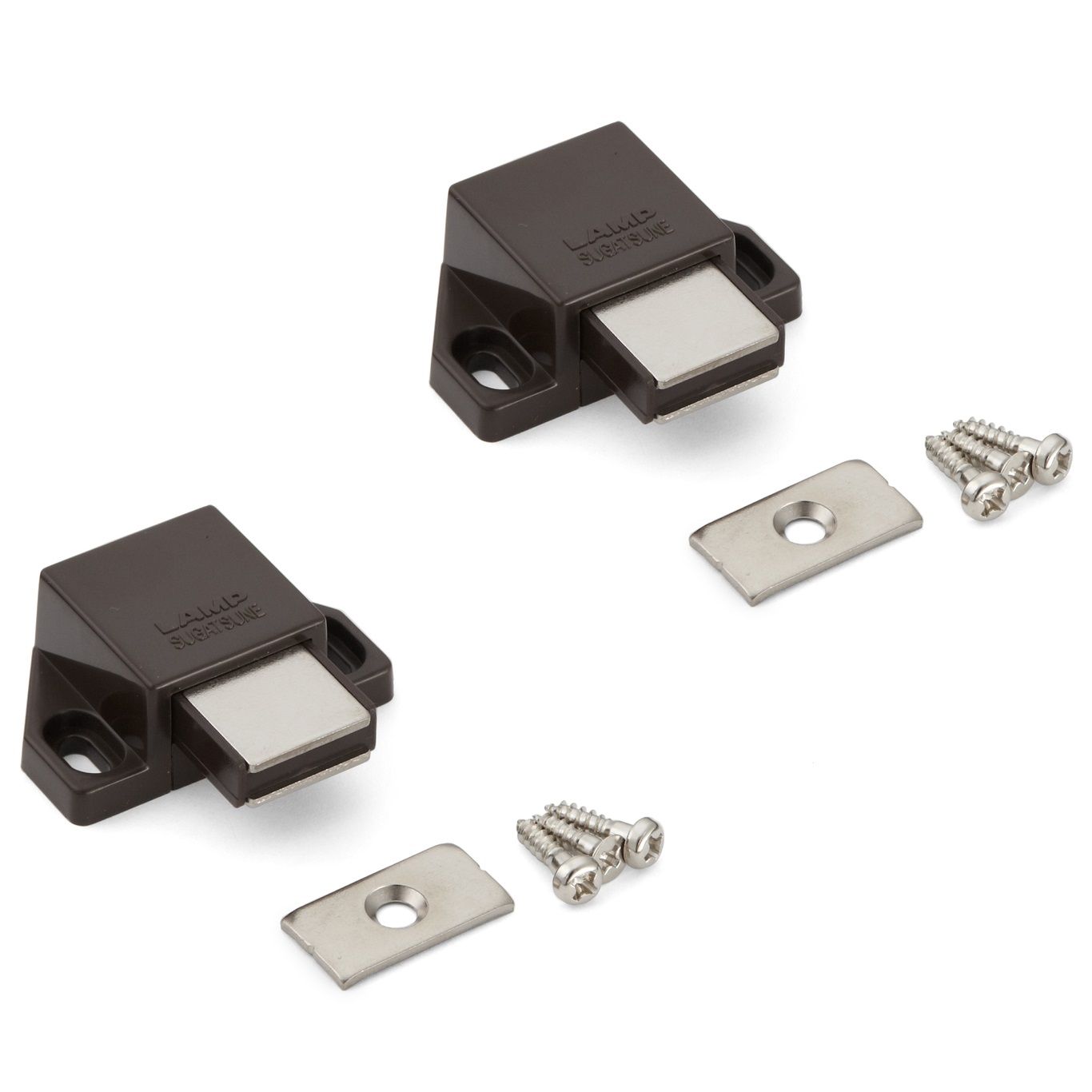

- 2 pieces of magnetic snap latches 140-050-055 made of metal and robust plastic, brown
- 1 piece counter plate made of steel, nickel-plated
- 2 times: 3 pieces of wood screws 3.1 x 13 mm (2 pieces of round head wood screw and 1 piece of countersunk wood screw)
Manufacturer’s reference number:
- Article ID: 140-050-055
- Item number: ML-30SBR
- EAN number: 4510932016957
Manufacturer: Sugatsune / LAMP® (Japan)
