2 pieces of high-quality heavy-duty mounting bracket, load capacity: 130 kg (287 lbs), surface: umber, 480 mm (18.9″), BTK-480UM. Heavy-duty shelving bracket for shelf, partition, shelf, corner connection and much more, by Sugatsune / LAMP® (Japan)

$ 199,99

$ 100,00 / piece

In stock

Description

Two pieces of high-quality 14 mm heavy duty mounting bracket, made of robust steel, surface: umber, BTK-480UM, size: 480 mm (18.9″), load capacity: 130 kg (287 lbs)

Application:

Heavy-duty shelf brackets for shelves, partitions, shelves, corner joints and much more.

blank
High Quality Heavy Duty Mounting Bracket, BTK-480UM, 480 mm, by Sugatsune, Load Capacity: 130 kg (287 lbs), Umbra. Application example



The BTK-480UM heavy-duty mounting brackets are made of solid 14 mm (35/64″) thick steel. The BTK-480UM shelf brackets combine high load capacity and modern design.

blank
High Quality Heavy Duty Mounting Bracket, BTK-480UM, 480 mm, by Sugatsune, Load Capacity: 130 kg (287 lbs), Umbra. Application example in the kitchen



The supplied screws also have the surface colour umber, matching the surface colour of the heavy-duty mounting bracket. One of the special features of the BTK-480UM Heavy Duty Mounting Bracket is that the angle between the wall and the shelf is not rounded, and it is exactly 90 degrees, which means that there is no gap in the corner between the Heavy Duty Shelf Bracket and the wall.

blank
High Quality Heavy Duty Mounting Bracket, BTK-480UM, 480 mm, by Sugatsune, Load Capacity: 130 kg (287 lbs), Umbra. Available in seven sizes: 86 mm, 120 mm, 180.5 mm, 240 mm, 300 mm, 380 mm and 480 mm



The BTK-480UM heavy-duty shelf bracket is very stable, has an excellent load capacity of 130 kg (287 lbs), and a support surface length of 480 mm (18.9″). The high-quality BTK-480UM heavy-duty mounting brackets are ideal for, among other things:

  • Shelf
  • Tray
  • Partition
  • Shelf
  • Corner connection

Material:

  • The BTK-480UM heavy-duty mounting brackets are made of robust steel
  • Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings

Surface:

  • Umbra
  • The color umber is an earthy, warm brown with a slightly reddish or grayish undertone reminiscent of natural materials such as earth or stone
  • Umber creates a warm, grounded atmosphere and gives rooms a calming, natural feel
  • The colour Umber can be combined in many ways and harmonises with both neutral and bold colours, making it ideal for stylish, timeless interiors
blank
High Quality Heavy Duty Mounting Bracket, BTK-480UM, 480 mm, by Sugatsune, Load Capacity: 130 kg (287 lbs), Umbra. Available in four colours: matt stainless steel, white, black and umber



Assembly:

blank
High Quality Heavy Duty Mounting Bracket, BTK-480UM, 480 mm, by Sugatsune, Load Capacity: 130 kg (287 lbs), Umbra. Assembly drawing for vertical mounting, e.g. as a shelf support



  • Fastening is done using the eight screws included in the scope of delivery (countersunk wood screws: two pieces 5 x 30 mm, two pieces 5 x 40 mm, three pieces 5 x 50 mm and 1 piece 5 x 60 mm)
  • The BTK-480UM heavy-duty shelving brackets can be mounted both vertically and horizontally, e.g. for partition walls (see below the drawing for horizontal mounting)
  • The BTK-480UM heavy-duty mounting brackets have eight mounting holes with a diameter of ⌀5.5 mm (7/32″), with countersink (for more details, see assembly drawing)
blank

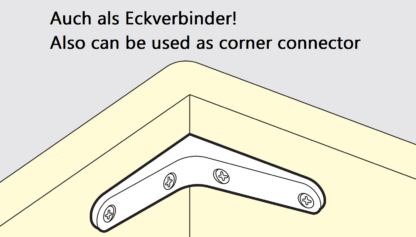

High Quality Heavy Duty Mounting Bracket, BTK-480UM, 480 mm, by Sugatsune, Load Capacity: 130 kg (287 lbs), Umbra. Assembly drawing for horizontal mounting, e.g. as corner connectors



Features:

  • Weight: 1230 g
  • Load capacity (load capacity): 130 kg (287 lbs) – for two pieces
  • Size: 480 mm (18.9″)
  • Available in seven sizes: 86 mm, 120 mm, 180.5 mm, 240 mm, 300 mm, 380 mm and 480 mm, as well as four colours: matt stainless steel, white, black and umber
  • Easy to assemble
  • Practical
  • stable
  • Material thickness: 14 mm (35/64″)
  • Clean image due to the surface color umber of the screws, which is identical to the surface color of the heavy-duty mounting bracket
  • Umbra
  • Steel
  • robust
  • high brand quality of Sugatsune / LAMP®

For more dimensions and details, see technical drawing.

The dimensions:

  • Heavy-duty mounting bracket height: 480 mm (18.9″)
  • Width: 30 mm (1-3/16″)
  • Depth: 400 mm (15-3/4″)
  • Material thickness: 14 mm (35/64″)
blank
High Quality Heavy Duty Mounting Bracket, BTK-480UM, 480 mm, by Sugatsune, Load Capacity: 130 kg (287 lbs), Umbra. Technical drawing



Included in delivery:

  • Two Pieces Heavy Duty Mounting Bracket BTK-480UM made of Sturdy Steel, Umber
  • Eight pieces of countersunk wood screws: two pieces 5 x 30 mm, two pieces 5 x 40 mm, three pieces 5 x 50 mm and 1 piece 5 x 60 mm made of steel

Manufacturer’s reference number:

  • Article ID: 120-030-195
  • Item number: BTK-480UM
  • EAN number: 4510932730921

Manufacturer: Sugatsune / LAMP® (Japan)

SUGATSUNE, The manufacturer of the brand LAMP®
