Description

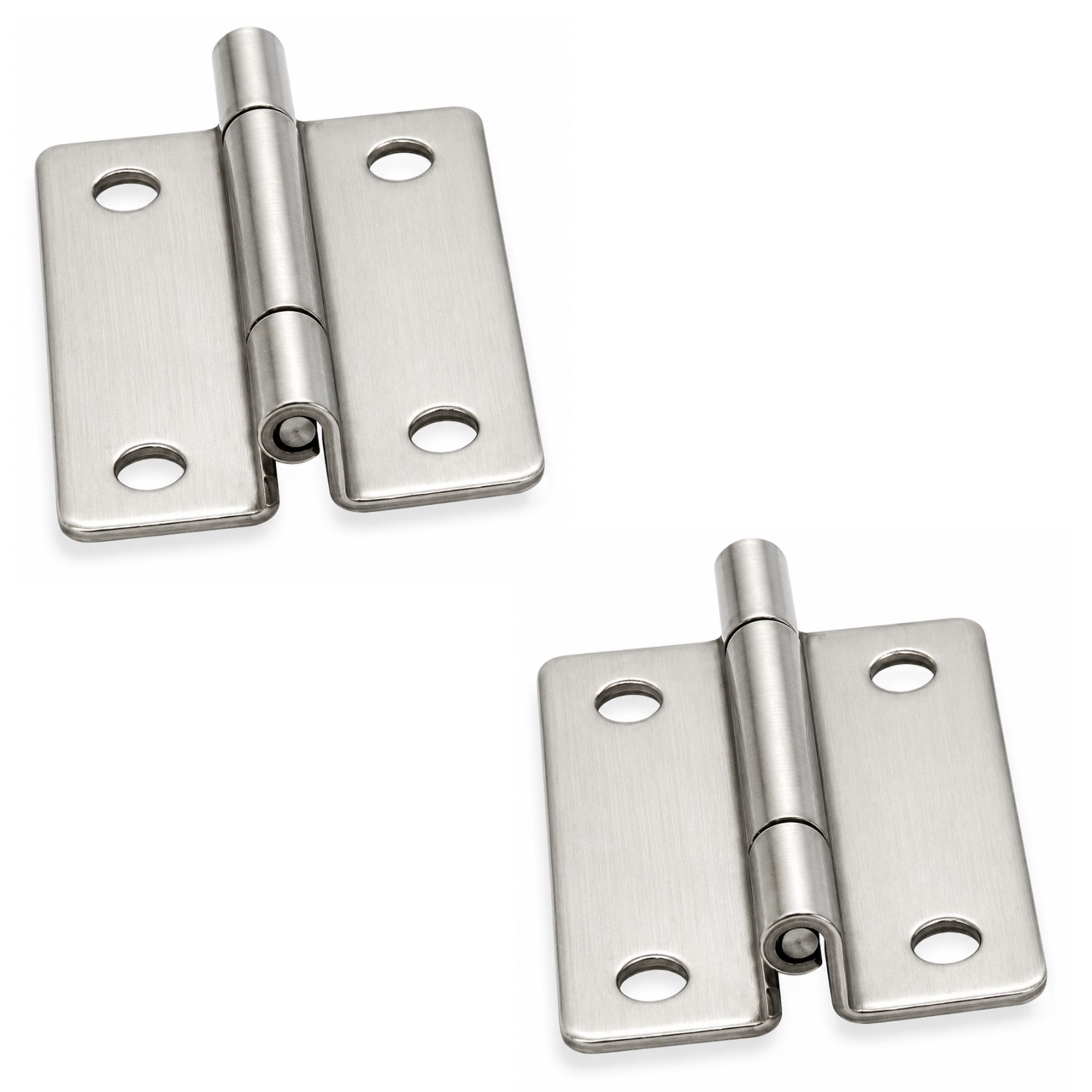

2 pieces compact offset hinge, made of solid stainless steel SUS304 (V2A or 1.4301), surface: glossy polished, TH-25SUS (2233), height: 35 mm (1-3/8″), load capacity: 4.5 kg (10 lbs)
Application:
Robust offset hinge for thick doors, enclosure doors, maintenance hatches and much more.

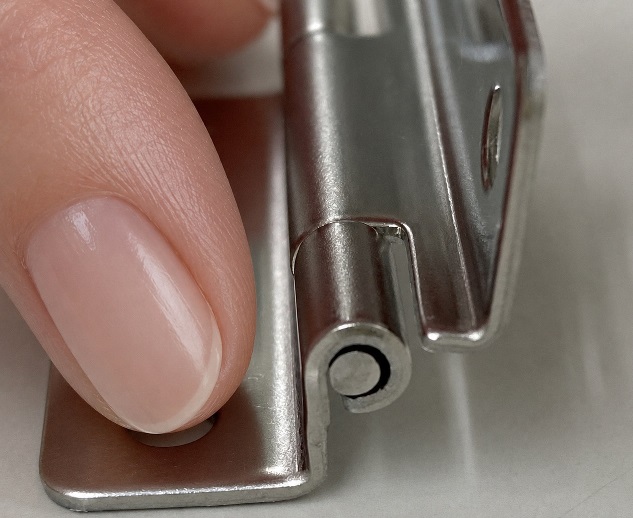

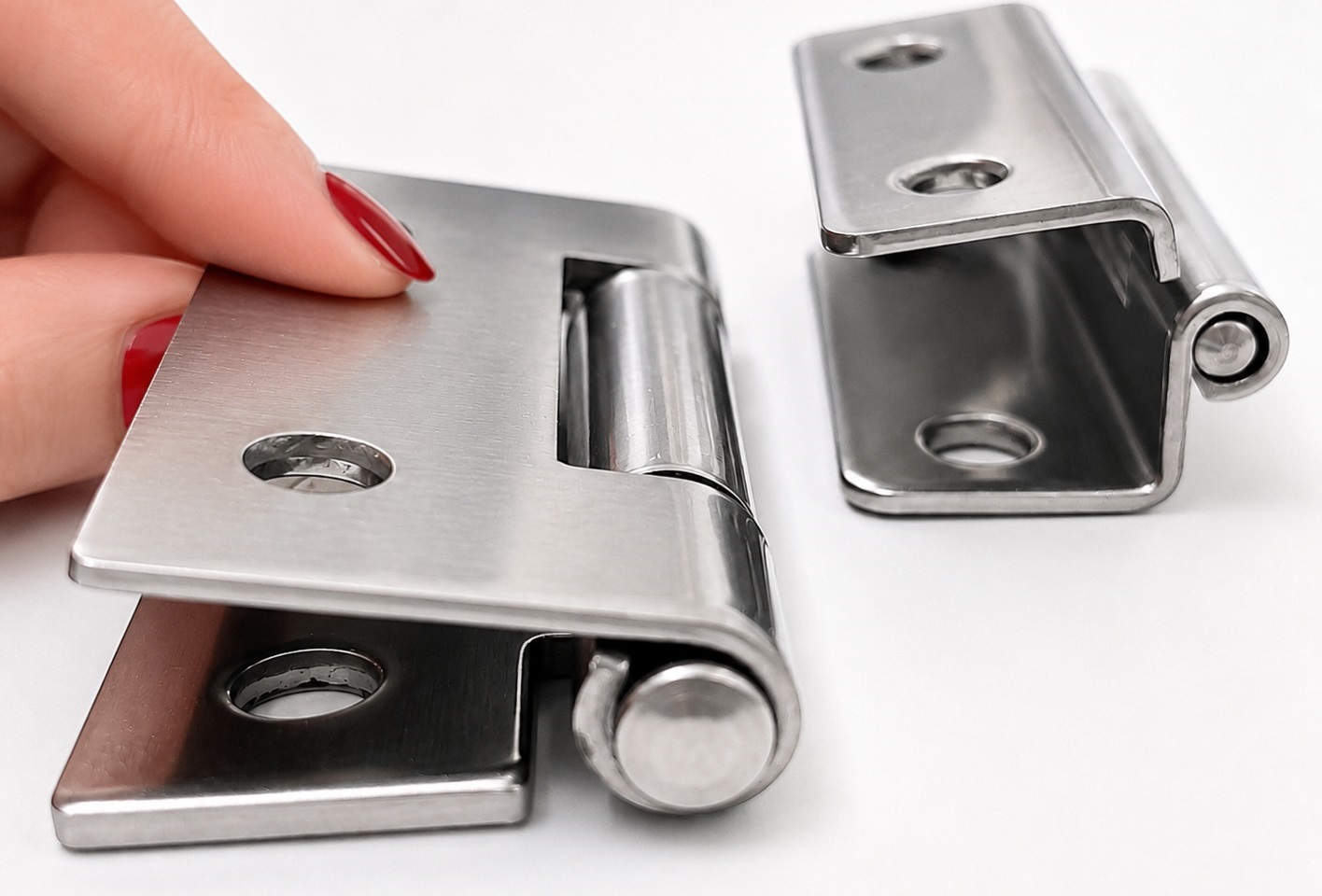

The TH-25SUS (2233) crank hinge connects doors and flaps to housings where the mounting surfaces are not in the same plane due to a step or greater material thickness.
Due to the offset construction, it bridges the offset between the door and the frame and enables a clean and space-saving hinge connection.
The compact design of 35 mm (1-3/8″) x 25 mm (63/64″) is particularly suitable for smaller appliance, enclosure and maintenance doors.
All essential components, including the hinge pin, are made of SUS304 stainless steel, providing high corrosion resistance.
The polished hinge sashes also ensure a high-quality and easy-to-clean surface.
When using two hinges, Tochigiya specifies a reference door mass of 4.5 kg, which makes the TH-25SUS (2233) offset hinge particularly suitable for lightweight doors and flaps.
The high-quality TH-25SUS offset hinges are ideal for, among other things:
- Offset doors
- Measuring instruments
- Communication Devices
- Machine housing
- Device Enclosures
- Control cabinets
- Equipment doors
- thick doors
- Enclosure doors
- Maintenance hatches
Material:
- The TH-25SUS crank hinges are made of solid SUS304 stainless steel (V2A or 1.4301)
- SUS304 stainless steel is characterized by its high corrosion resistance and durability, which makes it ideal for use in demanding environments
- In addition, it offers an attractive interface that is both modern and easy to maintain
Surface:
- Shiny polished
- Glossy polished surfaces on furniture fittings and components improve aesthetics and give them a high-quality, elegant appearance
- In addition, the smooth surface makes cleaning easier and ensures less adhesion of dirt and dirt
Assembly:
- Fastening is done with M3 pan head screws made of stainless steel A2 or 3.0 x 12 mm or 3.0 x 16 mm pan head wood screws (not included)
- The TH-25SUS crank hinge has 4 mounting holes
- First, the positions of the two hinge sashes on the door or flap and on the frame must be precisely determined and the four attachment points must be marked according to the hole spacing of 15 mm (19/32″) x 25 mm (63/64″)
- The required holes or threads are then prepared
- The step hinge is attached to the door and frame with two fastening screws per hinge leaf
- The offset shape must be aligned in such a way that the existing offset between the two mounting levels is compensated
- Before the screws are finally tightened, the door and frame must be aligned with each other and the free rotational movement of the hinge must be checked
- For a door mass up to the reference value of 4.5 kg specified by the manufacturer, two TH-25SUS crank hinges are provided.
Features:
- Weight: 10 g (for 2 pieces: 20 g)
- Load capacity (load capacity): 4.5 kg (10 lbs) – for 2 pieces
- Height: 35 mm (1-3/8″)
- Easy installation, stable
- Offset or stepped design
- Suitable for thick and recessed doors
- Hinge pin also made of SUS304
- Four mounting holes of ⌀3.5 mm (9/64″)
- Suitable for technical devices and housings
- RoHS2 compliant
- TSCA-PBT5 compliant
- Shiny polished
- Weather-resistant, rust-free or corrosion-resistant
- High brand quality of TOCHIGIYA®

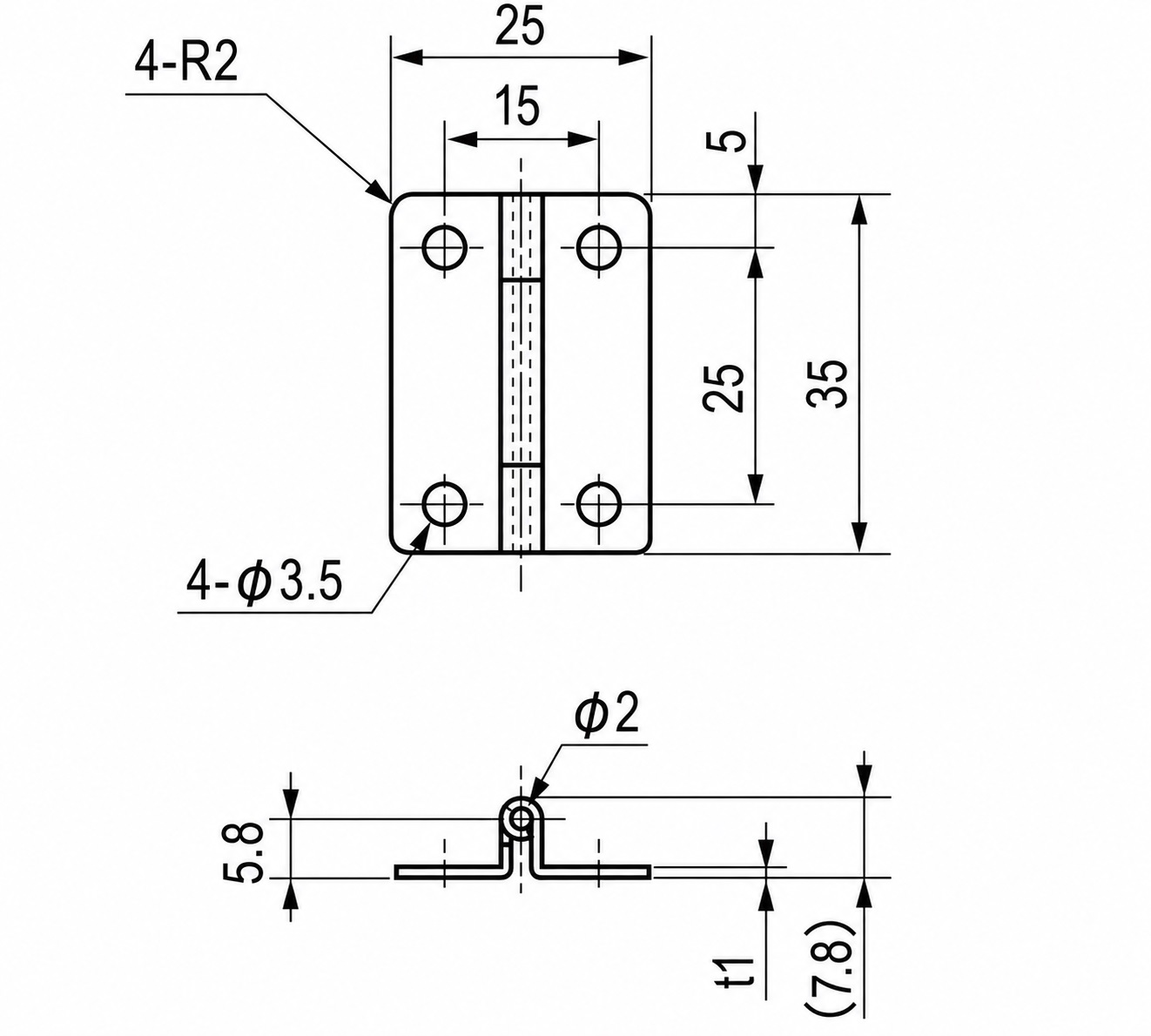

For more dimensions and details , see technical drawing.
The dimensions:
- Overall height: 35 mm (1-3/8″)
- Overall width: 25 mm (63/64″)
- Material thickness: 1 mm (3/64″)
- Horizontal hole spacing: 15 mm (19/32″)
- Vertical hole spacing: 25 mm (63/64″)
- Distance between the center of the hole and the outer edge: 5 mm
- Mounting hole diameter: 4 x ⌀3.5 mm (9/64″)
- Corner radius: 4 x R2 mm
- Pin Diameter: ⌀2 mm (5/64″)
Included in delivery:
- 2pcs TH-25SUS (2233) Solid Stainless Steel SUS304 Crank Hinge, Glossy Polished, 1-3/8″ (35mm)
- This item does not include mounting screws
Manufacturer’s reference numbers:
- Article ID: 2233
- Item number: TH-25SUS
Manufacturer: TOCHIGIYA (Japan)
