Description

4 pieces robust furniture adjuster, made of robust polyacetal (POM), surface: white, B571-19-WH, diameter: ⌀19 mm (3/4″), version: standard, load capacity: 400 kg (882 lbs)

Application:

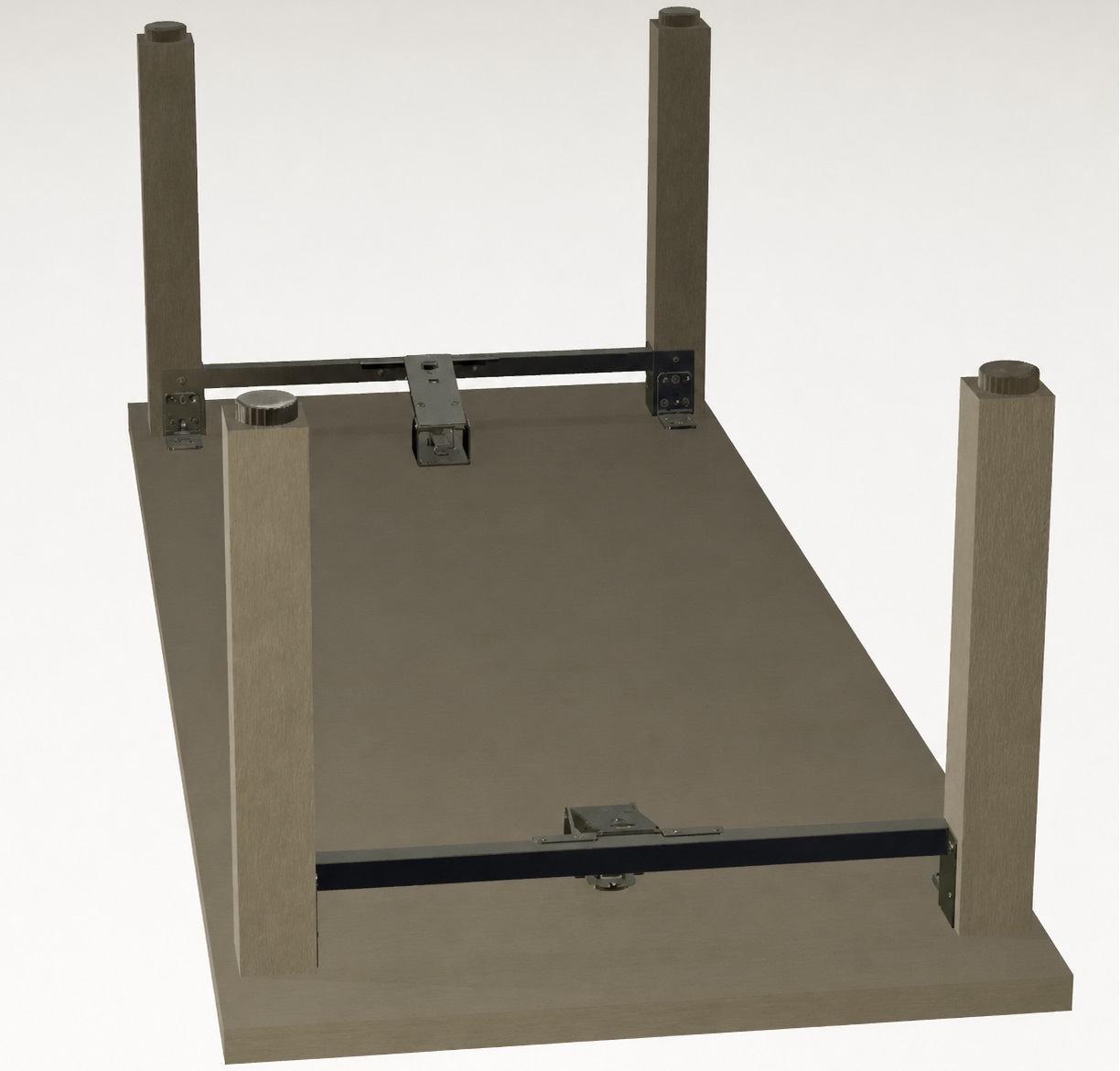

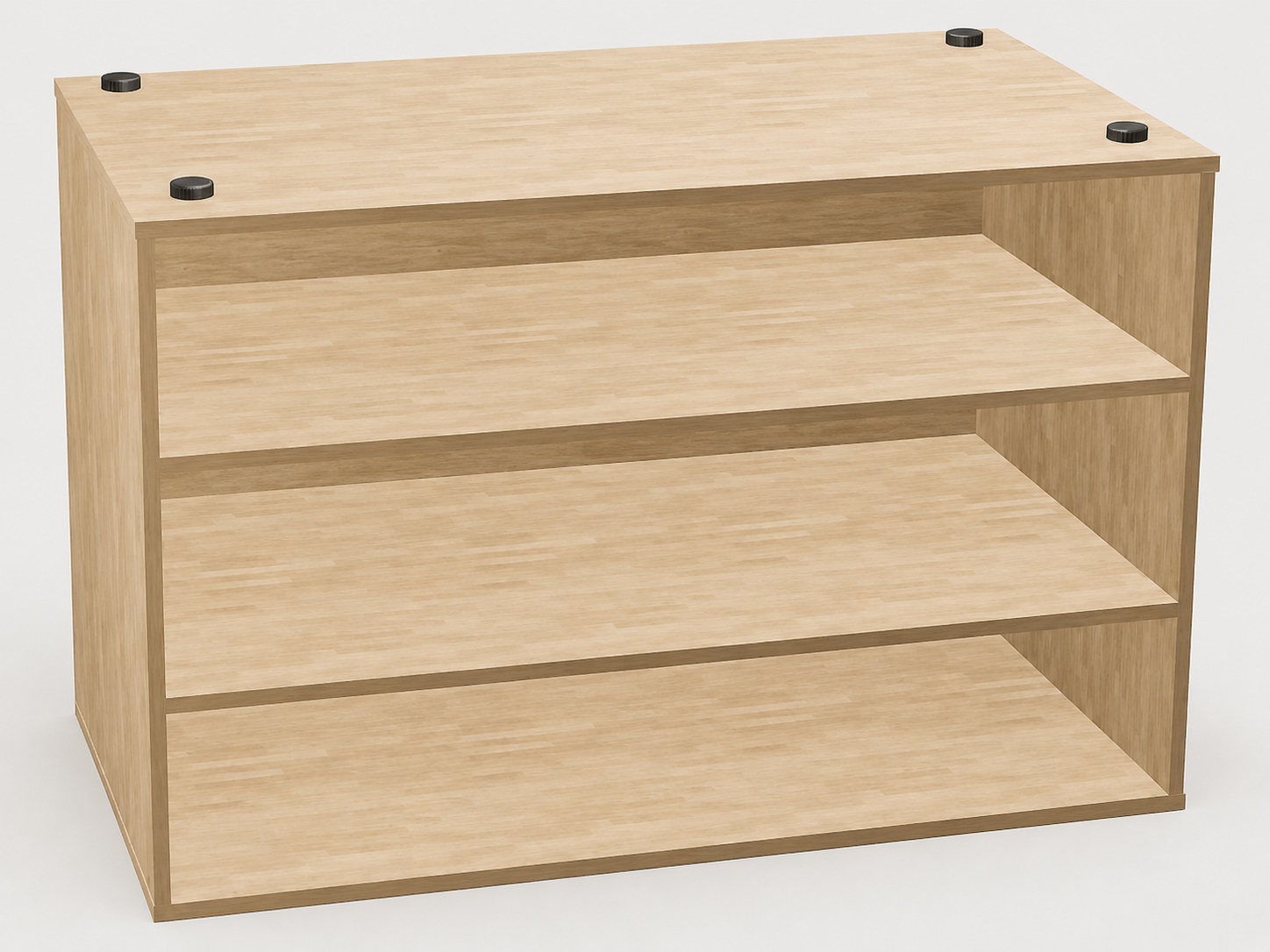

Adjustable foot for table legs, furniture legs, cabinet feet and much more.



The B571-19-WH furniture adjuster is a compact furniture adjuster for height compensation on furniture and fixtures in indoor areas.

It is mounted on the surface and therefore does not require any time-consuming milling or processing of the furniture.

The 5 mm (13/64″) adjustment range helps to compensate for small unevenness in the floor and to keep furniture stably aligned.



The POM material is robust and particularly suitable for applications where an inconspicuous and lightweight plastic solution is desired.

Due to its compact design with ⌀19 mm (3/4″), the B571-19-WH adjustable leg fits well with table legs, cabinet legs, pedestals and small furniture constructions.

This item is the standard version.



The high-quality B571-19-WH furniture adjusters are ideal for, among other things:

• Table
• Cupboard
• Sofa
• Shelf Feet
• Socket
• Small Furniture
• Built-in furniture
• Legs
• Furniture legs
• Cabinet feet

Material:

• The B571-19-WH furniture adjusters are made of robust polyacetal (POM)
• Polyacetal (POM) combines very high abrasion and wear resistance with a low friction coefficient, so that fittings function smoothly over the long term
• Thanks to its high dimensional and dimensional stability, even with changing humidity, the accuracy of fit of hinges, pull-outs or locks is maintained

Surface:

• White
• White finishes convey a clean and modern aesthetic
• The colour white reflects light effectively, making rooms look brighter and visually larger
• In addition, white objects are inconspicuous and easy to clean, which makes them particularly practical for everyday use

Assembly:

• Fastening is done with pan head screw ⌀3.5 mm screws (not included)
• The B571-19-WH adjustable foot has two mounting holes spaced 7 mm (9/32″). The mounting holes have a diameter of ⌀0.125984251968504
• The furniture adjuster is attached to the surface with two matching screws, without the need for milling into the wood

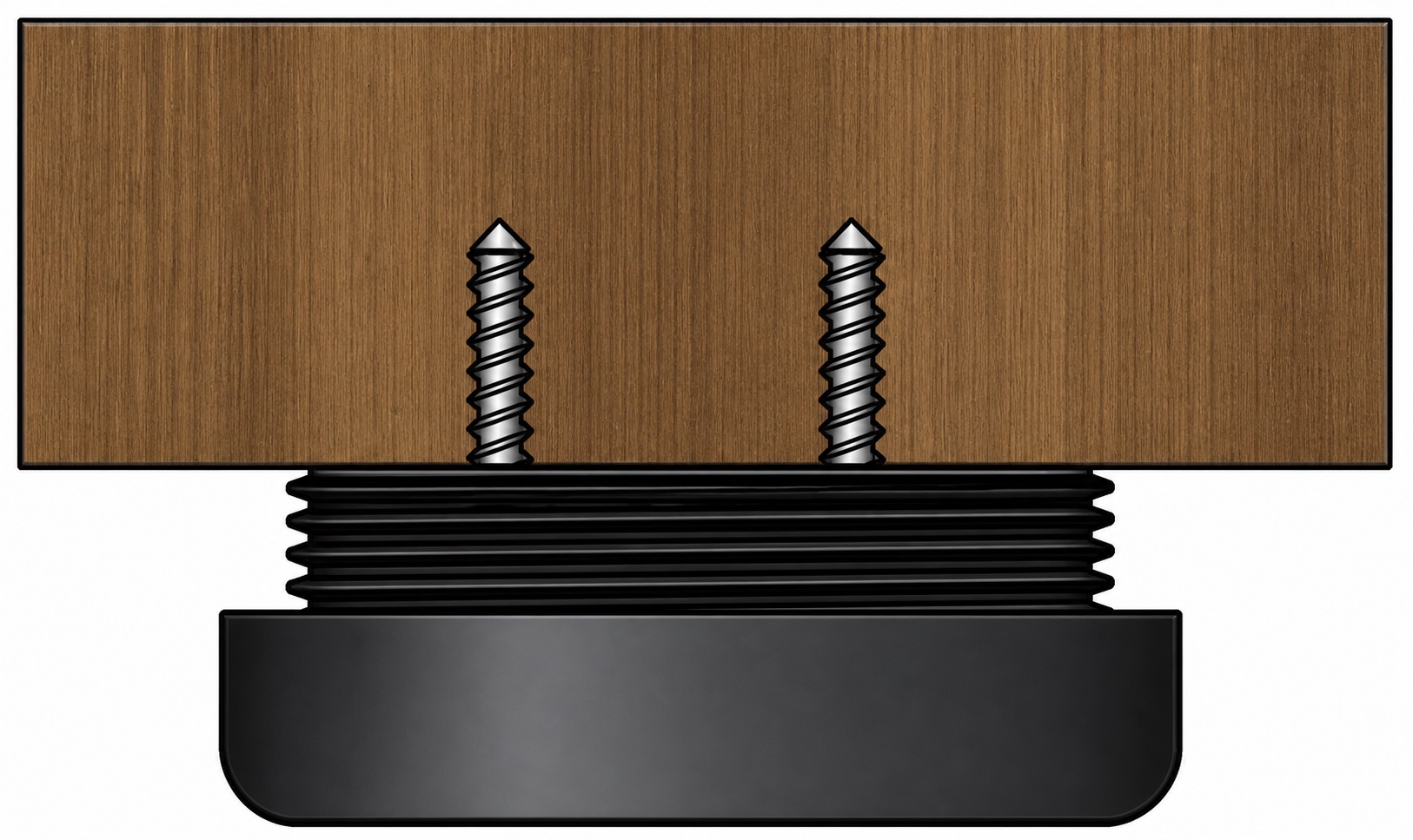

• Then the adjustment cap is placed on the adjustment foot or screwed on (for further details, see assembly drawing)



Features:

• Version: Standard
• Weight: 4 g
• Load capacity (load capacity): 400 kg (882 lbs) – for 4 pieces
• Diameter: ⌀19 mm (3/4″)

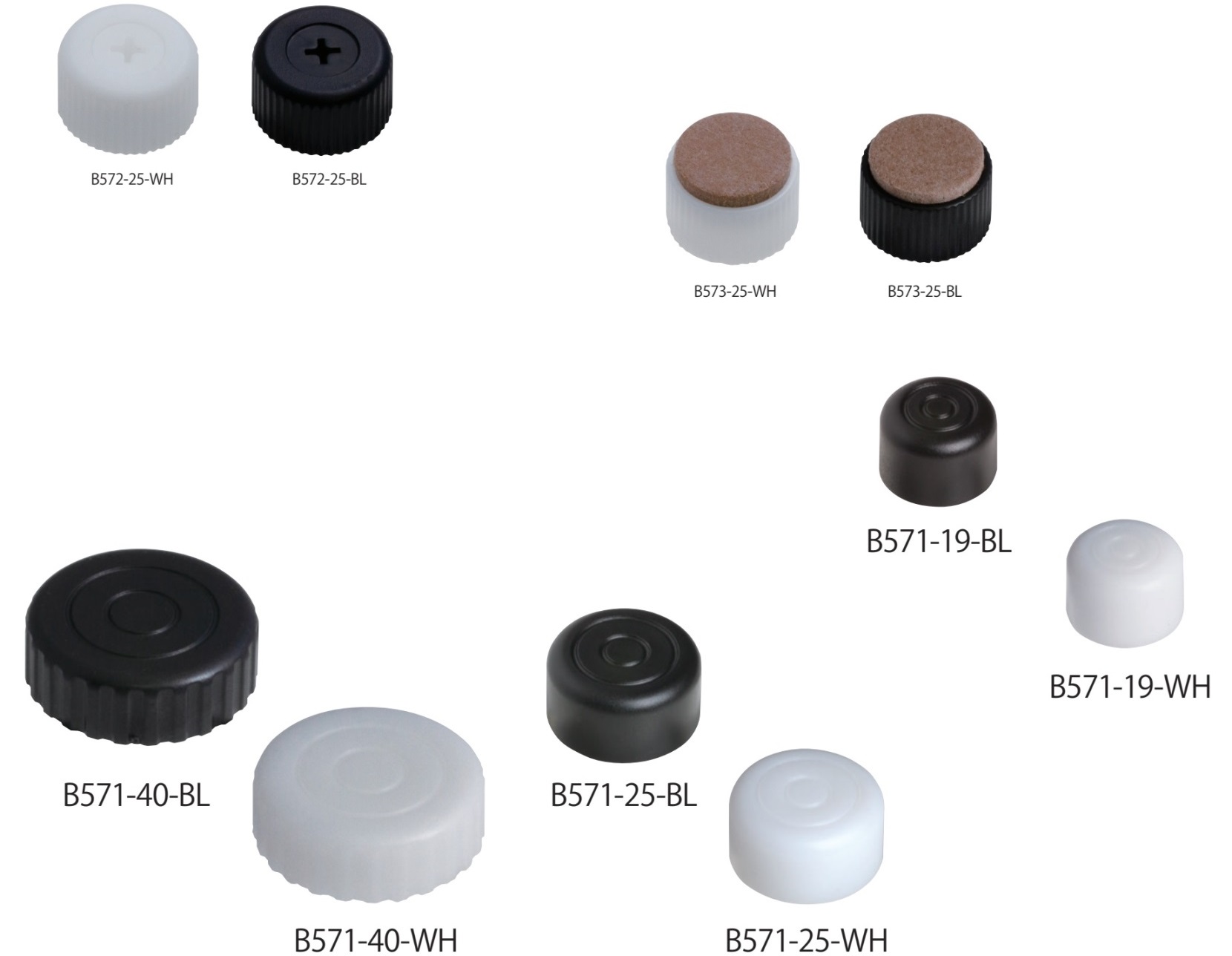

• Available in 2 surface colours: white and black
• Available in 3 diameters: ⌀ 19 mm, ⌀ 25 mm and ⌀ 40 mm
• Available in 3 versions: standard, with cross recess and with felt pad
• Easy installation, stable
• For indoor use
• Surface-mounted mounting without machining the wooden part
• Adjustment range: 5 mm (13/64″)
• Suitable for small and hard-to-reach mounting areas
• White
• robust, lightweight
• High brand quality from Kojima (Japan)

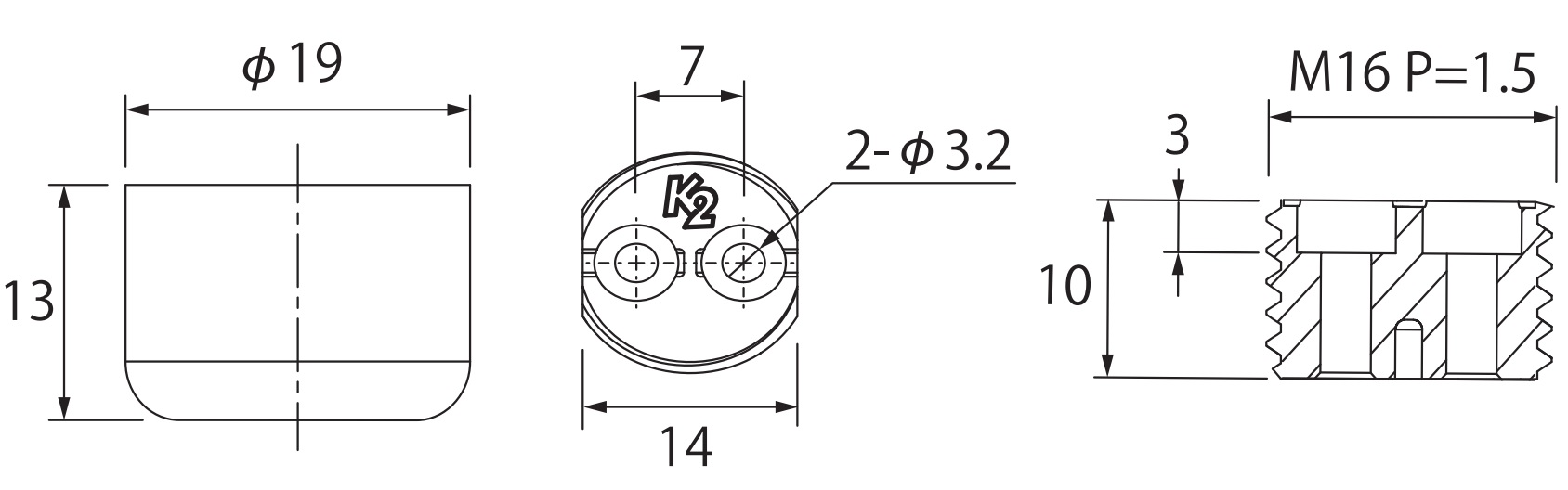

For more dimensions and details , see technical drawing.

The dimensions:

• Diameter of the furniture adjuster: ⌀19 mm (3/4″)
• Height: 10 mm (25/64″)
• Width: 7 mm (9/32″)
• Adjustable Cap Height: 13 mm (33/64″)



Included in delivery:

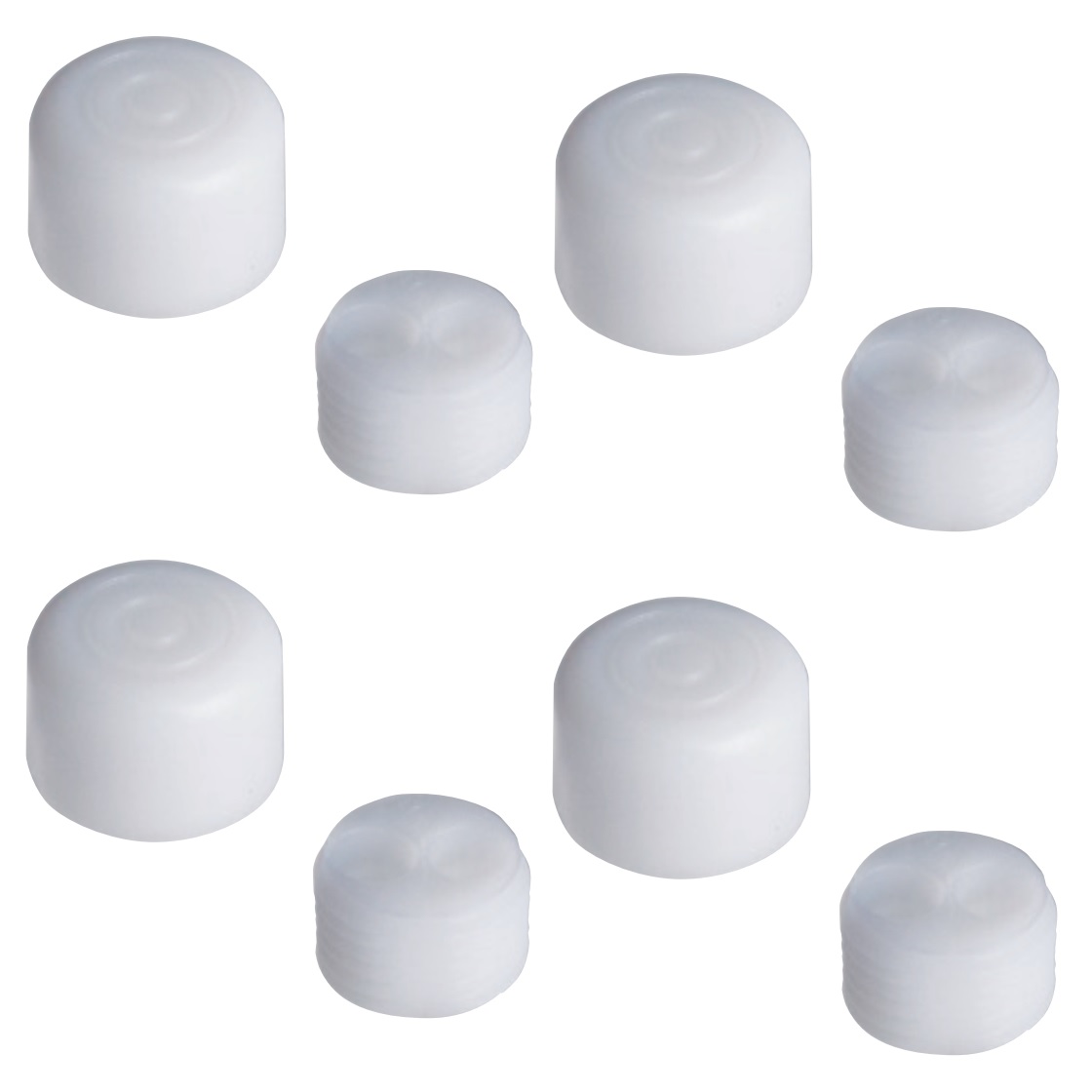

• 4 pieces furniture adjuster B571-19-WH made of robust polyacetal, white, 19 mm (3/4″), Version: Standard
• 4 pieces of adjustable cap
• This item does not include mounting screws

Watch product video:

Additional Information:

• Download assembly instructions

Manufacturer’s reference number:

• Article ID: B571-19-WH
• GTIN number (EAN, UPC): 0618455525513

Manufacturer: Kojima (Japan)
