Description
4 pieces robust furniture adjuster, made of robust polyacetal (POM), surface: black, B572-25-BL, diameter: ⌀25 mm (63/64″), version: with Phillips socket for screwdriver, load capacity: 600 kg (1323 lbs)
Application:
Adjustable foot for furniture and much more.
The B572-25-BL furniture adjuster is a compact furniture adjuster for height compensation on furniture and fixtures in indoor areas.
It is mounted on the surface and therefore does not require any time-consuming milling or processing of the furniture.
The 5 mm (13/64″) adjustment range helps to compensate for small unevenness in the floor and to keep furniture stably aligned.
The POM material is robust and particularly suitable for applications where an inconspicuous and lightweight plastic solution is desired.
Due to its compact design with ⌀25 mm (63/64″), the B572-25-BL adjustable leg fits well with table legs, cabinet legs, pedestals and small furniture constructions.

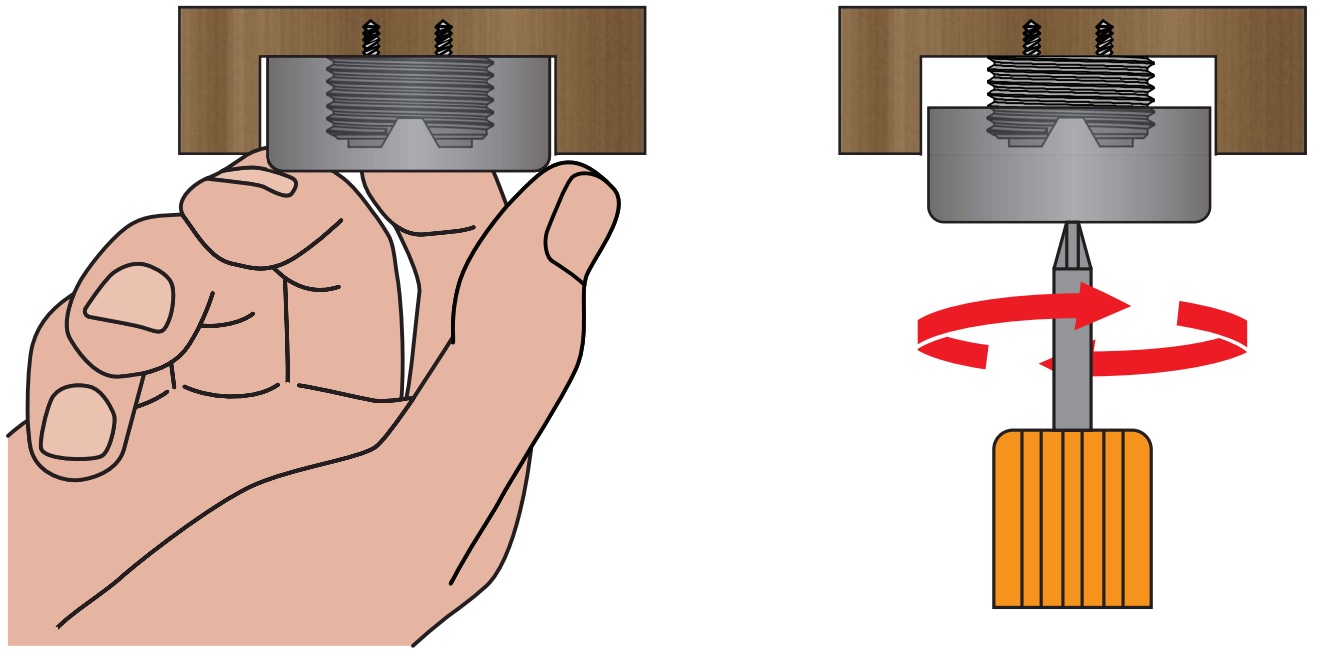

With Phillips recess for easy adjustment by screwdriver – ideal when adjustment by hand is not possible.

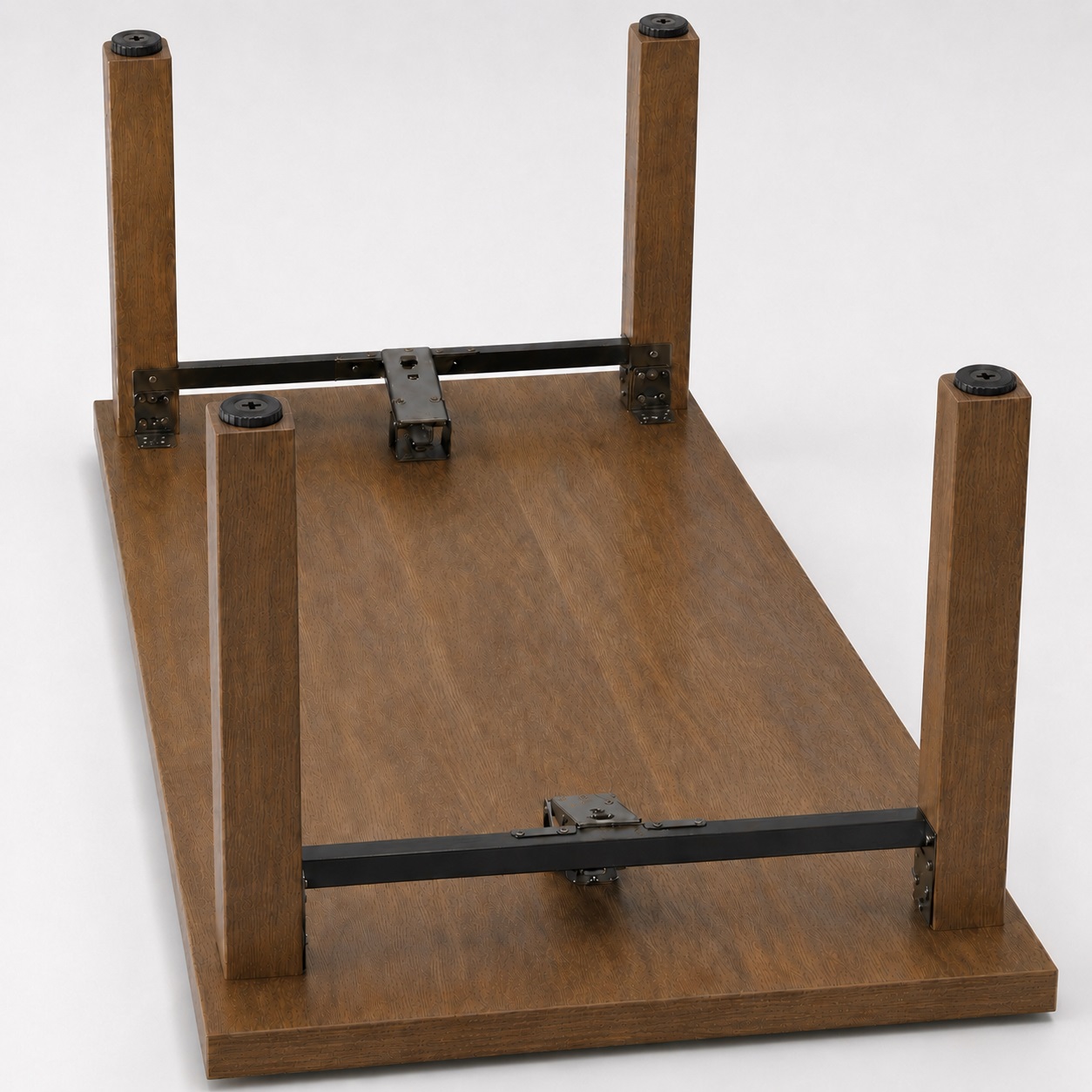

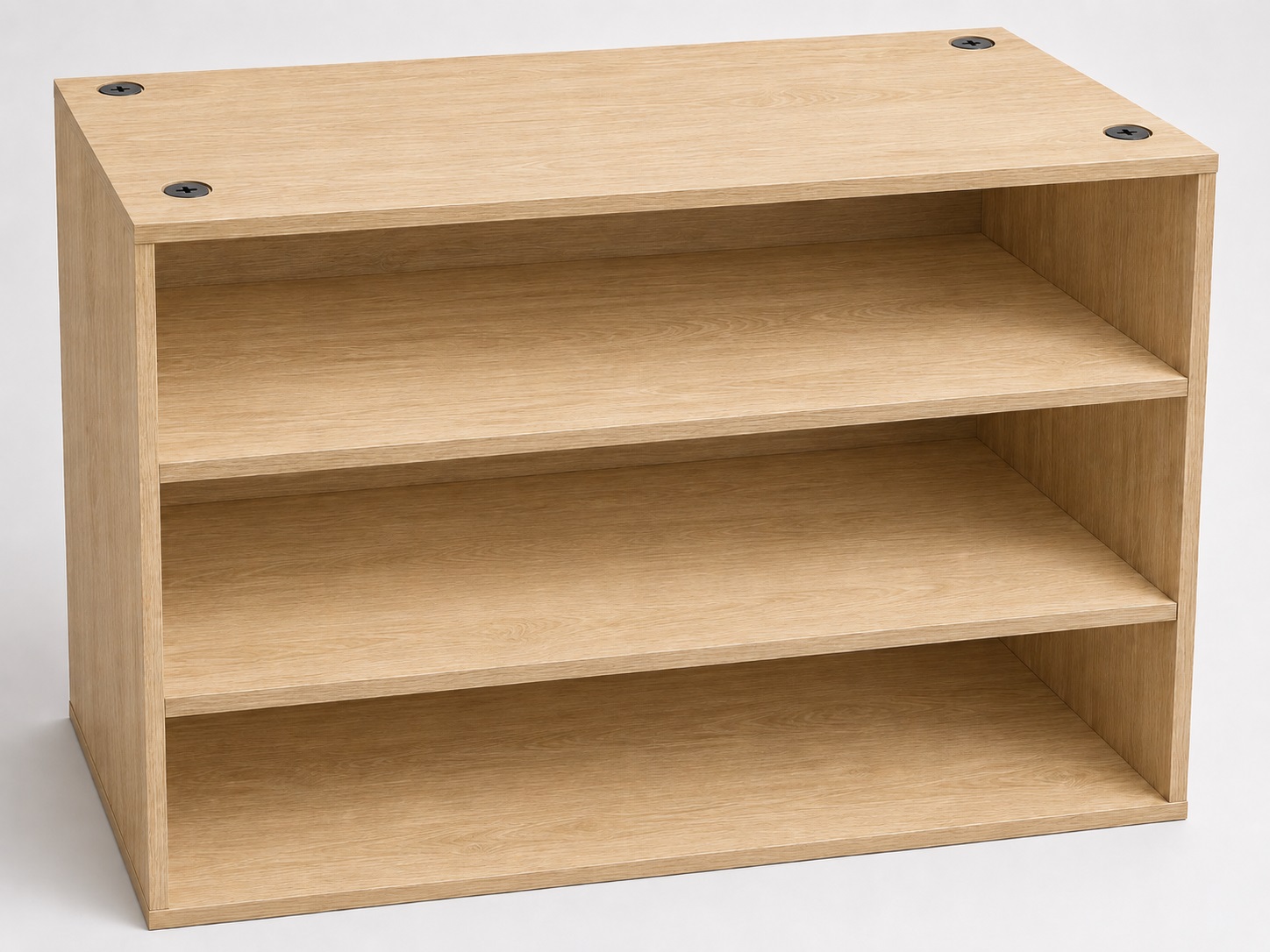

The high-quality B572-25-BL furniture adjusters are ideal for, among other things:
- Table
- Furniture legs
- Cabinet feet
- Cupboard
- Sofa
- Legs
- Shelf Feet
- Socket
- Small Furniture
- Built-in furniture
- Furniture
Material:
- The B572-25-BL furniture adjusters are made of robust polyacetal (POM)
- Polyacetal (POM) combines very high abrasion and wear resistance with a low friction coefficient, so that fittings function smoothly over the long term
- Thanks to its high dimensional and dimensional stability, even with changing humidity, the accuracy of fit of hinges, pull-outs or locks is maintained
Surface:
- Black
- Black finishes exude a timeless elegance and can help make a room look more luxurious and stylish
- While interior styles can change, black always remains a safe choice that can be easily adapted to new trends
- Black finishes can be used in different rooms, be it the kitchen, living room, or office
Assembly:
- Fastening is done with pan head screw ⌀3.5 mm screws (not included)
- The B572-25-BL adjustable foot has two mounting holes spaced 10 mm (25/64″). The mounting holes are ⌀3.6 mm (9/64″) in diameter

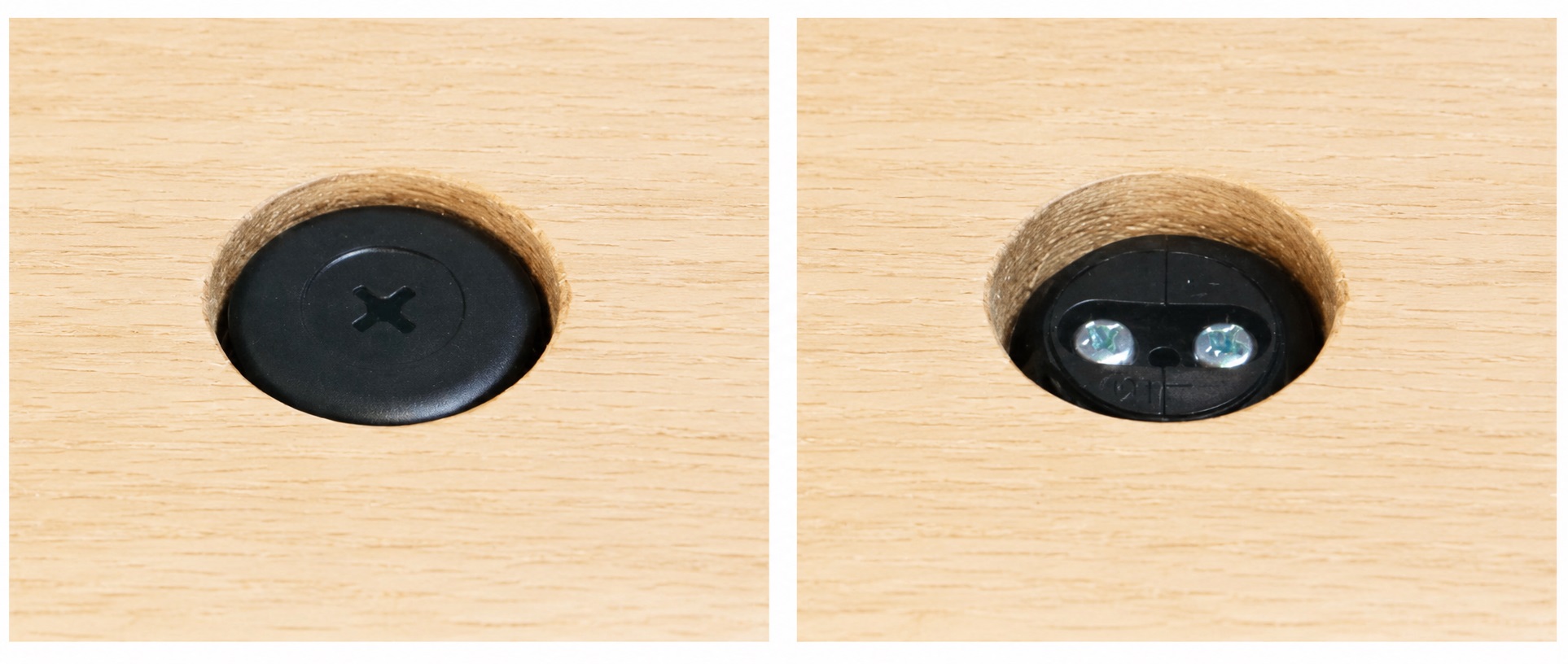

- The furniture adjuster is attached to the surface with two matching screws, without the need for milling into the wood
- Then the adjustment cap is placed on the adjustment foot or screwed on (for further details, see assembly drawing)
Features:
- Design: with Phillips receptacle for screwdriver
- Weight: 7 g (for 4 pieces: 28 g)
- Load capacity (load capacity): 600 kg (1323 lbs) – for 4 pieces
- Diameter: ⌀25 mm (63/64″)

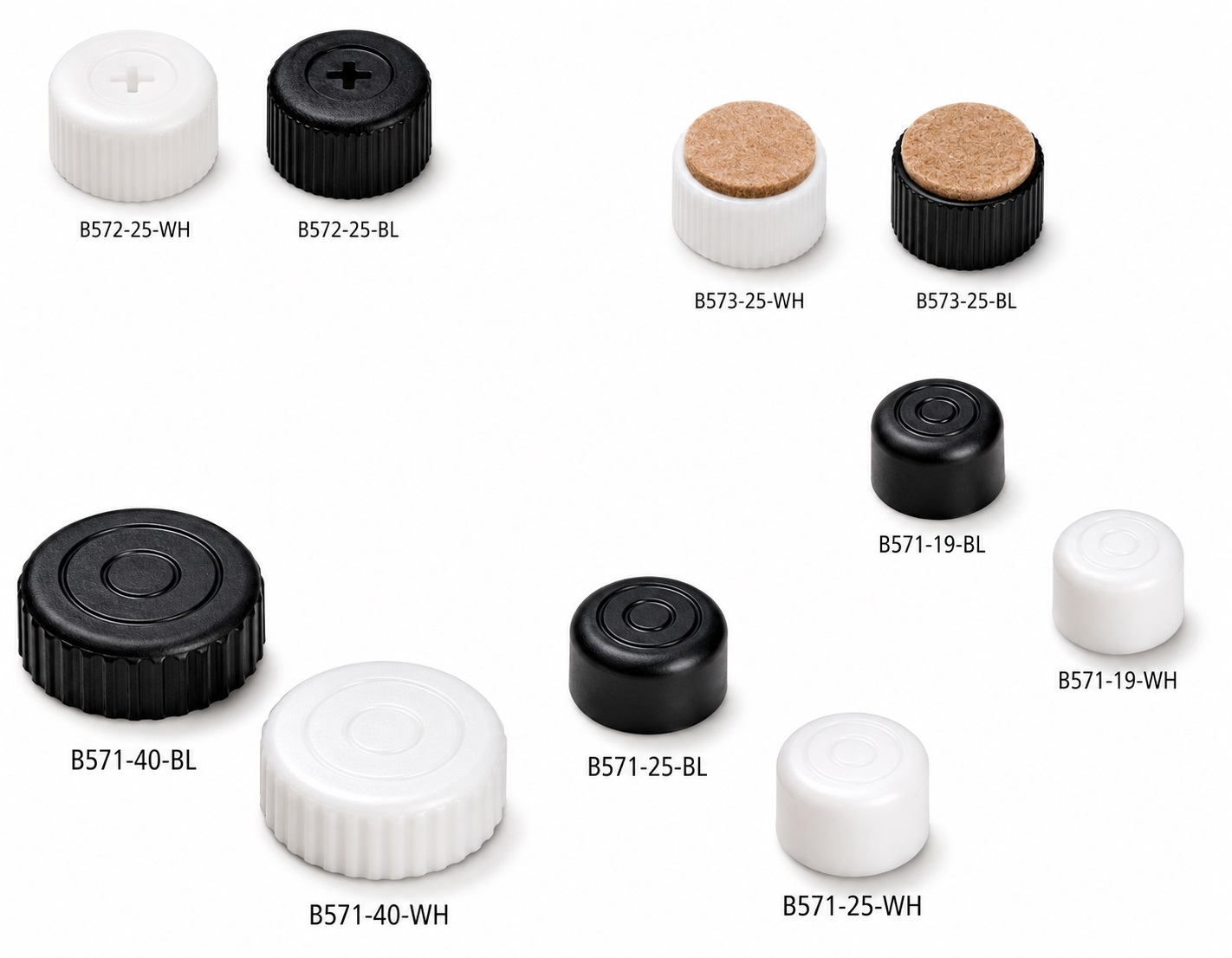

- Available in 2 surface colours: white and black
- Available in 3 diameters: ⌀ 19 mm, ⌀ 25 mm and ⌀ 40 mm
- Available in 3 versions: standard, with cross recess and with felt pad
- Easy installation, stable
- For indoor use
- Surface-mounted mounting without machining the wooden part
- Adjustment range: 5 mm (13/64″)
- Suitable for small and hard-to-reach mounting areas
- Black
- robust, lightweight
- High brand quality from Kojima (Japan)

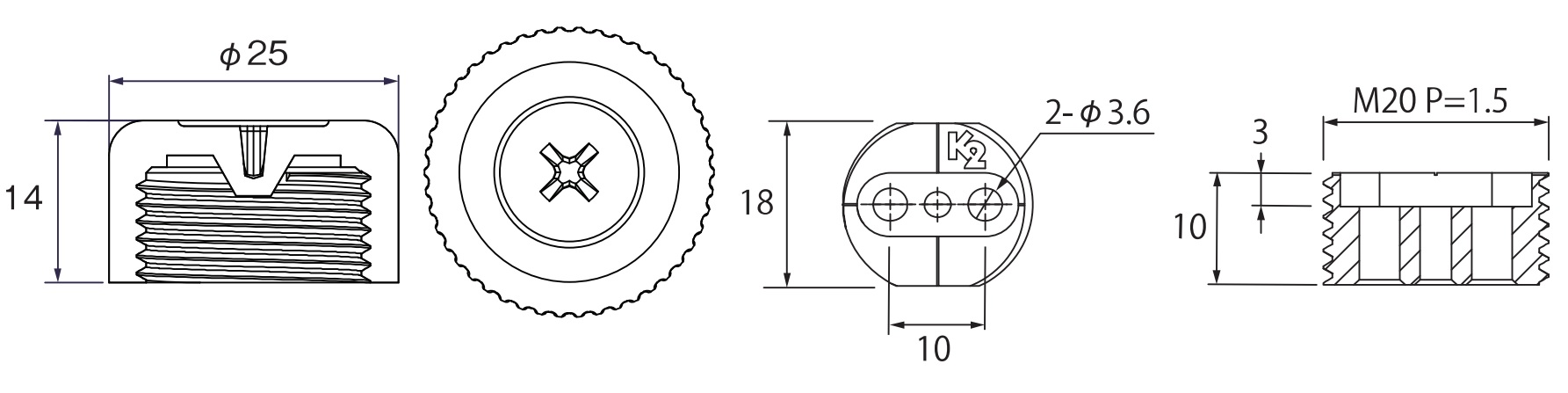

For more dimensions and details , see technical drawing.
The dimensions:
- Diameter of the furniture adjuster: ⌀25 mm (63/64″)
- Height: 10 mm (25/64″)
- Height of the adjustment cap: 14 mm (35/64″)

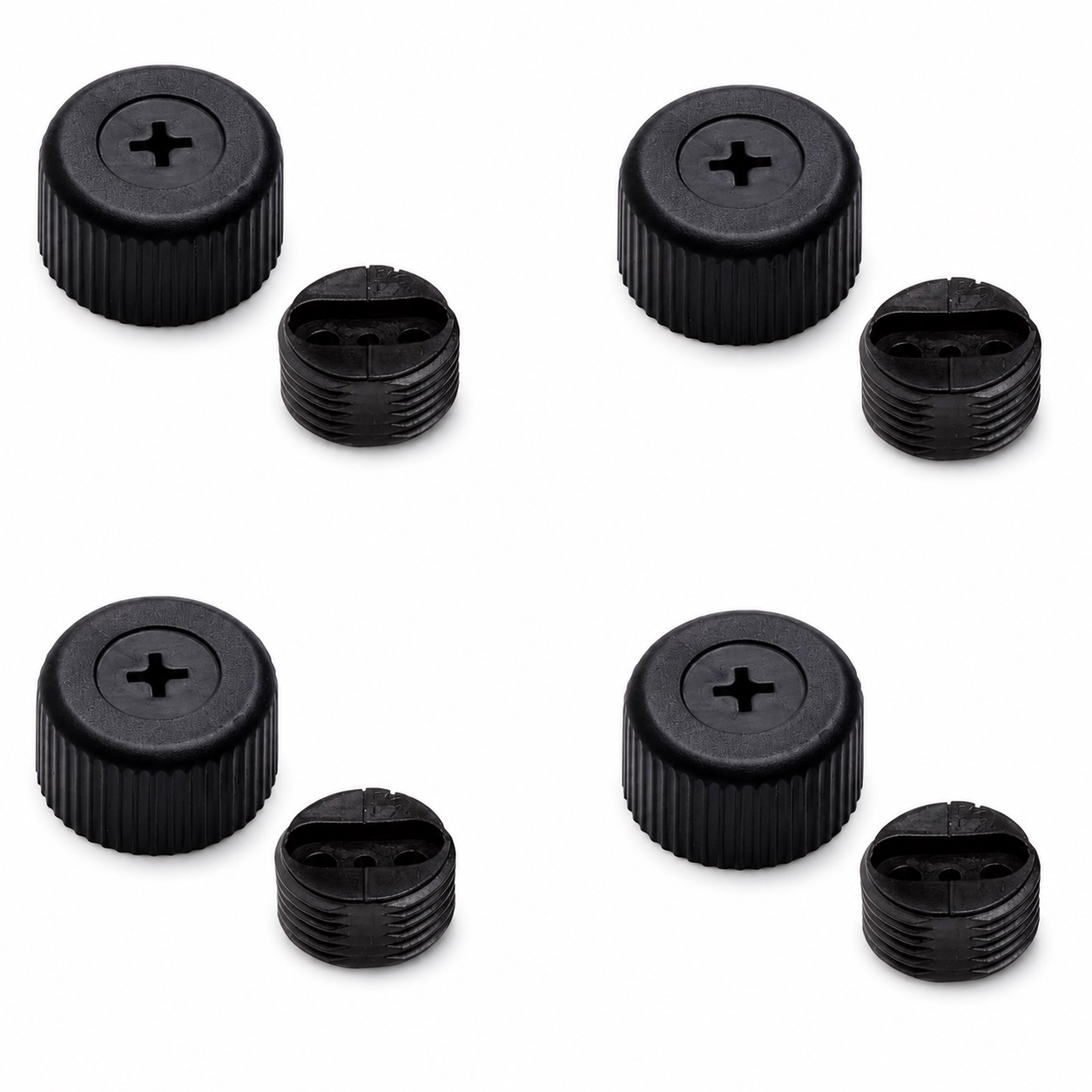

Included in delivery:
- 4 pieces furniture adjuster B572-25-BL made of robust polyacetal, black, 25 mm (63/64″), version: with Phillips receptacle for screwdriver
- 4 pieces of adjustable cap
- This item does not include mounting screws
Watch product video:
Additional Information:
Manufacturer’s reference number:
- Article ID: B572-25-BL
- GTIN number (EAN, UPC): 0618455525568
Manufacturer: Kojima (Japan)
