Description
High quality V4 (SUS316) stainless steel foldable ring handle, bright finishes, diameter Φ28mm 26900
Application:
Foldable ring-shaped handle made of the finest corrosion-free stainless steel V4A (SUS316), suitable for damp, harsh and highly corrosive environments.
The foldable handles are perfect for applications where you want the handle to remain hidden.
When folded, the ring handles are flush with the surface.
The stainless steel SUS316 gives the handles unique properties.
The 26900 non-corrosive grips are ideal for:
- Cleanroom
- production facilities
- cruise ships
- yachts
- boats
- Ships
- outdoor area
- offshore facilities
- bathroom
- Swimming pool
- Sauna
- Medical
- laboratory equipment
- outdoor furniture
- restaurant interior
- stainless steel kitchen
Material:
The rustproof folding ring handles 26900 are made from solid high quality SUS316 stainless steel.
SUS316 stainless steel (also known as V4A) is a stainless steel with excellent corrosion resistance.
Due to its resistance to substances containing chlorine, furniture fittings and industrial fittings made of SUS316 stainless steel are used and expressly recommended for use near the coast.
Folding ring handle made of SUS316 stainless steel is also ideal for use in swimming pools, shipbuilding, chemical industries, etc.
Surface:
- Polished to a shine
Assembly:
- It is fixed with screws (not included)
- The folding handle must be placed so that the hinge is in the up position
- The surface must be milled out for assembly ( see drawing).
Features:
- Weight: 45g
- Size: 47.5mm (1.9″)
- stainless
- Particularly corrosion-resistant
Dimensions:

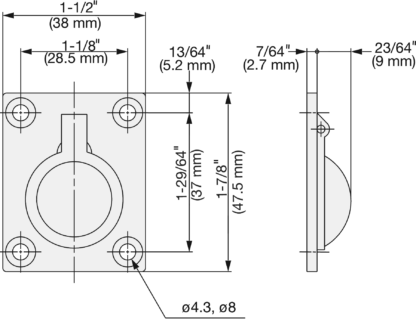

For further dimensions and details see technical drawing .
- Length: 47.5mm (1.88″)
- Grip Width: 38mm (1.5″)
- Grip Depth: 9mm (0.36″)
- Distance between the drill holes: 37 mm (1.46″) and 28.5 mm (1.13″)
- Depth of cutout: 10mm (0.4″)
- Screw Hole Diameter: Φ8mm (0.32″)
Included in delivery:
- 1 piece ring-shaped handle 26900 made of stainless steel SUS316 (V4A)
Manufacturer’s reference number:
- Article number: 100-096-009
- Article designation: 26900
- EAN number: 4510932010986
Manufacturer: SUGATSUNE / LAMP® (Japan)
