GRASS Hetal Kinvaro S-35 swing flap fitting with opening support and adjustable closing damping. Flap fitting with gray cover caps

$ 157,99

Description

GRASS Hetal Kinvaro S-35 swing flap fitting with opening support and adjustable closing damping, with gray cover caps

Features:

  • Allows the use of cornice profiles, gallery shelves and top lights
  • Flap is held securely in any position from an opening angle of 45°.
  • Particularly easy movement
  • The spring force is adjustable
  • Integrated adjustable closing damping
  • For damper weight 1.5 to 17.5kg
  • For flaps with widths: 450-1200mm and heights: 420-750mm
  • Incl. Paper template for easy assembly
  • Wide range of applications for a wide variety of flap materials
  • Pre-assembled Euro screws and positioning pins for easy mounting of the fitting on the side wall
  • Fast, tool-free clip mounting of the front

3-dimensional adjustment possibility of the flap by direct adjustment:

  • Height adjustment: ±1.5 mm
  • Lateral adjustment: ±1.5 mm
  • Tilt adjustment: ±1.5 mm

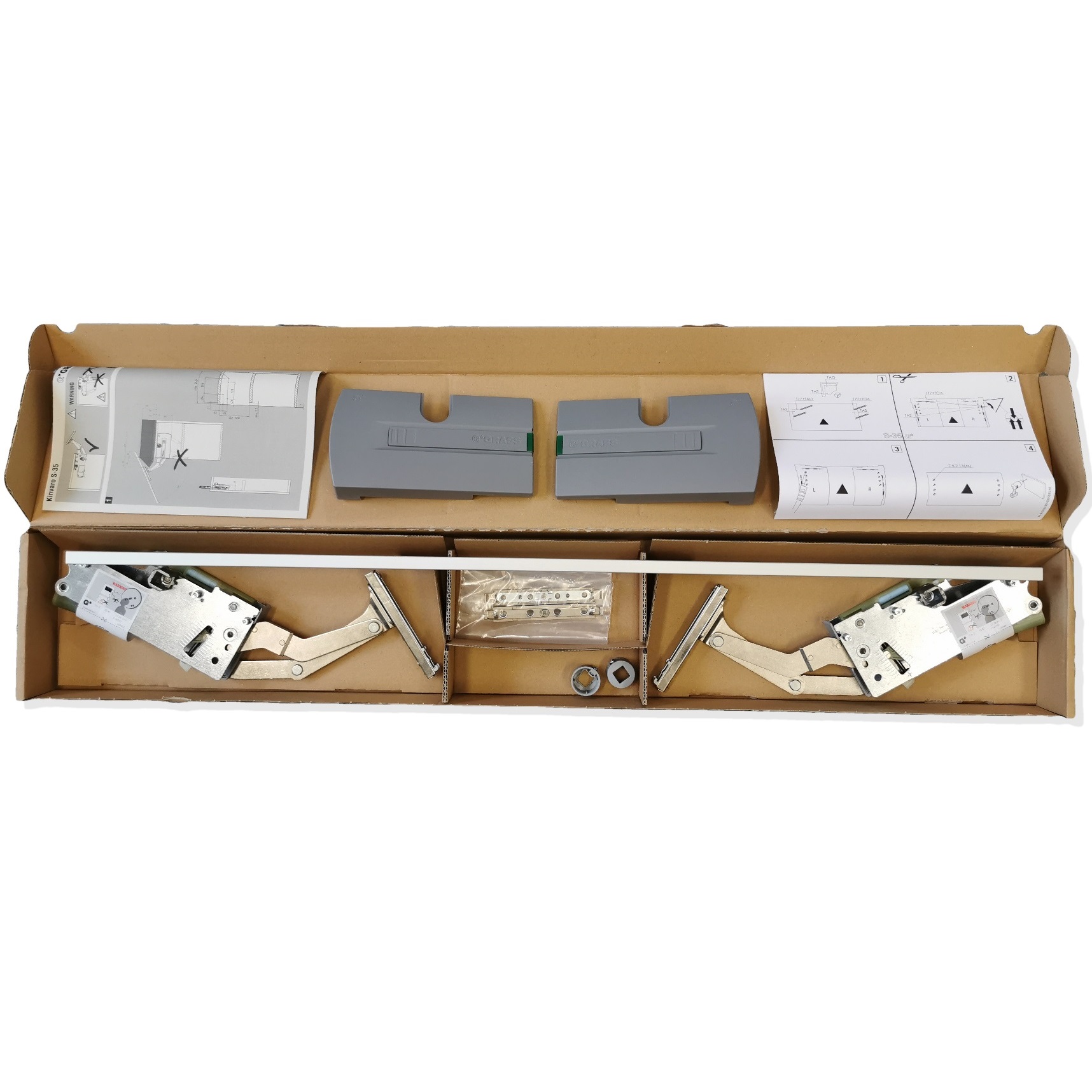

The scope of delivery includes:

  • 2 x fitting (1 x right and 1 x left)
  • 2 x cover caps (1 x right and 1 x left)
  • 1 x crossbar 1090 mm for cutting to length
  • 2 x sliding sleeves
  • 2 x mounting plates
  • 1 x paper drilling template
  • 1 x assembly instruction

Please select the correct force accumulator based on the table!

For the weight, please also take into account the weight of the furniture handle!

We will be happy to help you with the selection.

Made at GRASS in Germany

Download assembly instructions (installation instructions) for GRASS Kinvaro S-35 flap fitting!

Download adjustment instructions for GRASS Kinvaro S-35 damper fitting!

Watch installation videos for GRASS Kinvaro S-35 flap fitting!

Download information brochure GRASS Kinvaro flap fittings!

Download product catalog GRASS Kinvaro flap fittings!

Download CAD data for GRASS Kinvaro S-35 flap fitting!

Manufacturer:
GRASS Ltd.

Additional information

Weight 5 kg
Dimensions 120 × 20 × 7 cm
Power storage

Height 420-719; Weight 1.5-7.5kg; Force memory A, Height 420-629; Weight 4.5-13kg; Force memory B, Height 540-750; Weight 4-14kg; Force memory C, Height 570-750; Weight 6,5-16kg; Force memory D, Height 660-750; Weight 10-17,5kg; Force memory E
