Description
High quality self folding coat hook NF-47D with soft close function
Application:
These high-quality design hooks can be used in a variety of ways. The hinged coat hooks open gently when hanging items such as clothes.

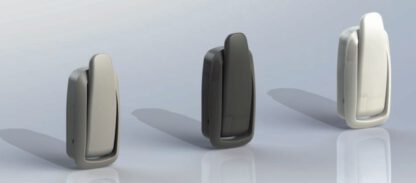

The folding hooks are available in three colors: gray (NF-47D-GR), dark gray (NF-47D-DGR) and white (NF-47D-WT).
When removing the items, the folding hooks close automatically and silently.
The foldable hooks with soft-close function can be used in private households, as well as in offices, restaurants, theaters, movie theaters, etc.
In addition, these folding hooks are very suitable for the interior of airplanes, private jets, motorhomes, caravans, yachts and trains.
The foldable hooks can also be installed in the back or side of an armchair or seat.
Since the folding hooks have the soft-close function, they do not produce noise during travel or flight and are vibration resistant.
The load capacity is up to 75 N (7.6 kp), even during flight or while driving.
Especially convenient: when not in use, the hooks are folded and thus do not interfere with passing. It also gives the interior design a more self-contained look.
NF-47D folding hooks are available in three colors: gray (NF-47D-GR), dark gray (NF-47D-DGR) and white (NF-47D-WT).
The hooks can be attached to the wood or sheet metal.
Assembly:
In case of wooden mounting, the hinged hooks are mounted in a cut-out (see drawing).
The minimum thickness of the wood is 20 mm.
The screws recommended for mounting the hinged hook: Phillips countersunk head screw M4 or self-tapping raised countersunk head screw size 4 mm.

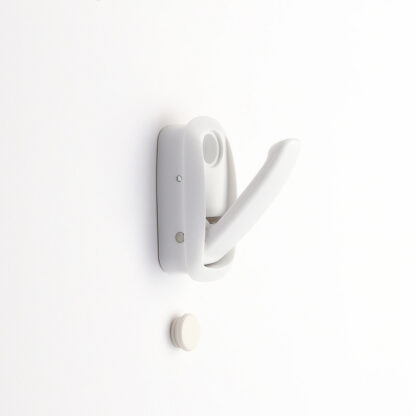

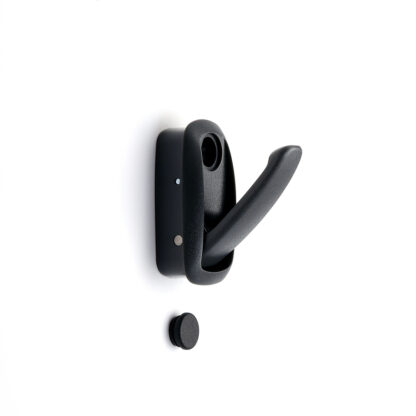

Afterinstallation , the damping rubber (5) must be attached , which also serves as a cover for the screw.
The folding hook NF-47D can also be mounted on sheet metal. The NF-47DB mounting bracket is additionally required for this.
Features:
- Load capacity: 75 N (7.6 kp)
- Weight: 11 g
Included in delivery:
- One piece foldable hook, gray (NF-47D-GR), dark gray (NF-47D-DGR) or white (NF-47D-WT)
- A piece of damping rubber in the appropriate color
Material:
- Made of flame retardant polycarbonate (UL94V-0 compliant)
- Housing (1): Polycarbonate (PC), s. Zeichnung
- Hook arm (2): polycarbonate (PC)
- Spring (3): Stainless steel SUS304 (V2A)
- Shaft (4): stainless steel SUS304 (V2A)
- Cushioning rubber (5): Chloroprene rubber (CR)
Surface:
- Housing and hook arm: Matt
Dimensions:
- Length: 54.4 mm
- Width: 23.9 mm
- Depth: 17.4 mm
For dimensions see technical drawing (mm):
Watch product video:
Manufacturer’s reference number:
| Grey: | SKU 110-041-087 | NF-47D-GR |
| Dark gray: | SKU 110-041-088 | NF-47D-DGR |
| White: | SKU 110-041-089 | NF-47D-WT |
Manufacturer: SUGATSUNE / LAMP® (Japan)
