Description
High-quality screw-on roller shutter lock with hook 14.01.452-0, with cylinder rosette and two keys, incl. strike plate, made of robust steel, surface: brass
Application:
Robust sliding door lock for roller shutters, furniture sliding doors and much more.
Practical sliding door lock 14.01.452-0 is used to lock roller shutters and furniture sliding doors.
The two locking hooks spread automatically in the strike plate after closing and thus ensure stable locking of roller blinds or sliding doors.
The screw-on roller shutter lock 14.01.452-0 is a drop lock and has a permanently mounted pin cylinder.
No need to lock: the key can be removed in the open and closed position.
The roller shutter locks are suitable for installation in new furniture as well as for repairing existing cabinets.
The high-quality roller shutter locks 14.01.452-0 are ideal for, among other things:
- Living room furniture
- Office furniture
- Shutter
- Furniture Sliding Door
Material:
- The roller shutter locks 14.01.452-0 are made of robust steel
- Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings
Surface:
- Brass
- The brass surface gives parts, components and furniture fittings a classy, timeless look that goes well with classic and modern designs
- It has a warm vibe that enhances spaces and gives a sense of luxury
- In addition, the colour nuance can be combined in a variety of ways with other materials such as wood or glass
Assembly:

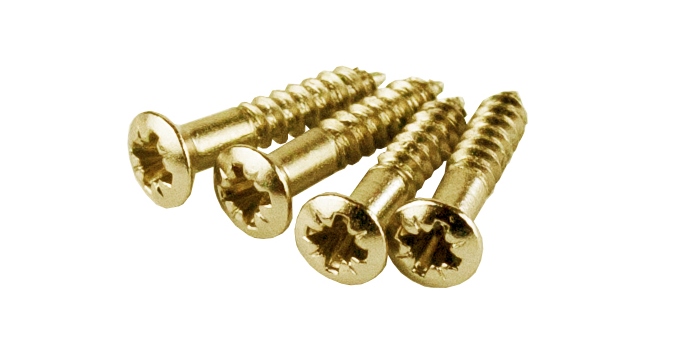

- Fastening is done with 3 mm and 3.5 mm screws (not included)
- Screw-on roller shutter lock 14.01.452-0 is for screwing
- To install the sliding door lock, a hole with a diameter of ⌀20 mm (25/32″) must be drilled
- The strike plate has two mounting holes with a diameter of ⌀3 mm
Features:
- Weight: 120g
- Size: 19 mm (3/4″)
- Available in two surface colours: brass and nickel-plated
- Available with two cylinder lengths: 22 mm and 32 mm
- Available as keyed and keyed alike
- Easy installation, practical, stable
- Drop lock for roller shutters and sliding doors, for screwing
- Backset: 25 mm (63/64″)
- Can be used on the left or right
- Cylinder diameter: ⌀19 mm (3/4″)
- with permanently mounted plate cylinder
- Cylinder length: 22 mm (55/64″)
- with clip-on rosette
- Locking system: Normal profile
- with cylinder core
- with flat strike plate
- without compulsory closing
- Cylindrical Shape: Round Cylinder
- Closing movement: 90 degrees
- 400 different key variants
- Brass
- Steel
- robust
- high brand quality of UMAXO®
For more dimensions and details, see technical drawing.
The dimensions:
- Height and width of the sliding door lock: 40 mm (1-37/64″) x 40 mm (1-37/64″)
- Depth: 7.5 mm (19/64″)
- Cylinder length: 22 mm (55/64″)
- Backset: 25 mm (63/64″)
- Cylinder diameter: ⌀19 mm (3/4″)
Included in delivery:
- 1 piece screw-on roller shutter lock 14.01.452-0 made of robust steel, brass
- 1 piece of strike plate
- Two pieces of wrench
- 1 piece cylindrical rosette
Additional Information:
Manufacturer’s reference number:
- Article ID: 14.01.452-0
- EAN number: 5704866033473
Manufacturer: SISO Denmark
