Description

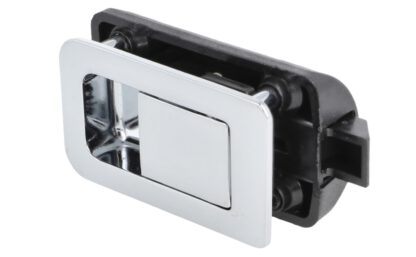

Practical snap lock 14.03.090-0, with foldable inlet handle, made of solid die-cast zinc, surface: chrome-plated
Application:
Solid inlet handle with self-locking lock for caravan, yacht, caravan, private jet, motorhome and much more.
The high-quality snap lock 14.03.090-0 is a furniture handle with a locking function and, when locked, ensures that the furniture doors, cupboard doors or drawers do not open unintentionally during the journey or flight.
The 14.03.090-0 inlet handle is suitable for door thicknesses from 12 mm (15/32″) to 14 mm (35/64″).
To open the furniture door, the lever in the housing of the recess handle 14.03.090-0 must be pulled forward with one finger and the snap lock must be released.
These features make the 14.03.090-0 snap lock ideal for ships, private planes, motorhomes and caravans.
The high-quality recessed handles 14.03.090-0 are ideal for, among other things:
- Boat
- Superyacht
- Camper Van
- Caravan
- Yacht
- Caravan
- Private Jet
- Motorhome
Material:
- The recessed handles 14.03.090-0 are made of solid die-cast zinc
- Industrial and furniture fittings made of zamak offer a high-quality look and feel that is durable and valuable
- Due to their high stability and corrosion resistance, they remain reliable and rust-free even with daily use
- In addition, they are often less expensive than solid brass or stainless steel fittings without compromising on quality
Surface:
- Chrome-plated
- Chrome-plated surfaces give rooms an elegant and modern look that looks timeless
- They are extremely easy to maintain, as chrome is resistant to corrosion and scratches and thus remains durable
- In addition, chrome-plated surfaces reflect light, making rooms appear brighter and visually larger
Assembly:
- Fastening is done using the four screws included in the scope of delivery
- For mounting, a cut-out with a width of 52 mm (2-3/64″) and a height of 34 mm (1-11/32″) must be made in the front
- The distance between the edge of the door and the cutout should be 24 mm (15/16″)
- The inlet handle 14.03.090-0 is inserted into the front and the housing is screwed on from the back using the screws supplied
- The strike plate is then attached to the carcass side using the screws supplied (for further details, see assembly drawing)
Features:
- Weight: 87g
- Size: 59.5 mm (2-11/32″)
- Available in two surface colours: chrome and black
- Easy installation, practical, stable
- modern design
- High-quality optics
- Suitable for door thicknesses from 12 mm (15/32″) to 14 mm (35/64″)
- Suitable for interior (inlay) and surface-mounted (existing) furniture doors
- The recessed handles 14.03.090-0 look solid and high-quality
- chrome-plated
- Zamak
- Zinc die casting
- high brand quality of UMAXO®
For more dimensions and details, see technical drawing.
The dimensions:
- Inlet handle width: 59.5 mm (2-11/32″)
- Height: 36 mm (1-27/64″)
- Handle depth: 52 mm (2-3/64″)
Included in delivery:
- 1 piece snap lock 14.03.090-0 made of solid die-cast zinc, chrome-plated
- Four Piece Mounting Screw

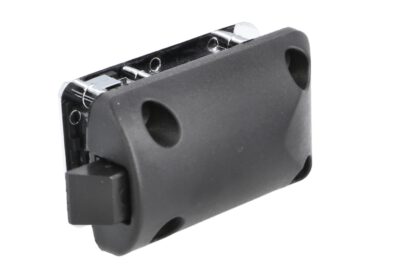

- 1 piece lock made of ABS, colour: grey
- 1 piece counterpart made of ABS, colour: grey
- 1 piece lever made of zamak, color: chrome-plated
Additional Information:
Manufacturer’s reference number:
- Article ID: 14.03.090-0
- EAN number: 5704866518390
Manufacturer: SISO Denmark
