Description
Practical push-button closure (pressure latch) for thick furniture doors 22 mm (55/64″) – 25 mm (63/64″), made of robust polyamide (PA, nylon), surface: ivory, SL-B251-I
Application:
Push-Latch for motorhome conversion, yacht interior, caravan furniture and much more.
The SL-B251-I push button closure has a push button with a sturdy sliding latch.
Its compact design requires only a 15 mm bore and hardly protrudes, allowing for a simple front design.
The integrated spring mechanism keeps the door securely closed with about 16 kgf – even in the event of vibrations in vehicle or ship applications.
A spacer ring allows adaptation to door thicknesses of 18 to 21 mm and ensures a play-free fit.
The wear-resistant polyamide housing is lightweight, corrosion-resistant and impervious to moisture.
The high-quality push button closures 140-060-016 are ideal for, among other things:
- Shopfitting
- Trade fair furniture
- Furniture doors
- Work out
- Doors
- Lightweight furniture
- Kitchen wall units
- Motorhome conversion
- Yacht Interior
- Caravan furniture
Material:
- The push button closures 140-060-016 are made of robust polyamide (PA, nylon)
- Polyamide is ideal for furniture hardware and industrial hardware because it is robust, corrosion-resistant, noise-absorbing and slippery, which allows for durable and easily movable hardware.
Surface:
- Ivory
- Ivory finishes create a warm and inviting atmosphere that is at the same time discreet and elegant, ideal for living rooms and bedrooms
- In addition, ivory can be combined well with other colours and materials, making it versatile and harmoniously complementing different furnishing styles
Assembly:
- Fastening is done using the six screws included in the scope of delivery (Pan-Head chipboard screw 3 x 14 mm)
- First, a main hole with a diameter of ⌀15 mm (19/32″) must be made
- Then a counter hole with a diameter of 26 mm (1-1/32″) and a depth = door thickness − 8 mm must be made on the inside of the door
- Then the push button is attached to the hole with the nut
- The bolt body is screwed into the pre-drawn slot holes with four 3 x 14 mm chipboard screws, whereby the spacer ring is inserted depending on the thickness of the door
- The counter plate is then aligned on the front side of the body and screwed so that the bolt clicks into place cleanly
- Finally, the closing function is checked and, if necessary, fine-tuned via the slotted holes (for further details, see assembly drawing)
Features:
- Weight: 23.5 g
- Load capacity (load capacity): 156.8 N (16 kp)
- Size: 26 mm (1-1/32″)
- Available in colors: ivory and brown
- Available for normal doors (18-21 mm) and for thick doors (22-25 mm)
- Easy installation, practical, stable
- Keeps doors securely closed by spring force
- Low-noise opening at the touch of a button
- Easy adaptation to different door thicknesses
- Corrosion-resistant, impact-resistant polyamide
- Compact installation depth, ideal for thin fronts
- High holding force of around 16 kgf
- Suitable for furniture, vehicles and marine
- Low weight
- Ivory
- Robust (abrasion-resistant, resilient, resistant to many chemicals, heat-resistant)
- high brand quality of Sugatsune / LAMP®
For more dimensions and details, see technical drawing.
The dimensions:
- Push button closure length: 40 mm (1-37/64″)
- Width: 36 mm (1-27/64″)
- Depth: 15 mm (19/32″)
- Snap Diameter: ⌀20.5 mm (13/16″)

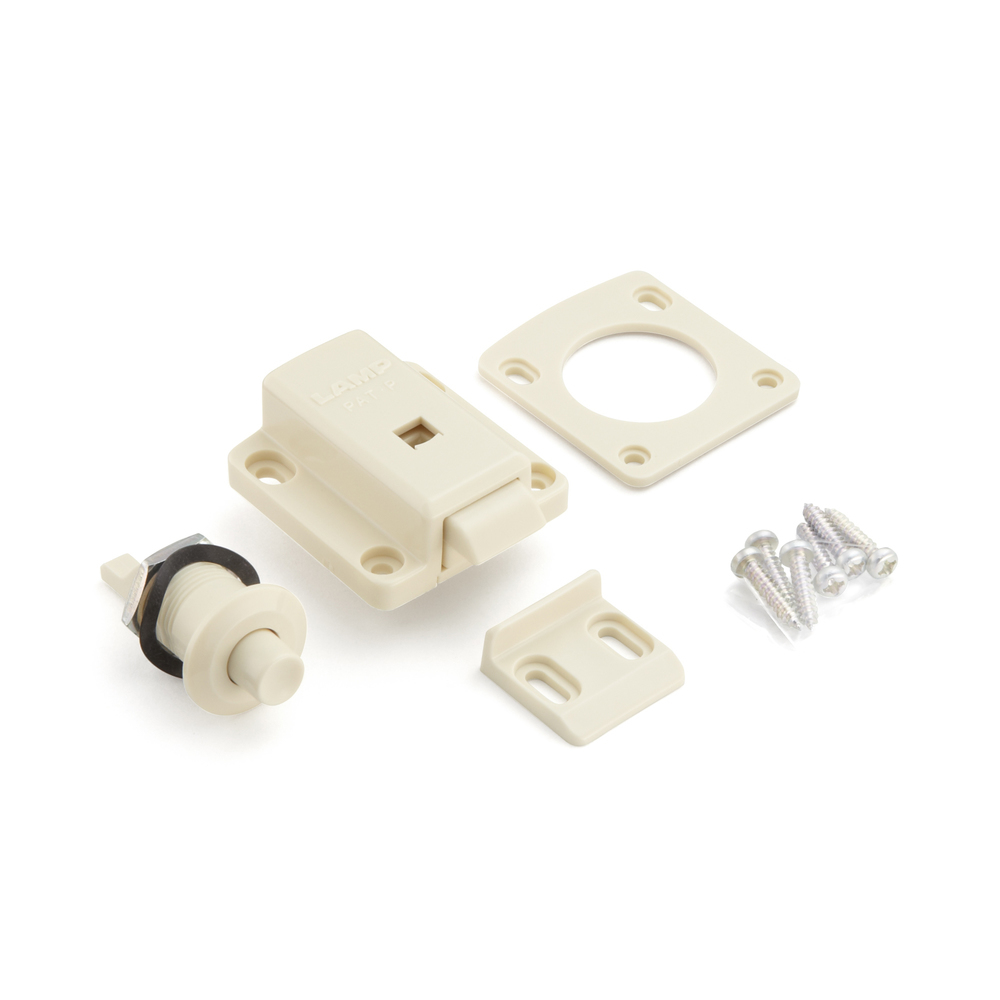

Included in delivery:
- 1 piece push button closure 140-060-016 made of robust polyamide, ivory
- 1 piece of strike plate
- 1 piece spacer ring
- 1 piece push button
- 6 Pan-Head chipboard screws 3 x 14 mm
Additional Information:
Manufacturer’s reference number:
- Article ID: 140-060-016
- Item number: SL-B251-I
- EAN number: 4510932059558
Manufacturer: Sugatsune / LAMP® (Japan)
