Roller thrust guides, partial extension, grey metallic, RAL 9022, painted, 800 mm (31-1/2″). Steel guide rails 4389325 with partial extension, for wooden drawer, shelf pull-out, wooden drawer, kitchen furniture, office furniture, home furniture, by EMUCA

Description

Roller Slide Guides 4389325 made of steel, partial extension, grey metallic, RAL 9022, painted, 800 mm (31-1/2″)

Application:



Steel guide rails, with partial extension, for wooden drawer, shelf pull-out, wooden drawer, kitchen furniture, office furniture, home furniture.

The drawer slides 4389325 made of robust steel, nominal length 800 mm (31-1/2″), with integrated self-closing allow the drawers to roll.

These drawer pull-outs have the roll-out protection, the drawer can be fixed in the open position.

The drawer is easy to remove.

The guide rails 4389325 are simple, easy to manufacture, flexible to tolerance, safe and durable.

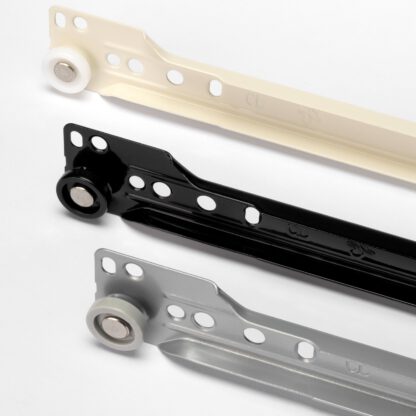

The drawer rails with partial extension are available in three surface colours: white, black and metallic grey.

The high-quality roller guides 4389325 are ideal for:

• Wooden drawer
• Tray pull-out
• Wooden drawer
• Kitchen furniture
• Office furniture
• Home furniture

Material:

The roller guides 4389325 are made of robust steel.

Surface:

• Grey metallic, RAL 9022, lacquered

Assembly:

• The roller guides are fixed to the drawer bottom
• The body rail is attached to the body at a distance of 2 mm to the edge
• The drawer pull-outs are assembled with Φ5 mm flat head Euro screws or with flat head screws, diameter Φ3.5 mm
• For mounting with the Euro screws, Φ5 mm holes in the body must be pre-drilled from the ground at a height of 18.25 mm (23/32″)
• Optionally, a soft-close damper can be used (not included), see below (for further details see
  mounting drawing
  )



Features:

• Load capacity (load capacity): 200 N (20.5 kp)
• Size: 800 mm (31-1/2″)
• Maximum load capacity (payload): 20 kg
• With self-closing on last 6 cm
• With anti-roll protection
• Easy removal of the drawer
• Visible leadership
• Robust
• Made of steel
• Grey metallic, RAL 9022, lacquered
• High brand quality from UMAXO®

Dimensions:

For more dimensions and details, see technical drawing.

• Nominal length of guide rails: 800 mm (31-1/2″)
• Focuser length: 715 mm (28-5/32″)
• Distance between the body and the drawer: 13 mm (1/2″)



Included in delivery:

• 2 steel roller slide guides 4389325 (right and left)
• This item does not include mounting screws

Watch product video:

Manufacturer’s reference number:

• Item identification number: 4389325

Manufacturer: EMUCA
