Description
Magnetic snapper embedded in synthetic resin for clean rooms with stainless steel counter plate by SUGATSUNE / Lamp (Japan)
Application:
Ideal for clean rooms, laboratories, hospitals, medical areas, the food industry, kitchens and other hygienically sensitive environments.
The magnetic flycatcher must not be used in direct contact with water, hot water or steam; Residues of strongly acidic or strongly alkaline cleaning agents must be removed immediately.
Maximum ambient temperature: 80 °C
Since there is no direct metal-to-metal contact when closing, the formation of metal abrasion is reduced, which supports use in cleanrooms and hygienically sensitive areas.
Material:
- Housing: Polyacetal (POM)
- Magnet: Neodymium
Features:
- Magnetic force: 29.4 N (3 kp)
- Weight: 21 g
- Colors: available in two colors, black or white
- No direct metal-to-metal contact

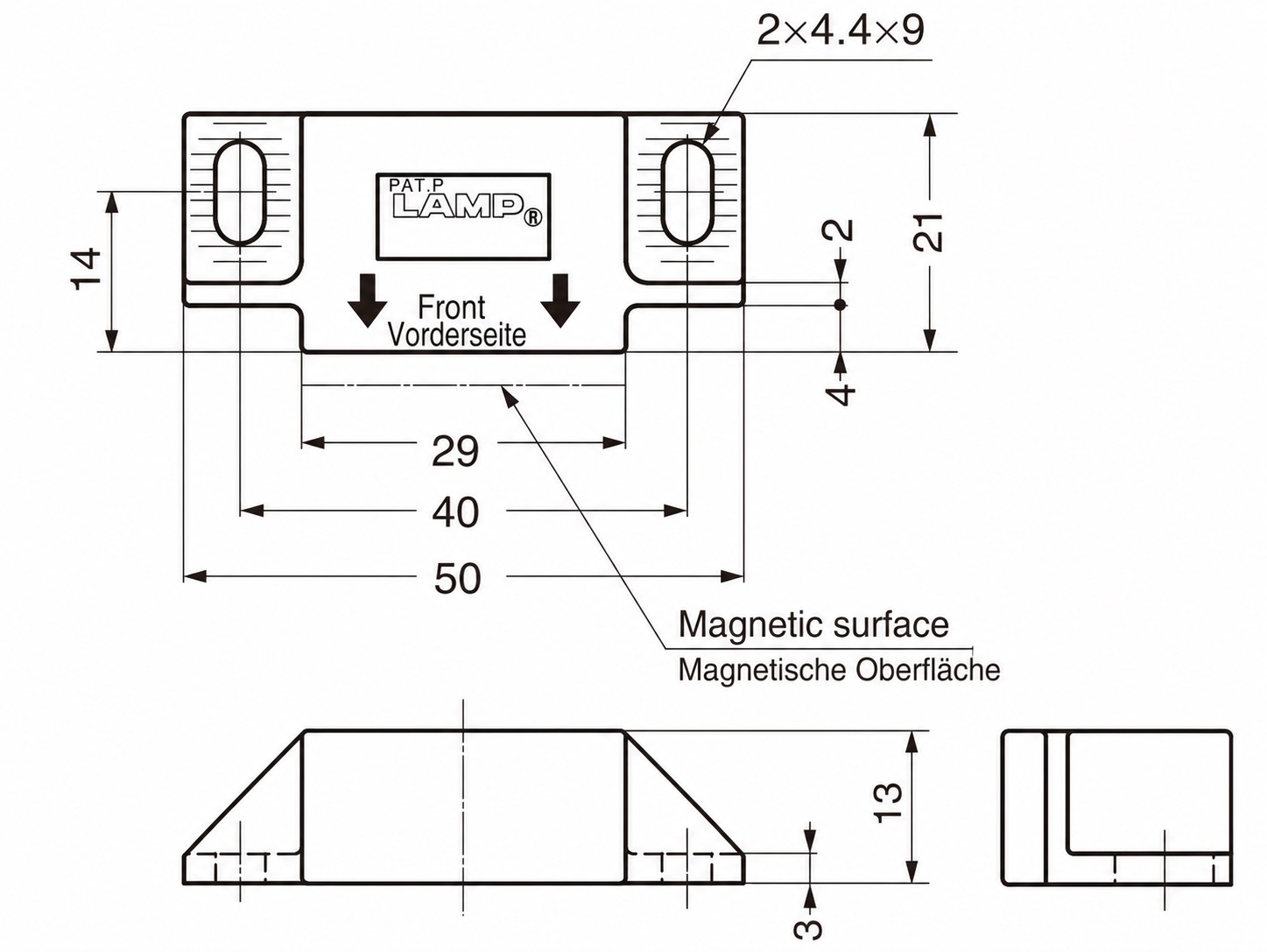

Dimensions:
- Magnetic Flycatcher: 50 x 21 x 13 mm (1-31/32 x 13/16 x 1/2″)
- Mounting slotted holes: 2 x 4.4 x 9 mm (2 x 3/16 x 11/32″)
- Counter plate: 49 x 15 x 2 mm (1-15/16 x 19/32 x 3/32″)
- Mating plate hole spacing: 40 mm (1-9/16″)
- Mating plate mounting holes: 2 x ⌀3.8 mm (5/32″)
- Countersink Diameter: ⌀7 mm (9/32″)
Included in delivery:
- 1 piece magnetic flycatcher
- 1 piece stainless steel counter plate, polished surface
- This item does not include mounting screws
Recommended screws: 4pcs self-tapping screws or M4 screws (not included)
Manufacturer’s reference number:
- Article ID: 140-050-156, 140-050-155, 140-050-149
- SKU: MC-JM50BL, MC-JM50WT, MC-JM49
- EAN number: 4510932017152, 4510932017169, 4510932002240
Manufacturer: Sugatsune / LAMP® (Japan)
