Description

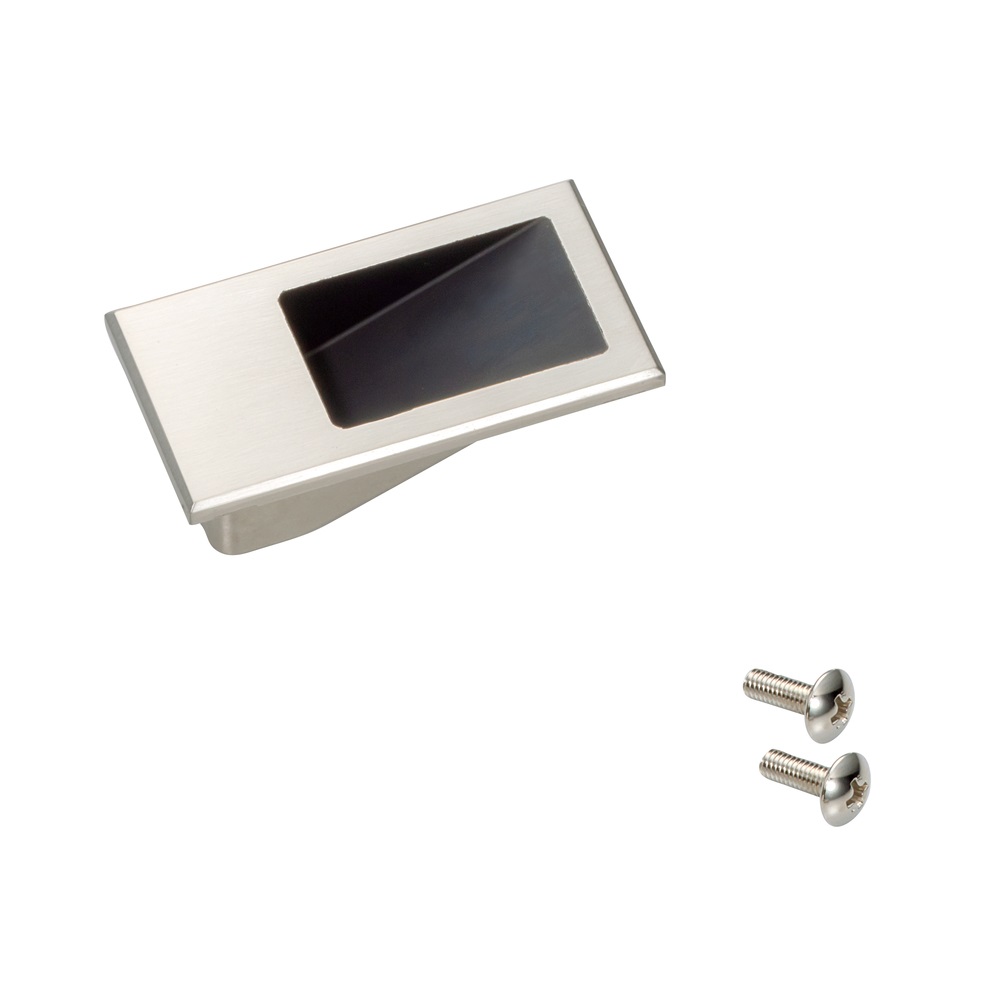

High quality small grip shell made of solid zinc alloy, surface: white bronze HH-DN-29WB
Application:
Recessed grip HH-DN-29WB for sheet metal fronts, wooden fronts, drawers, cabinets, office furniture.
Small sturdy shell handle made of metal, which can also be used very well with one finger.
When used with the HH-DN-BKT bracket, the finger handle can also be installed in housings and furniture made of sheet metal.
The HH-DN-29WB recessed grip can be installed in both sheet metal and wood.
The high-quality handle shells HH-DN-29WB are ideal for:
- Sheet metal fronts
- Wooden fronts
- Drawers
- cabinets
- Office furniture
- Living room cabinet
- Kitchen furniture
- Bedroom
Material:
- The high-quality handle shells HH-DN-29WB are made of solid zinc alloy (ZDC)
- Inner housing: plastic (HIPS), black
Surface:
- White bronze
Assembly:
- The attachment is done using the screws included in the scope of delivery (flat round head screw M4 x 12 mm)
- For assembly, a cut-out in the front with the dimensions (L3 x H3) 47 mm (1-27/32″) x 25 mm (63/64″) must be made
- In addition, when mounted in the wood, two holes with a distance of 37 mm (1-29/64″) must be made for the screws

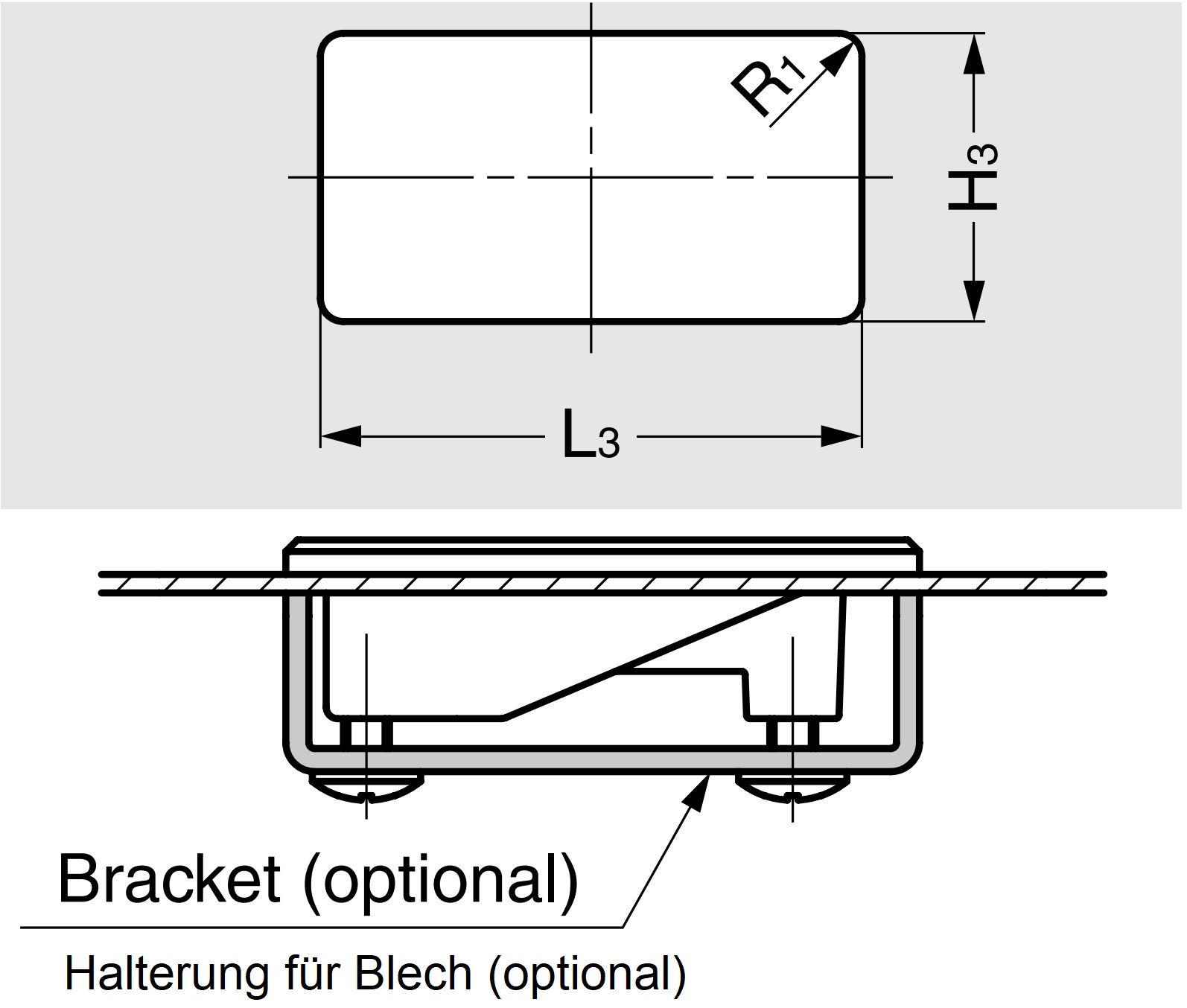

- When mounted in sheet metal, the spacer HH-DN-BKT must be used (please order separately)

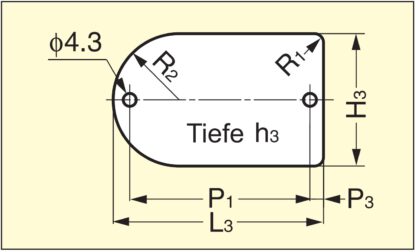

- When mounting in wood, the mounting holes must be made according to the drawing (for further details see
mounting drawing
)
Features:
- Weight: 50g
- Size: 55mm (2.2″)
- Elaborately processed
- Ergonomic
- Stable
- Solid
- Robust
- White bronze
- High brand quality of Sugatsune / LAMP®
Dimensions:

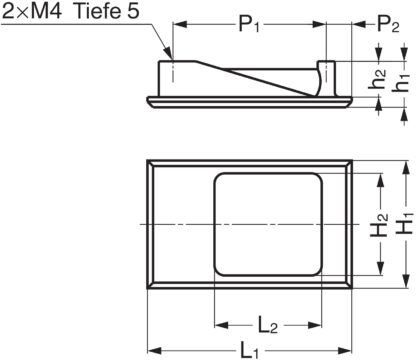

For further dimensions and details see technical drawing .
- Grip Shell Height (L1): 55 mm (2-11/64″)
- Width (H1): 29 mm (1-9/64″)
- Distance between mounting holes (P1): 37 mm (1-29/64″)
- Height of grip area (L2): 32 mm (1-17/64″)
- Width of grip area (H2): 20 mm (25/32″)
Included in delivery:
- 1 piece grip shell HH-DN-29WB made of solid zinc alloy, white bronze
- 2 pieces flat round head screw M4 x 12 mm
Manufacturer’s reference number:
- Article ID: 100-049-509
- Item number: HH-DN-29WB
- EAN number: 4510932216074
Manufacturer: Sugatsune / LAMP® (Japan)
