SUS304 stainless steel folding handle, 110mm (4.4″) HR-110S. Rotatable stainless steel folding handle made of stainless steel V2A, satin matt, for inspection flap, inspection door, maintenance door, humid environment, ship, caravan by Sugatsune / LAMP® (Japan)

$ 23,99

In stock

Description

Stainless steel folding handle made of stainless steel V2A (SUS304) HR-110S

Application:

blank

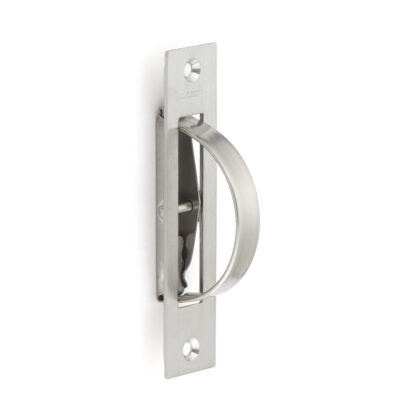

Sugatsune SUS304 stainless steel folding handle, HR-110S (110 mm), satin matte. Application



Rotatable stainless steel folding handle made of stainless steel V2A, satin matt, for inspection flap, inspection door, maintenance door, humid environment, ship, caravan.

The HR-110S stainless steel folding handles have a simple and elegant design and can be used in many ways.

The HR-110S recessed grips can only be mounted vertically. They are not suitable for use with floor hatches or overhead hatches.

The high quality HR-110S stainless steel folding handles are ideal for:

  • inspection flap
  • inspection door
  • maintenance door
  • humid environment
  • Ship
  • Caravan
  • maintenance opening
  • cleaning flap

Material:

The HR-110S stainless steel folding handles are made of high quality SUS304 stainless steel.

They are corrosion resistant and rustproof.

Surface:

  • Satin matt

Assembly:

  • The stainless steel folding handles HR-110S are for recessing
  • It is attached using the included screws (3.5 × 25 mm)
  • The fastening screws are also made of stainless steel
  • A cut-out measuring 64.5 x 18 mm and at least 42.5 mm deep must be made on the door for installation
  • Please make sure that the upper and lower sides are positioned correctly during assembly

Features:

  • Weight: 59g
  • Load capacity (load capacity): 98 N (10 kp)
  • Size: 110mm (4.4″)
  • Shape: rectangular
  • Unique design
  • Made of stainless steel
  • stainless
  • Corrosion resistant
  • High quality
  • Material Thickness: 1.5mm

Dimensions:

For further dimensions and details see technical drawing .

  • Stainless steel folding handle height: 110 mm (4-11/32″)
  • Width: 24mm (30/32″)
  • Distance between mounting holes: 94 mm (3-22/32″)
  • Size of grip area: 64 mm (2-17/32″)
blank

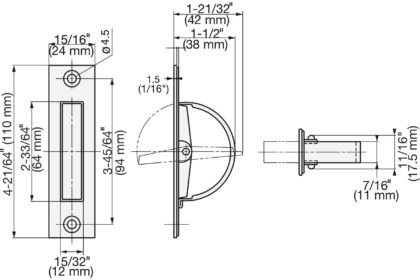

Sugatsune SUS304 stainless steel folding handle, HR-110S (110 mm), satin matte. Technical drawing



Included in delivery:

  • 1 piece stainless steel folding handle HR-110S made of stainless steel SUS304 (V2A)
  • 2 mounting screws 3.5 × 25 mm made of stainless steel

Manufacturer’s reference number:

  • Article number: 100-012-615
  • Item name: HR-110S
  • EAN number: 4510932711647

Manufacturer: SUGATSUNE / LAMP® (Japan)

SUGATSUNE, The manufacturer of the brand LAMP®
