Stainless Steel Ring Handle SUS304, 30.5 mm (1-3/16″), SD-30S. Stainless steel ring handle made of stainless steel V2A, satin matt, for stainless steel kitchen, bathroom furniture, medical area, humid environment, ship, motorhome, by Sugatsune / LAMP® (Japan)

Description

Stainless steel ring handle made of stainless steel V2A (SUS304 or 1.4301), 30.5 mm (1-3/16″), SD-30S

Application:



Stainless steel ring handle made of stainless steel V2A, satin matt, for stainless steel kitchen, bathroom furniture, medical area, damp environment, ship, motorhome.

The exclusive stainless steel ring handles SD-30S have a simple and elegant design and can be used in many ways.

They can be mounted both horizontally and vertically.

The flat, round shape is comfortable to hold and reduces the risk of snagging.

The high-quality SD-30S stainless steel ring handles are ideal for:

• stainless steel kitchen
• bathroom furniture
• Medical
• humid environment
• Ship
• Motorhome
• Cruise ship
• Yacht
• outdoor area
• bathroom
• Sauna
• laboratory equipment
• outdoor furniture
• restaurant interior

Material:

The stainless steel ring handles SD-30S are made of solid high-quality stainless steel SUS304.

In addition, the ring handle is ideal for use in swimming pools, shipbuilding, etc.

Surface:

• Satin matt

Assembly:

• The stainless steel ring handles SD-30S are for screwing
• It is attached using the included screws (M4 x 25 mm)
• The fastening screws are also made of stainless steel
• For assembly, two holes must be drilled for the screws with a spacing of 21 mm (13/16″)

Features:

• Weight: 22 g
• Size: 30.5 mm (1-3/16)
• Shape: round
• Unique design
• Made of stainless steel
• stainless
• Corrosion resistant
• High quality
• Material thickness: 6.5 mm

Dimensions:

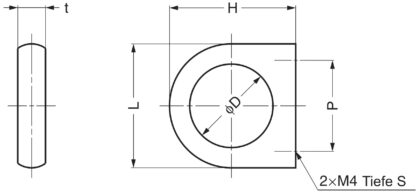

For more dimensions and details , see technical drawing.

• Size of stainless steel ring handle (L): 30.5 mm (1-3/16″)
• Width (H): 31.5 mm (1-1/4″)
• Material thickness (t): 6.5 mm (1/4″)
• Diameter of Grip Area (D): ⌀20.5 mm (13/16″)
• Distance between mounting holes (P): 21 mm (13/16″)
• Depth of mounting holes (S): 6 mm (1/4″)



Included in delivery:

• 1 piece stainless steel ring handle SD-30S made of stainless steel SUS304 (V2A or 1.4301)
• 2 pcs fastening screws M4 x 25 mm made of stainless steel

Manufacturer’s reference number:

• Item number: 100-015-020
• Item number: SD-30S
• EAN number: 4510932011280

Manufacturer: SUGATSUNE / LAMP® (Japan)
