Description

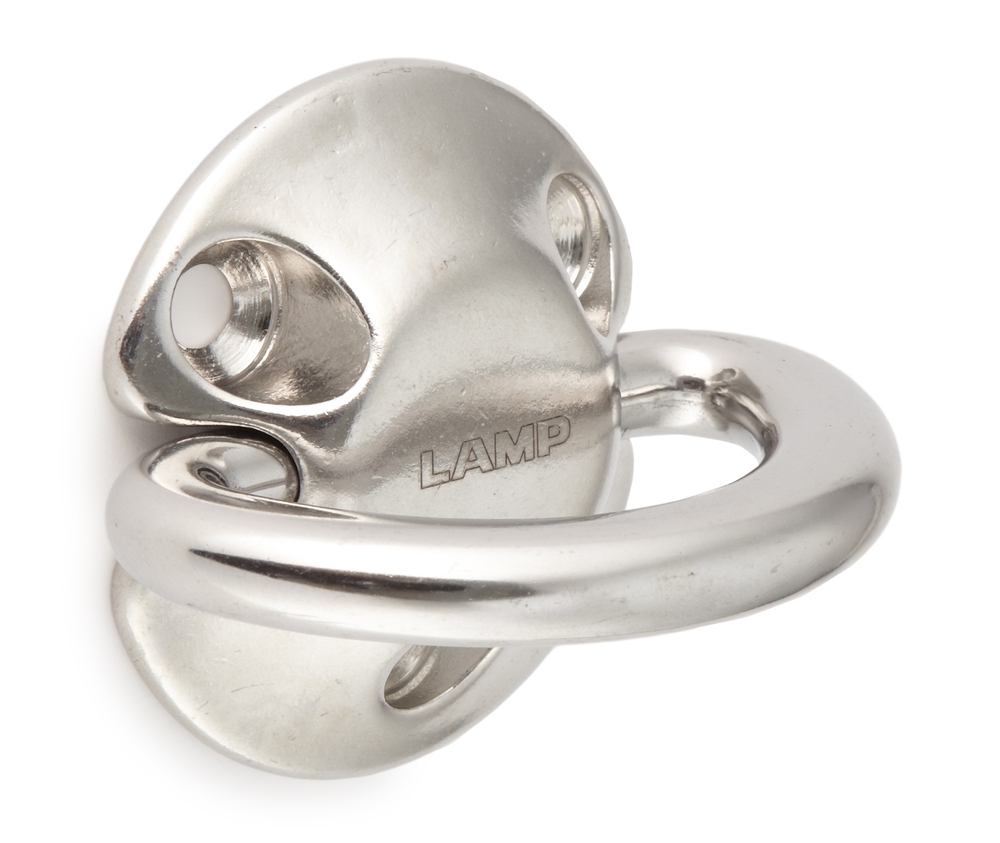

Folding cover suction made of high-quality stainless steel (V4A), with damping, surface: glossy polished, EY-R60
Application:
Noiseless folding padeye made of V4A for shipbuilding, yachts, loops stops, outdoor, humid environment, harsh environment and much more.
The EY-R60 folding deck vacuums have a soft-motion function in the hinge. It has a constant torque that prevents rattling on the deck.
The EY-R60 folding padeye is perfect for the seat belt or safety leash, it can be easily folded up if necessary.
The EY-R60 folding deck suction is the optimal solution for attachment points.
The folding function of the folding Padeyes EY-R60 helps to keep the deck and aisles clear.
You can open these hinged deck eyes at any time and attach a snap block or fender. Otherwise, they are folded safely and flat on the deck.
The base with three mounting screws is also ideal for heavy loads.
The high-quality EY-R60 folding deck suckers have a simple and robust design and are ideal for, among other things:
- Cordage Stops
- Stretch rope
- Gripes
- Hole Point
- Lashing
- Lifting Points
- Fender
- Leash
- Shipbuilding
- Yachts
- Loops Stops
- Outdoor area
- humid environment
- harsh environment
Material:
- The EY-R60 folding deck suction cups are made of high-quality stainless steel (V4A)
- SUS316 stainless steel (also known as V4A) is a stainless steel with excellent corrosion resistance
- Due to their resistance to chlorine-containing substances, fittings made of SUS316 stainless steel are used for use near the coast and are expressly recommended
Surface:
- Shiny polished
Assembly:
- Fastening is done using the screws included in the scope of delivery (countersunk screw M5 × 16 mm)
- The fastening screws are also made of stainless steel
- The EY-R60 folding deck sucker has three mounting holes with the spacing horizontally (P1) 35 mm (1-3/8″) and vertically (P2) 30 mm (1-3/16″)
- The diameter of the mounting holes is ⌀6.6 mm (17/64″)
Features:
- Weight: 202 g
- Load capacity (load capacity): 7840 N (800 kp)
- Size: 70 mm (2.8″)
- high-quality
- stable
- Shiny polished
- weatherproof
- Stainless (corrosion-free)
- high brand quality from Sugatsune / LAMP®

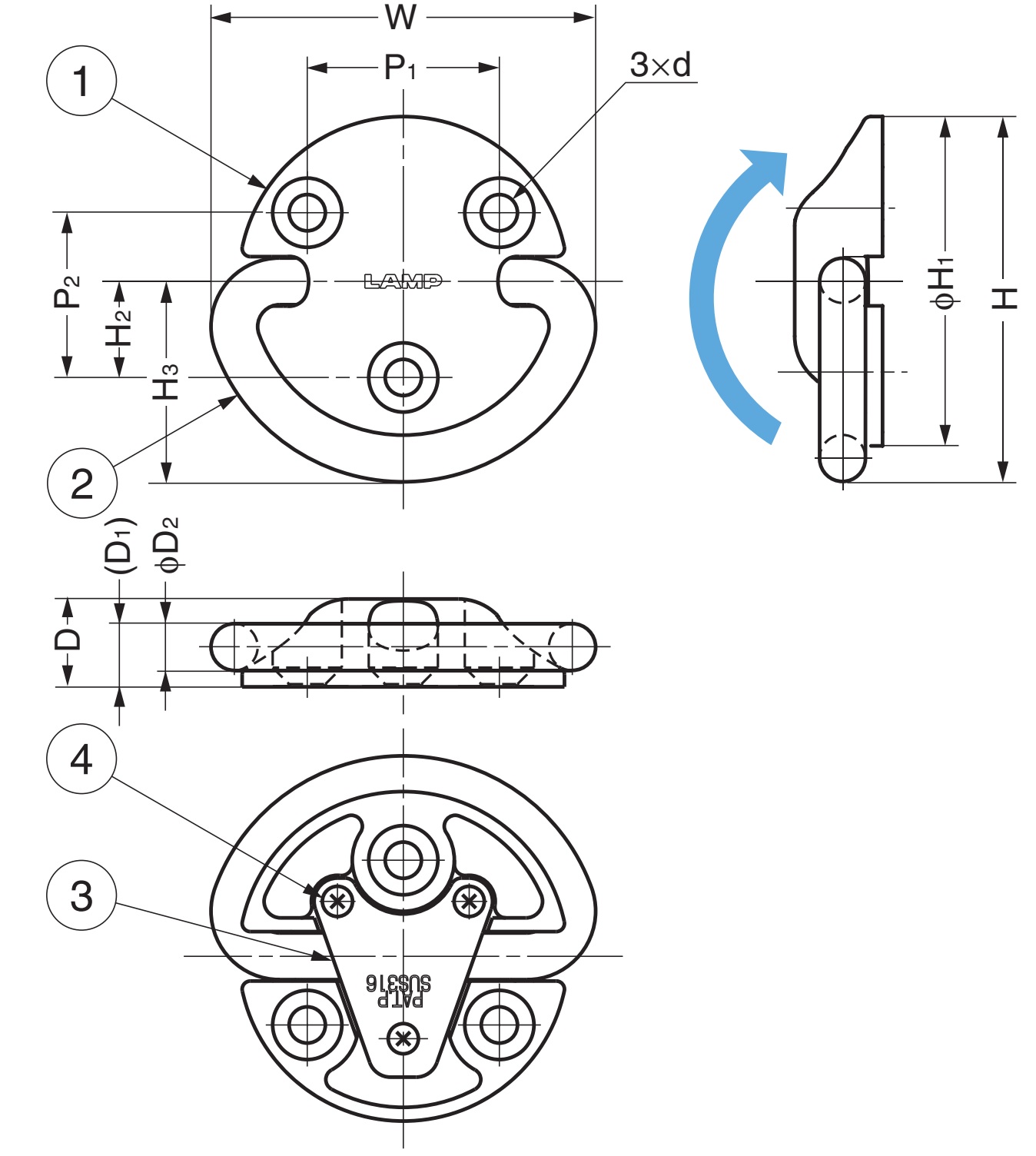

For more dimensions and details, see technical drawing.
The dimensions:
- Width of the folding padeye (W): 70 mm (2-3/4″)
- Length (H): 66.5 mm (2-5/8″)
- Height (D): 16 mm (5/8″)
- Shackle material thickness (⌀D2): ⌀8.5 mm (21/64″)

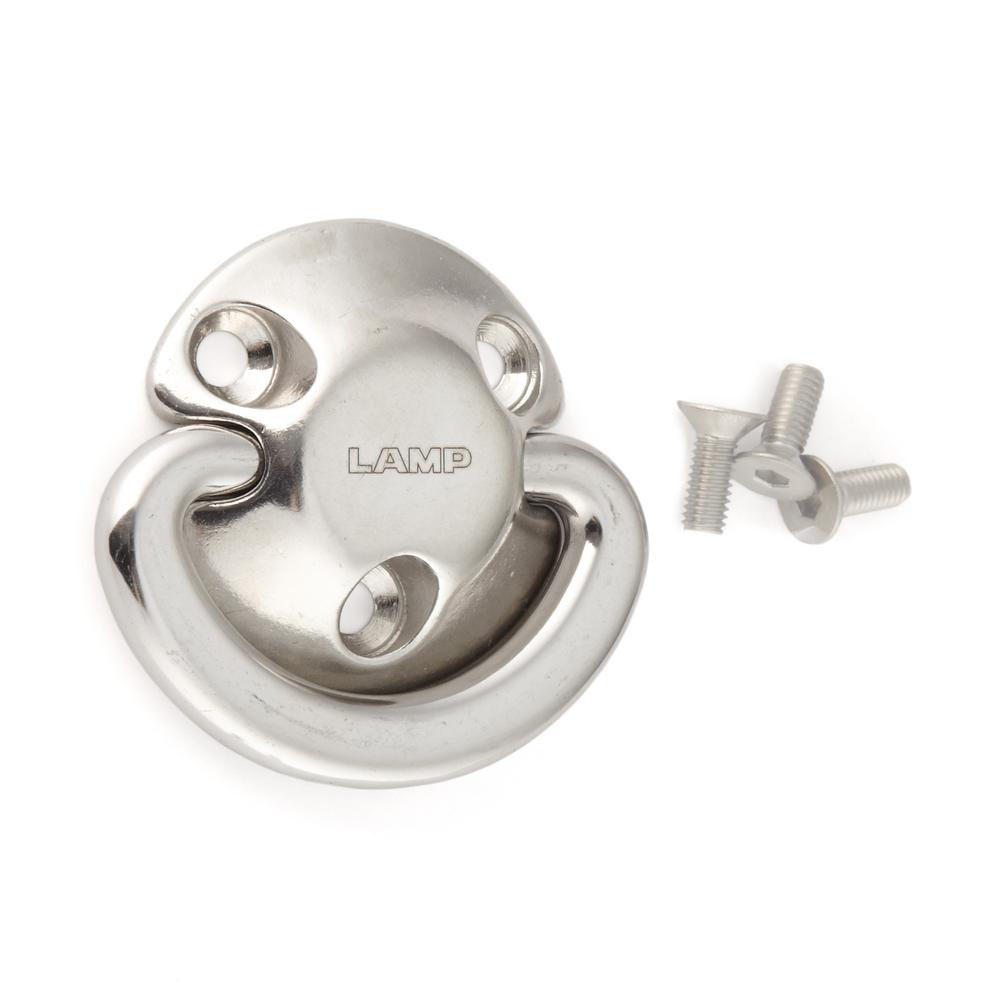

Included in delivery:
- 1 piece folding deck suction EY-R60 made of high-quality stainless steel, polished to a gloss finish
- 3 pcs countersunk screw M5 × 16 mm made of stainless steel
Watch product video:
Manufacturer’s reference number:
- Article ID: 110-012-543
- Item number: EY-R60
- EAN number: 4510932013055
Manufacturer: Sugatsune / LAMP® (Japan)
