Description

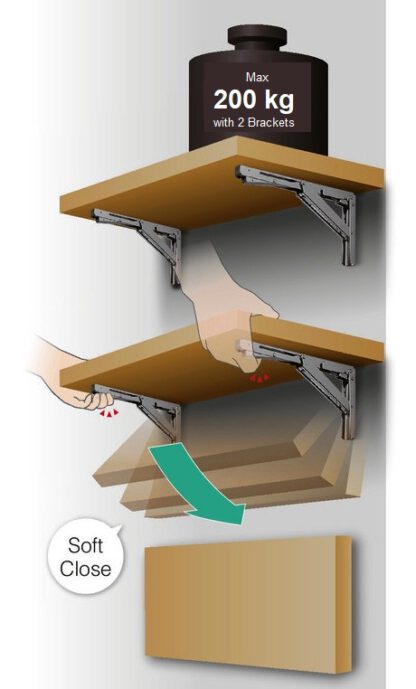

High-quality heavy-duty folding console with stainless steel damper with increased payload up to 200 kg
Application:
These high-quality heavy-duty folding table supports made of solid stainless steel are ideally suited for damp and harsh environments and can be used in many ways.
The folding consoles can be used in homes, offices, restaurants, hotels, etc.
One of the possible applications is the work surface extension in the kitchen or table extension.
Also, they can be perfectly used for the interior of motor homes, caravans, boats, yachts and trains.
The flap supports are designed for hard use environments, but thanks to their classic industrial look they are also perfect for modern interiors.
These EB-317-DA folding table holders are also very suitable for use in tiny houses or micro apartments to flexibly design space as required.
A special feature of these flap brackets is that the flap support and flap hinge are combined in one fitting.
The built-in soft-close damper ensures that the flap closes gently. For lighter flaps, you can install a flap support without dampers.
When the flap is folded, it is locked in place by pressing on the surface if necessary. Thus, the folding table in the caravan or boat remains in the closed position even while driving, does not wobble and does not produce noise.
When the folding table holder is opened, it automatically locks in the upper position and can be loaded.
To fold the folding table back together, both levers on the left and right must be operated simultaneously. This ensures that the flap support is not accidentally folded.
The release lever of the folding angles is extra long to facilitate gripping.
The folding brackets are made of corrosion-resistant stainless steel.
The surfaces are elaborately finished, so the fittings look very high quality.
Assembly:
Mounting is done with screws.
The maximum load can be achieved by distributing the load so that the center of gravity is in the middle (
s. Fig.
).
If the center of gravity of the flap is at the edge of the folding table holder, the load capacity is 100 kg.
Attention: the wall must be suitable to bear the required load.
The rear wall of the folding brackets is rounded so that they can be mounted not only on straight surfaces but also on tubes (Ø25 mm).

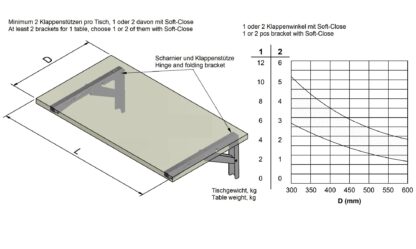

From the
Picture below
you can see when one and when two dampers are needed.
If the flap is narrow, the flap table holders can alternatively be mounted in reverse.
In this case, the longer side is mounted on the wall and the shorter side is used for the folding table or shelf.
This has no negative effect on the load (
s. Fig.
).
Features:
- Load capacity in the middle: 980 N (100 kp) for 1 folding angle
- Weight: 795 g
- Longer release lever
- Ambient temperature: from -30°C to +120°C
- Endurance test: 50,000 cycles passed
Included in delivery:
- 1 piece stainless steel folding table support
Material:
- Made of high quality stainless steel SUS304 (AISI304, V2A)
- Plastic (PA) cover
Surface:
- Stainless steel electric polished
Dimensions:
- Length: 317 mm
- Height: 171 mm
- Width: 36 mm
- Radius of the rear panel: Ø25 mm

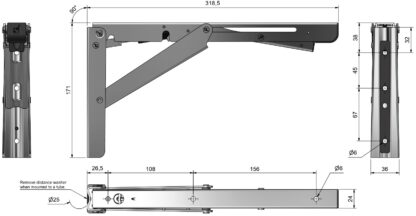

For dimensions see technical drawing (mm):
Watch product video:
Manufacturer’s reference number:
- Item number: 120-049-238, 907265
- Title: EB-317-DA
Manufacturer: ROCA Industry (Sweden)
Distributors: SUGATSUNE / LAMP® (Japan)
