Description
Stainless steel folding handle made of stainless steel V2A (SUS304) ST-115
Application:
Stainless steel folding handle made of stainless steel V2A, satin matt, for ceiling door, inspection flap, damp environment, ship, caravan.
The ST-115 stainless steel folding handles have a simple and elegant design and can be used in many ways.
The high quality ST-115 stainless steel folding handles are ideal for:
- ceiling door
- inspection flap
- humid environment
- Ship
- Caravan
- ceiling hatch
- ceiling flap
- ceiling opening
- attic hatch
- inspection door
- maintenance door
- cleaning flap
- maintenance opening
Material:
The ST-115 stainless steel folding handles are made of high quality SUS304 stainless steel.
They are corrosion resistant and rustproof.
Surface:
- Satin matt
Assembly:
- The stainless steel folding handles ST-115 are for recessing
- It is attached using the included screws (3.5 × 25 mm)
- The fastening screws are also made of stainless steel

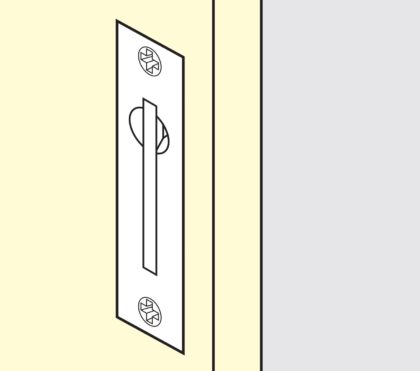

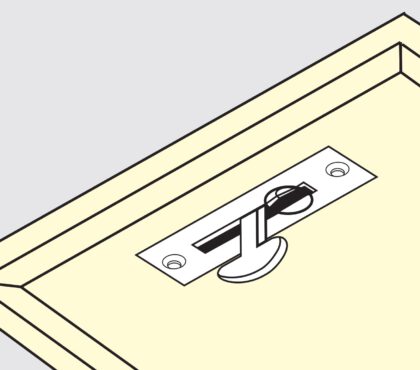

- A cut-out measuring 86.7 x 20.5 mm and at least 42.5 mm deep must be made on the door for installation (see installation drawing for further details)
Features:
- Weight: 102g
- Size: 115mm (4.6″)
- Shape: rectangular
- Unique design
- Made of stainless steel
- stainless
- Corrosion resistant
- High quality
- Material thickness: 4 mm (5/32″)
Dimensions:

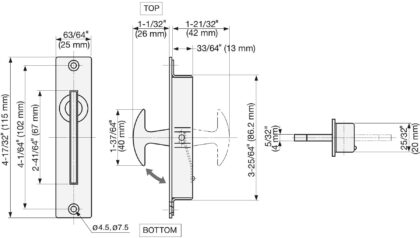

For further dimensions and details see technical drawing .
- Stainless steel folding handle height: 115 mm (4-17/32″)
- Width: 25mm (31/32″)
- Distance between mounting holes: 102mm (4-1/32″)
Included in delivery:
- 1 piece stainless steel folding handle ST-115 made of stainless steel SUS304 (V2A)
- 2 mounting screws 3.5 × 25 mm made of stainless steel
Manufacturer’s reference number:
- Article number: 100-010-241
- Item name: ST-115
- EAN number: 4510932000024
Manufacturer: SUGATSUNE / LAMP® (Japan)
